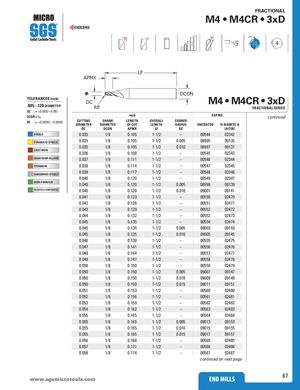

30° POS 15° 4
| APMX | LF | DCON | |||||
| DC | M | 4 • M4 | CR • 3xD | ||||
| RE | FRACTIONAL SERIES | ||||||
| inch | EDP | NO. | continued | ||||
| CUTTING DIAMETER DC | SHANK DIAMETER DCON | LENGTH OF CUT APMX | OVERALL LENGTH LF | CORNER RADIUS RE | UNCOATED | TI-NAMITE-A (AlTiN) | |
| 0.035 | 1/8 | 0.105 | 1-1/2 | – | 00544 | 02342 | |
| 0.035 | 1/8 | 0.105 | 1-1/2 | 0.005 | 08995 | 09135 | |
| 0.035 | 1/8 | 0.105 | 1-1/2 | 0.010 | 08997 | 09137 | |
| 0.036 | 1/8 | 0.108 | 1-1/2 | – | 00545 | 02343 | |
| 0.037 | 1/8 | 0.111 | 1-1/2 | – | 00546 | 02344 | |
| 0.038 | 1/8 | 0.114 | 1-1/2 | – | 00547 | 02345 | |
| 0.039 | 1/8 | 0.117 | 1-1/2 | – | 00548 | 02346 | |
| 0.040 | 1/8 | 0.120 | 1-1/2 | – | 00549 | 02347 | |
| 0.040 | 1/8 | 0.120 | 1-1/2 | 0.005 | 08999 | 09139 | |
| 0.040 | 1/8 | 0.120 | 1-1/2 | 0.010 | 09001 | 09141 | |
| 0.041 | 1/8 | 0.123 | 1-1/2 | – | 00550 | 02470 | |
| 0.042 | 1/8 | 0.126 | 1-1/2 | – | 00551 | 02471 | |
| 0.043 | 1/8 | 0.129 | 1-1/2 | – | 00552 | 02472 | |
| 0.044 | 1/8 | 0.132 | 1-1/2 | – | 00553 | 02473 | |
| 0.045 | 1/8 | 0.135 | 1-1/2 | – | 00554 | 02474 | |
| 0.045 | 1/8 | 0.135 | 1-1/2 | 0.005 | 09003 | 09143 | |
| 0.045 | 1/8 | 0.135 | 1-1/2 | 0.010 | 09005 | 09145 | |
| 0.046 | 1/8 | 0.138 | 1-1/2 | – | 00555 | 02475 | |
| 0.047 | 1/8 | 0.141 | 1-1/2 | – | 00556 | 02476 | |
| 0.048 | 1/8 | 0.144 | 1-1/2 | – | 00557 | 02477 | |
| 0.049 | 1/8 | 0.147 | 1-1/2 | – | 00558 | 02478 | |
| 0.050 | 1/8 | 0.150 | 1-1/2 | – | 00559 | 02479 | |
| 0.050 | 1/8 | 0.150 | 1-1/2 | 0.005 | 09007 | 09147 | |
| 0.050 | 1/8 | 0.150 | 1-1/2 | 0.010 | 09009 | 09149 | |
| 0.050 | 1/8 | 0.150 | 1-1/2 | 0.015 | 09011 | 09151 | |
| 0.051 | 1/8 | 0.153 | 1-1/2 | – | 00560 | 02480 | |
| 0.052 | 1/8 | 0.156 | 1-1/2 | – | 00561 | 02481 | |
| 0.053 | 1/8 | 0.159 | 1-1/2 | – | 00562 | 02482 | |
| 0.054 | 1/8 | 0.162 | 1-1/2 | – | 00563 | 02483 | |
| 0.055 | 1/8 | 0.165 | 1-1/2 | – | 00564 | 02484 | |
| 0.055 | 1/8 | 0.165 | 1-1/2 | 0.005 | 09013 | 09153 | |
| 0.055 | 1/8 | 0.165 | 1-1/2 | 0.010 | 09015 | 09155 | |
| 0.055 | 1/8 | 0.165 | 1-1/2 | 0.015 | 09017 | 09157 | |
| 0.056 | 1/8 | 0.168 | 1-1/2 | – | 00565 | 02485 | |
| 0.057 | 1/8 | 0.171 | 1-1/2 | – | 00566 | 02486 | |
| 0.058 | 1/8 | 0.174 | 1-1/2 | – | 00567 | 02487 |
TOLERANCES (inch)
DC = +0.000/–0.001 6
STAINLESS STEELS
TITANIUM HARDENED STEELS
