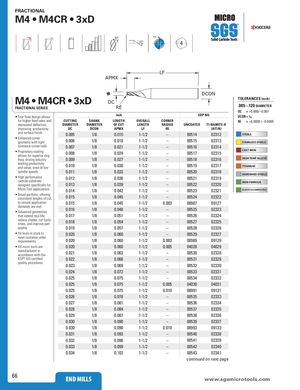

30° POS 15° 4
| M4 • M4C | R • 3 | xD | APMX DC | LF | DCON | TOLERANCES(inc | ||
| FRACTIONAL SERIES | RE | .005–.120DIAME DC =+0.000/–0.00 | ||||||
| • Four flute design allows | inch | E | DP NO. | DCON =h6 | ||||
| for higher feed rates and decreased deflection, improving productivity | CUTTING DIAMETER DC | SHANK DIAMETER DCON | LENGTH OF CUT APMX | OVERALL LENGTH LF | CORNER RADIUS RE | UNCOATED | TI-NAMITE-A (AlTiN) | RE =+0.0000 / –0. |
| and surface finish. | 0.005 | 1/8 | 0.015 | 1-1/2 | – | 00514 | 02312 | STEELS |
| • Enhanced corner geometry with tight | 0.006 | 1/8 | 0.018 | 1-1/2 | – | 00515 | 02313 | STAINLESS STEELS |
| tolerance corner radii | 0.007 | 1/8 | 0.021 | 1-1/2 | – | 00516 | 02314 | |
| • Proprietary coating allows for superior chip | 0.008 | 1/8 | 0.024 | 1-1/2 | – | 00517 | 02315 | CAST IRON |
| flow, driving industry | 0.009 | 1/8 | 0.027 | 1-1/2 | – | 00518 | 02316 | HIGH TEMP ALLOYS |
| leading productivity and value, even at low | 0.010 | 1/8 | 0.030 | 1-1/2 | – | 00519 | 02317 | TITANIUM |
| spindle speeds. | 0.011 | 1/8 | 0.033 | 1-1/2 | – | 00520 | 02318 | HARDENED STEELS |
| • High performance carbide substrate | 0.012 | 1/8 | 0.036 | 1-1/2 | – | 00521 | 02319 | |
| designed specifically for | 0.013 | 1/8 | 0.039 | 1-1/2 | – | 00522 | 02320 | NON-FERROUS |
| Micro Tool applications. | 0.014 | 1/8 | 0.042 | 1-1/2 | – | 00523 | 02321 | PLASTICS/COMPOSITES |
| • Broad portfolio, offering consistent lengths of cut, | 0.015 | 1/8 | 0.045 | 1-1/2 | – | 00524 | 02322 | |
| to ensure application | 0.015 | 1/8 | 0.045 | 1-1/2 | 0.003 | 08987 | 09127 | |
| demands are met. • Advanced geometries | 0.016 | 1/8 | 0.048 | 1-1/2 | – | 00525 | 02323 | |
| that extend tool life, | 0.017 | 1/8 | 0.051 | 1-1/2 | – | 00526 | 02324 | |
| reduce chatter, cut cycle times and improve part | 0.018 | 1/8 | 0.054 | 1-1/2 | – | 00527 | 02325 | |
| , quality. | 0.019 | 1/8 | 0.057 | 1-1/2 | – | 00528 | 02326 | |
| • All tools in stock to ttd | 0.020 | 1/8 | 0.060 | 1-1/2 | – | 00529 | 02327 | |
| mee cusomer orer requirements. | 0.020 | 1/8 | 0.060 | 1-1/2 | 0.003 | 08989 | 09129 | |
| • All micro tools are | 0.020 | 1/8 | 0.060 | 1-1/2 | 0.005 | 04028 | 04029 | |
| manufactured in accordance with the | 0.021 | 1/8 | 0.063 | 1-1/2 | – | 00530 | 02328 | |
| KSPT ISO certified | 0.022 | 1/8 | 0.066 | 1-1/2 | – | 00531 | 02329 | |
| quality procedures. | 0.023 | 1/8 | 0.069 | 1-1/2 | – | 00532 | 02330 | |
| 0.024 | 1/8 | 0.072 | 1-1/2 | – | 00533 | 02331 | ||
| 0.025 | 1/8 | 0.075 | 1-1/2 | – | 00534 | 02332 | ||
| 0.025 | 1/8 | 0.075 | 1-1/2 | 0.005 | 04030 | 04031 | ||
| 0.025 | 1/8 | 0.075 | 1-1/2 | 0.010 | 08991 | 09131 | ||
| 0.026 | 1/8 | 0.078 | 1-1/2 | – | 00535 | 02333 | ||
| 0.027 | 1/8 | 0.081 | 1-1/2 | – | 00536 | 02334 | ||
| 0.028 | 1/8 | 0.084 | 1-1/2 | – | 00537 | 02335 | ||
| 0.029 | 1/8 | 0.087 | 1-1/2 | – | 00538 | 02336 | ||
| 0.030 | 1/8 | 0.090 | 1-1/2 | – | 00539 | 02337 | ||
| 0.030 | 1/8 | 0.090 | 1-1/2 | 0.010 | 08993 | 09133 | ||
| 0.031 | 1/8 | 0.093 | 1-1/2 | – | 00540 | 02338 | ||
| 0.032 | 1/8 | 0.096 | 1-1/2 | – | 00541 | 02339 | ||
| 0.033 | 1/8 | 0.099 | 1-1/2 | – | 00542 | 02340 | ||
| 0.034 | 1/8 | 0.102 | 1-1/2 | – | 00543 | 02341 |
