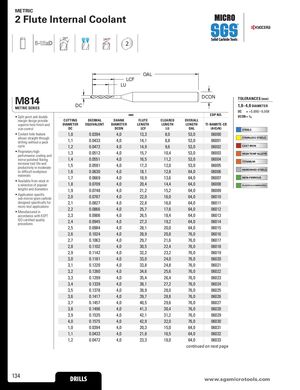

2 Flute Internal Coolant
28° 140°
2
OAL LCF LU
| M814 | TOLERANCES(mm) | |||||||
| METRIC SERIES | DC | 1,0–4,0DIAMETER DC =+0000/–0008 | ||||||
| • Slit oint and double | m | m | EDP NO. | ,, DCON =h6 | ||||
| p p margin design provide superior hole finish and size control | CUTTING DIAMETER DC | DECIMAL EQUIVALENT | SHANK DIAMETER DCON | FLUTE LENGTH LCF | CLEARED LENGTH LU | OVERALL LENGTH OAL | TI-NAMITE-CR (AlCrN) | STEELS |
| • Coolant hole feature ll ih hh | 1,0 | 0.0394 | 4,0 | 13,3 | 8,0 | 53,0 | 06000 | STAINLESS STEELS |
| aows stragt troug drilling without a peck | 1,1 | 0.0433 | 4,0 | 14,1 | 8,8 | 53,0 | 06001 | |
| cycle | 1,2 | 0.0472 | 4,0 | 14,9 | 9,6 | 53,0 | 06002 | CAST IRON |
| • Proprietary high- performance coating and | 1,3 | 0.0512 | 4,0 | 15,7 | 10,4 | 53,0 | 06003 | HIGH TEMP ALLOYS |
| mirror polished fluting | 1,4 | 0.0551 | 4,0 | 16,5 | 11,2 | 53,0 | 06004 | TITANIUM |
| increase tool life and productivity in moderate- | 1,5 | 0.0591 | 4,0 | 17,3 | 12,0 | 53,0 | 06005 | |
| to-difficult workpiece | 1,6 | 0.0630 | 4,0 | 18,1 | 12,8 | 64,0 | 06006 | HARDENED STEELS |
| materials • Available from stock in | 1,7 | 0.0669 | 4,0 | 18,9 | 13,6 | 64,0 | 06007 | NON-FERROUS |
| a selection of popular | 1,8 | 0.0709 | 4,0 | 20,4 | 14,4 | 64,0 | 06008 | PLASTICS/COMPOSITES |
| lengths and diameters | 1,9 | 0.0748 | 4,0 | 21,2 | 15,2 | 64,0 | 06009 | |
| • Application specific sub-micron grain carbide | 2,0 | 0.0787 | 4,0 | 22,0 | 16,0 | 64,0 | 06010 | |
| designed specifically for | 2,1 | 0.0827 | 4,0 | 22,8 | 16,8 | 64,0 | 06011 | |
| micro-tool applications • Manufactured in | 2,2 | 0.0866 | 4,0 | 25,7 | 17,6 | 64,0 | 06012 | |
| accordance with KSPT | 2,3 | 0.0906 | 4,0 | 26,5 | 18,4 | 64,0 | 06013 | |
| ISO certified quality procedures | 2,4 | 0.0945 | 4,0 | 27,3 | 19,2 | 64,0 | 06014 | |
| 2,5 | 0.0984 | 4,0 | 28,1 | 20,0 | 64,0 | 06015 | ||
| 2,6 | 0.1024 | 4,0 | 28,9 | 20,8 | 76,0 | 06016 | ||
| 2,7 | 0.1063 | 4,0 | 29,7 | 21,6 | 76,0 | 06017 | ||
| 2,8 | 0.1102 | 4,0 | 30,5 | 22,4 | 76,0 | 06018 | ||
| 2,9 | 0.1142 | 4,0 | 32,2 | 23,2 | 76,0 | 06019 | ||
| 3,0 | 0.1181 | 4,0 | 33,0 | 24,0 | 76,0 | 06020 | ||
| 3,1 | 0.1220 | 4,0 | 33,8 | 24,8 | 76,0 | 06021 | ||
| 3,2 | 0.1260 | 4,0 | 34,6 | 25,6 | 76,0 | 06022 | ||
| 3,3 | 0.1299 | 4,0 | 35,4 | 26,4 | 76,0 | 06023 | ||
| 3,4 | 0.1339 | 4,0 | 38,1 | 27,2 | 76,0 | 06024 | ||
| 3,5 | 0.1378 | 4,0 | 38,9 | 28,0 | 76,0 | 06025 | ||
| 3,6 | 0.1417 | 4,0 | 39,7 | 28,8 | 76,0 | 06026 | ||
| 3,7 | 0.1457 | 4,0 | 40,5 | 29,6 | 76,0 | 06027 | ||
| 3,8 | 0.1496 | 4,0 | 41,3 | 30,4 | 76,0 | 06028 | ||
| 3,9 | 0.1535 | 4,0 | 42,1 | 31,2 | 76,0 | 06029 | ||
| 4,0 | 0.1575 | 4,0 | 42,9 | 32,0 | 76,0 | 06030 | ||
| 1,0 | 0.0394 | 4,0 | 20,3 | 15,0 | 64,0 | 06031 | ||
| 1,1 | 0.0433 | 4,0 | 21,8 | 16,5 | 64,0 | 06032 | ||
| 1,2 | 0.0472 | 4,0 | 23,3 | 18,0 | 64,0 continue | 06033 d on next page |
