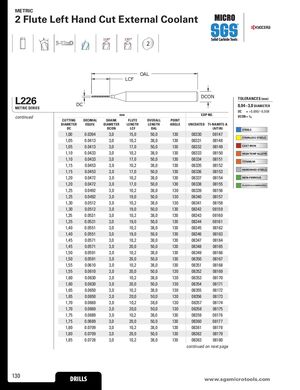

METRIC 2 Flute Left Hand Cut External Coolant 118° 130° 2 OAL LCF L226 DCMETRIC SERIES DCON TOLERANCES (mm)0,04–3,0 DIAMETER DC = +0,000/–0,008 continued mm EDP NO. DCON = h6 CUTTING DECIMAL SHANK FLUTE OVERALL POINT DIAMETER EQUIV. DIAMETER LENGTH LENGTH ANGLE UNCOATED TI-NAMITE-A DC DCON LCF OAL (AlTiN) STEELS 1,00 0.0394 3,0 15,0 50,0 130 08330 08147 1,05 0.0413 3,0 10,2 38,0 130 08331 08148 STAINLESS STEELS 1,05 0.0413 3,0 17,0 50,0 130 08332 08149 CAST IRON 1,10 0.0433 3,0 10,2 38,0 130 08333 08150 HIGH TEMP ALLOYS 1,10 0.0433 3,0 17,0 50,0 130 08334 08151 TITANIUM 1,15 0.0453 3,0 10,2 38,0 130 08335 08152 1,15 0.0453 3,0 17,0 50,0 130 08336 08153 HARDENED STEELS 1,20 0.0472 3,0 10,2 38,0 130 08337 08154 NON-FERROUS 1,20 0.0472 3,0 17,0 50,0 130 08338 08155 PLASTICS/COMPOSITES 1,25 0.0492 3,0 10,2 38,0 130 08339 08156 1,25 0.0492 3,0 19,0 50,0 130 08340 08157 1,30 0.0512 3,0 10,2 38,0 130 08341 08158 1,30 0.0512 3,0 19,0 50,0 130 08342 08159 1,35 0.0531 3,0 10,2 38,0 130 08343 08160 1,35 0.0531 3,0 19,0 50,0 130 08344 08161 1,40 0.0551 3,0 10,2 38,0 130 08345 08162 1,40 0.0551 3,0 19,0 50,0 130 08346 08163 1,45 0.0571 3,0 10,2 38,0 130 08347 08164 1,45 0.0571 3,0 20,0 50,0 130 08348 08165 1,50 0.0591 3,0 10,2 38,0 130 08349 08166 1,50 0.0591 3,0 20,0 50,0 130 08350 08167 1,55 0.0610 3,0 10,2 38,0 130 08351 08168 1,55 0.0610 3,0 20,0 50,0 130 08352 08169 1,60 0.0630 3,0 10,2 38,0 130 08353 08170 1,60 0.0630 3,0 20,0 50,0 130 08354 08171 1,65 0.0650 3,0 10,2 38,0 130 08355 08172 1,65 0.0650 3,0 20,0 50,0 130 08356 08173 1,70 0.0669 3,0 10,2 38,0 130 08357 08174 1,70 0.0669 3,0 20,0 50,0 130 08358 08175 1,75 0.0689 3,0 10,2 38,0 130 08359 08176 1,75 0.0689 3,0 20,0 50,0 130 08360 08177 1,80 0.0709 3,0 10,2 38,0 130 08361 08178 1,80 0.0709 3,0 20,0 50,0 130 08362 08179 1,85 0.0728 3,0 10,2 38,0 130 08363 08180 continued on next page 130 DRILLS wwwD.sRgILsLmSicrotools.com
