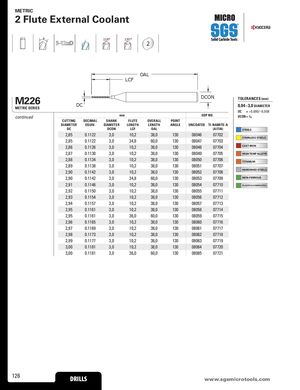

Каталог SGS микро инструмент 2021 - страница 126

METRIC 2 Flute External Coolant 118° 130° 2 OAL LCF M226METRIC SERIES DC DCON TOLERANCES (mm)0,04–3,0 DIAMETER DC = +0,000/–0,008 continued mm EDP NO. DCON = h6 CUTTING DECIMAL SHANK FLUTE OVERALL POINT DIAMETER EQUIV. DIAMETER LENGTH LENGTH ANGLE UNCOATED TI-NAMITE-A DC DCON LCF OAL (AlTiN) STEELS 2,85 0.1122 3,0 10,2 38,0 130 08046 07702 STAINLESS STEELS 2,85 0.1122 3,0 34,8 60,0 130 08047 07703 2,86 0.1126 3,0 10,2 38,0 130 08048 07704 CAST IRON 2,87 0.1130 3,0 10,2 38,0 130 08049 07705 HIGH TEMP ALLOYS 2,88 0.1134 3,0 10,2 38,0 130 08050 07706 TITANIUM 2,89 0.1138 3,0 10,2 38,0 130 08051 07707 2,90 0.1142 3,0 10,2 38,0 130 08052 07708 HARDENED STEELS 2,90 0.1142 3,0 34,8 60,0 130 08053 07709 NON-FERROUS 2,91 0.1146 3,0 10,2 38,0 130 08054 07710 PLASTICS/COMPOSITES 2,92 0.1150 3,0 10,2 38,0 130 08055 07711 2,93 0.1154 3,0 10,2 38,0 130 08056 07712 2,94 0.1157 3,0 10,2 38,0 130 08057 07713 2,95 0.1161 3,0 10,2 38,0 130 08058 07714 2,95 0.1161 3,0 36,0 60,0 130 08059 07715 2,96 0.1165 3,0 10,2 38,0 130 08060 07716 2,97 0.1169 3,0 10,2 38,0 130 08061 07717 2,98 0.1173 3,0 10,2 38,0 130 08062 07718 2,99 0.1177 3,0 10,2 38,0 130 08063 07719 3,00 0.1181 3,0 10,2 38,0 130 08064 07720 3,00 0.1181 3,0 36,0 60,0 130 08065 07721 126 DRILLS wwwD.sRgILsLmSicrotools.com
