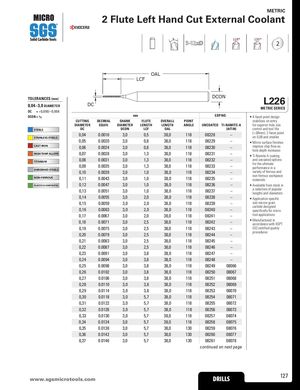

Каталог SGS микро инструмент 2021 - страница 127
Навигация
Каталог SGS фрезы для алюминия S-carb
Каталог SGS монолитный инструмент из композитных материалов
Каталог SGS инструмент для обработки алюминия
Общий каталог SGS 2018
Общий каталог SGS 2021
Каталог SGS фрезы для труднообрабатываемых материалов Series 33
118° 130° 2
| DC | OA LCF | L | DCO | N | L226 METRIC SERIES | |||
| m | m | EDP | NO. | • 4-facet point design | ||||
| CUTTING DIAMETER DC | DECIMAL EQUIV. | SHANK DIAMETER DCON | FLUTE LENGTH LCF | OVERALL LENGTH OAL | POINT ANGLE | UNCOATED | TI-NAMITE-A (AlTiN) | stabilizes on entry for superior hole size control and tool life |
| 0,04 | 0.0016 | 3,0 | 0,5 | 38,0 | 118 | 08228 | – | (>.08mm). 2-facet point on 0,08 and smaller. |
| 0,05 | 0.0020 | 3,0 | 0,8 | 38,0 | 118 | 08229 | – | • Mirror surface finishes |
| 0,06 | 0.0024 | 3,0 | 0,8 | 38,0 | 118 | 08230 | – | improve chip flow as |
| 0,07 | 0.0028 | 3,0 | 1,3 | 38,0 | 118 | 08231 | – | hole depth increases • Ti-Namite A coating |
| 0,08 | 0.0031 | 3,0 | 1,3 | 38,0 | 118 | 08232 | – | and uncoated options |
| 0,09 | 0.0035 | 3,0 | 1,3 | 38,0 | 118 | 08233 | – | for the ultimate performance in a |
| 0,10 | 0.0039 | 3,0 | 1,0 | 38,0 | 118 | 08234 | – | variety of ferrous and |
| 0,11 | 0.0043 | 3,0 | 1,0 | 38,0 | 118 | 08235 | – | non-ferrous workpiece materials |
| 0,12 | 0.0047 | 3,0 | 1,0 | 38,0 | 118 | 08236 | – | • Available from stock in |
| 0,13 | 0.0051 | 3,0 | 1,0 | 38,0 | 118 | 08237 | – | a selection of popular lenths and diameters |
| 0,14 | 0.0055 | 3,0 | 2,0 | 38,0 | 118 | 08238 | – | g • Application specific |
| 0,15 | 0.0059 | 3,0 | 2,0 | 38,0 | 118 | 08239 | – | sub-micron grain bid did |
| 0,16 | 0.0063 | 3,0 | 2,0 | 38,0 | 118 | 08240 | – | care esgne specifically for micro- |
| 0,17 | 0.0067 | 3,0 | 2,0 | 38,0 | 118 | 08241 | – | tool applications |
| 0,18 | 0.0071 | 3,0 | 2,5 | 38,0 | 118 | 08242 | – | • Manufactured in accordance with KSPT |
| 0,19 | 0.0075 | 3,0 | 2,5 | 38,0 | 118 | 08243 | – | ISO certified quality |
| 0,20 | 0.0079 | 3,0 | 2,5 | 38,0 | 118 | 08244 | – | procedures |
| 0,21 | 0.0083 | 3,0 | 2,5 | 38,0 | 118 | 08245 | – | |
| 0,22 | 0.0087 | 3,0 | 2,5 | 38,0 | 118 | 08246 | – | |
| 0,23 | 0.0091 | 3,0 | 3,8 | 38,0 | 118 | 08247 | – | |
| 0,24 | 0.0094 | 3,0 | 3,8 | 38,0 | 118 | 08248 | – | |
| 0,25 | 0.0098 | 3,0 | 3,8 | 38,0 | 118 | 08249 | 08066 | |
| 0,26 | 0.0102 | 3,0 | 3,8 | 38,0 | 118 | 08250 | 08067 | |
| 0,27 | 0.0106 | 3,0 | 3,8 | 38,0 | 118 | 08251 | 08068 | |
| 0,28 | 0.0110 | 3,0 | 3,8 | 38,0 | 118 | 08252 | 08069 | |
| 0,29 | 0.0114 | 3,0 | 3,8 | 38,0 | 118 | 08253 | 08070 | |
| 0,30 | 0.0118 | 3,0 | 5,7 | 38,0 | 118 | 08254 | 08071 | |
| 0,31 | 0.0122 | 3,0 | 5,7 | 38,0 | 118 | 08255 | 08072 | |
| 0,32 | 0.0126 | 3,0 | 5,7 | 38,0 | 118 | 08256 | 08073 | |
| 0,33 | 0.0130 | 3,0 | 5,7 | 38,0 | 118 | 08257 | 08074 | |
| 0,34 | 0.0134 | 3,0 | 5,7 | 38,0 | 118 | 08258 | 08075 | |
| 0,35 | 0.0138 | 3,0 | 5,7 | 38,0 | 130 | 08259 | 08076 | |
| 0,36 | 0.0142 | 3,0 | 5,7 | 38,0 | 130 | 08260 | 08077 | |
| 0,37 | 0.0146 | 3,0 | 5,7 | 38,0 | 130 | 08261 | 08078 |
TOLERANCES (mm)
DC = +0,000/–0,008 6
STEELS
PLASTICS/COMPOSITES
continued on next page
