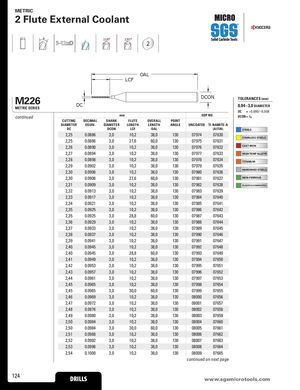

METRIC 2 Flute External Coolant 118° 130° 2 OAL LCF M226METRIC SERIES DC DCON TOLERANCES (mm)0,04–3,0 DIAMETER DC = +0,000/–0,008 continued mm EDP NO. DCON = h6 CUTTING DECIMAL SHANK FLUTE OVERALL POINT DIAMETER EQUIV. DIAMETER LENGTH LENGTH ANGLE UNCOATED TI-NAMITE-A DC DCON LCF OAL (AlTiN) STEELS 2,25 0.0886 3,0 10,2 38,0 130 07974 07630 STAINLESS STEELS 2,25 0.0886 3,0 27,6 60,0 130 07975 07631 2,26 0.0890 3,0 10,2 38,0 130 07976 07632 CAST IRON 2,27 0.0894 3,0 10,2 38,0 130 07977 07633 HIGH TEMP ALLOYS 2,28 0.0898 3,0 10,2 38,0 130 07978 07634 TITANIUM 2,29 0.0902 3,0 10,2 38,0 130 07979 07635 2,30 0.0906 3,0 10,2 38,0 130 07980 07636 HARDENED STEELS 2,30 0.0906 3,0 27,6 60,0 130 07981 07637 NON-FERROUS 2,31 0.0909 3,0 10,2 38,0 130 07982 07638 PLASTICS/COMPOSITES 2,32 0.0913 3,0 10,2 38,0 130 07983 07639 2,33 0.0917 3,0 10,2 38,0 130 07984 07640 2,34 0.0921 3,0 10,2 38,0 130 07985 07641 2,35 0.0925 3,0 10,2 38,0 130 07986 07642 2,35 0.0925 3,0 28,8 60,0 130 07987 07643 2,36 0.0929 3,0 10,2 38,0 130 07988 07644 2,37 0.0933 3,0 10,2 38,0 130 07989 07645 2,38 0.0937 3,0 10,2 38,0 130 07990 07646 2,39 0.0941 3,0 10,2 38,0 130 07991 07647 2,40 0.0945 3,0 10,2 38,0 130 07992 07648 2,40 0.0945 3,0 28,8 60,0 130 07993 07649 2,41 0.0949 3,0 10,2 38,0 130 07994 07650 2,42 0.0953 3,0 10,2 38,0 130 07995 07651 2,43 0.0957 3,0 10,2 38,0 130 07996 07652 2,44 0.0961 3,0 10,2 38,0 130 07997 07653 2,45 0.0965 3,0 10,2 38,0 130 07998 07654 2,45 0.0965 3,0 30,0 60,0 130 07999 07655 2,46 0.0969 3,0 10,2 38,0 130 08000 07656 2,47 0.0972 3,0 10,2 38,0 130 08001 07657 2,48 0.0976 3,0 10,2 38,0 130 08002 07658 2,49 0.0980 3,0 10,2 38,0 130 08003 07659 2,50 0.0984 3,0 10,2 38,0 130 08004 07660 2,50 0.0984 3,0 30,0 60,0 130 08005 07661 2,51 0.0988 3,0 10,2 38,0 130 08006 07662 2,52 0.0992 3,0 10,2 38,0 130 08007 07663 2,53 0.0996 3,0 10,2 38,0 130 08008 07664 2,54 0.1000 3,0 10,2 38,0 130 08009 07665 continued on next page 124 DRILLS wwwD.sRgILsLmSicrotools.com
