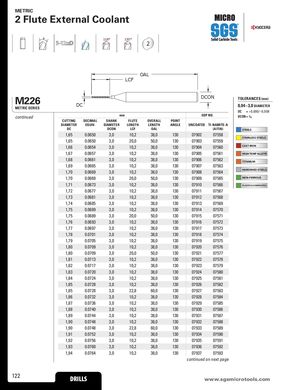

Каталог SGS микро инструмент 2021 - страница 122

METRIC 2 Flute External Coolant 118° 130° 2 OAL LCF M226METRIC SERIES DC DCON TOLERANCES (mm)0,04–3,0 DIAMETER DC = +0,000/–0,008 continued mm EDP NO. DCON = h6 CUTTING DECIMAL SHANK FLUTE OVERALL POINT DIAMETER EQUIV. DIAMETER LENGTH LENGTH ANGLE UNCOATED TI-NAMITE-A DC DCON LCF OAL (AlTiN) STEELS 1,65 0.0650 3,0 10,2 38,0 130 07902 07558 STAINLESS STEELS 1,65 0.0650 3,0 20,0 50,0 130 07903 07559 1,66 0.0654 3,0 10,2 38,0 130 07904 07560 CAST IRON 1,67 0.0657 3,0 10,2 38,0 130 07905 07561 HIGH TEMP ALLOYS 1,68 0.0661 3,0 10,2 38,0 130 07906 07562 TITANIUM 1,69 0.0665 3,0 10,2 38,0 130 07907 07563 1,70 0.0669 3,0 10,2 38,0 130 07908 07564 HARDENED STEELS 1,70 0.0669 3,0 20,0 50,0 130 07909 07565 NON-FERROUS 1,71 0.0673 3,0 10,2 38,0 130 07910 07566 PLASTICS/COMPOSITES 1,72 0.0677 3,0 10,2 38,0 130 07911 07567 1,73 0.0681 3,0 10,2 38,0 130 07912 07568 1,74 0.0685 3,0 10,2 38,0 130 07913 07569 1,75 0.0689 3,0 10,2 38,0 130 07914 07570 1,75 0.0689 3,0 20,0 50,0 130 07915 07571 1,76 0.0693 3,0 10,2 38,0 130 07916 07572 1,77 0.0697 3,0 10,2 38,0 130 07917 07573 1,78 0.0701 3,0 10,2 38,0 130 07918 07574 1,79 0.0705 3,0 10,2 38,0 130 07919 07575 1,80 0.0709 3,0 10,2 38,0 130 07920 07576 1,80 0.0709 3,0 20,0 50,0 130 07921 07577 1,81 0.0713 3,0 10,2 38,0 130 07922 07578 1,82 0.0717 3,0 10,2 38,0 130 07923 07579 1,83 0.0720 3,0 10,2 38,0 130 07924 07580 1,84 0.0724 3,0 10,2 38,0 130 07925 07581 1,85 0.0728 3,0 10,2 38,0 130 07926 07582 1,85 0.0728 3,0 22,8 60,0 130 07927 07583 1,86 0.0732 3,0 10,2 38,0 130 07928 07584 1,87 0.0736 3,0 10,2 38,0 130 07929 07585 1,88 0.0740 3,0 10,2 38,0 130 07930 07586 1,89 0.0744 3,0 10,2 38,0 130 07931 07587 1,90 0.0748 3,0 10,2 38,0 130 07932 07588 1,90 0.0748 3,0 22,8 60,0 130 07933 07589 1,91 0.0752 3,0 10,2 38,0 130 07934 07590 1,92 0.0756 3,0 10,2 38,0 130 07935 07591 1,93 0.0760 3,0 10,2 38,0 130 07936 07592 1,94 0.0764 3,0 10,2 38,0 130 07937 07593 continued on next page 122 DRILLS wwwD.sRgILsLmSicrotools.com
