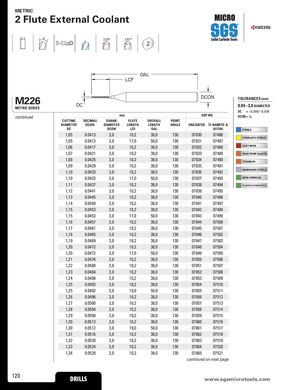

Каталог SGS микро инструмент 2021 - страница 120

METRIC 2 Flute External Coolant 118° 130° 2 OAL LCF M226METRIC SERIES DC DCON TOLERANCES (mm)0,04–3,0 DIAMETER DC = +0,000/–0,008 continued mm EDP NO. DCON = h6 CUTTING DECIMAL SHANK FLUTE OVERALL POINT DIAMETER EQUIV. DIAMETER LENGTH LENGTH ANGLE UNCOATED TI-NAMITE-A DC DCON LCF OAL (AlTiN) STEELS 1,05 0.0413 3,0 10,2 38,0 130 07830 07486 STAINLESS STEELS 1,05 0.0413 3,0 17,0 50,0 130 07831 07487 1,06 0.0417 3,0 10,2 38,0 130 07832 07488 CAST IRON 1,07 0.0421 3,0 10,2 38,0 130 07833 07489 HIGH TEMP ALLOYS 1,08 0.0425 3,0 10,2 38,0 130 07834 07490 TITANIUM 1,09 0.0429 3,0 10,2 38,0 130 07835 07491 1,10 0.0433 3,0 10,2 38,0 130 07836 07492 HARDENED STEELS 1,10 0.0433 3,0 17,0 50,0 130 07837 07493 NON-FERROUS 1,11 0.0437 3,0 10,2 38,0 130 07838 07494 PLASTICS/COMPOSITES 1,12 0.0441 3,0 10,2 38,0 130 07839 07495 1,13 0.0445 3,0 10,2 38,0 130 07840 07496 1,14 0.0449 3,0 10,2 38,0 130 07841 07497 1,15 0.0453 3,0 10,2 38,0 130 07842 07498 1,15 0.0453 3,0 17,0 50,0 130 07843 07499 1,16 0.0457 3,0 10,2 38,0 130 07844 07500 1,17 0.0461 3,0 10,2 38,0 130 07845 07501 1,18 0.0465 3,0 10,2 38,0 130 07846 07502 1,19 0.0469 3,0 10,2 38,0 130 07847 07503 1,20 0.0472 3,0 10,2 38,0 130 07848 07504 1,20 0.0472 3,0 17,0 50,0 130 07849 07505 1,21 0.0476 3,0 10,2 38,0 130 07850 07506 1,22 0.0480 3,0 10,2 38,0 130 07851 07507 1,23 0.0484 3,0 10,2 38,0 130 07852 07508 1,24 0.0488 3,0 10,2 38,0 130 07853 07509 1,25 0.0492 3,0 10,2 38,0 130 07854 07510 1,25 0.0492 3,0 19,0 50,0 130 07855 07511 1,26 0.0496 3,0 10,2 38,0 130 07856 07512 1,27 0.0500 3,0 10,2 38,0 130 07857 07513 1,28 0.0504 3,0 10,2 38,0 130 07858 07514 1,29 0.0508 3,0 10,2 38,0 130 07859 07515 1,30 0.0512 3,0 10,2 38,0 130 07860 07516 1,30 0.0512 3,0 19,0 50,0 130 07861 07517 1,31 0.0516 3,0 10,2 38,0 130 07862 07518 1,32 0.0520 3,0 10,2 38,0 130 07863 07519 1,33 0.0524 3,0 10,2 38,0 130 07864 07520 1,34 0.0528 3,0 10,2 38,0 130 07865 07521 continued on next page 120 DRILLS wwwD.sRgILsLmSicrotools.com
