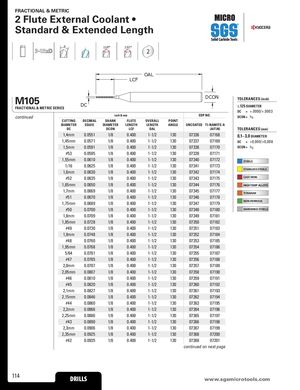

Каталог SGS микро инструмент 2021 - страница 114
Навигация
Каталог SGS фрезы для алюминия S-carb
Каталог SGS монолитный инструмент из композитных материалов
Каталог SGS инструмент для обработки алюминия
Общий каталог SGS 2018
Общий каталог SGS 2021
Каталог SGS фрезы для труднообрабатываемых материалов Series 33
| 118° | 130° | 2 | ||||||
| OAL | ||||||||
| LCF | ||||||||
| DCON | ||||||||
| FRACTIONAL & METRIC SE | RIES | DC | ||||||
| continued | inch | & mm | ED | P NO. | ||||
| CUTTING DIAMETER DC | DECIMAL EQUIV. | SHANK DIAMETER DCON | FLUTE LENGTH LCF | OVERALL LENGTH OAL | POINT ANGLE | UNCOATED | TI-NAMITE-A (AlTiN) | |
| 1,4mm | 0.0551 | 1/8 | 0.400 | 1-1/2 | 130 | 07336 | 07168 | |
| 1,45mm | 0.0571 | 1/8 | 0.400 | 1-1/2 | 130 | 07337 | 07169 | |
| 1,5mm | 0.0591 | 1/8 | 0.400 | 1-1/2 | 130 | 07338 | 07170 | |
| #53 | 0.0595 | 1/8 | 0.400 | 1-1/2 | 130 | 07339 | 07171 | |
| 1,55mm | 0.0610 | 1/8 | 0.400 | 1-1/2 | 130 | 07340 | 07172 | |
| 1/16 | 0.0625 | 1/8 | 0.400 | 1-1/2 | 130 | 07341 | 07173 | |
| 1,6mm | 0.0630 | 1/8 | 0.400 | 1-1/2 | 130 | 07342 | 07174 | |
| #52 | 0.0635 | 1/8 | 0.400 | 1-1/2 | 130 | 07343 | 07175 | |
| 1,65mm | 0.0650 | 1/8 | 0.400 | 1-1/2 | 130 | 07344 | 07176 | |
| 1,7mm | 0.0669 | 1/8 | 0.400 | 1-1/2 | 130 | 07345 | 07177 | |
| #51 | 0.0670 | 1/8 | 0.400 | 1-1/2 | 130 | 07346 | 07178 | |
| 1,75mm | 0.0689 | 1/8 | 0.400 | 1-1/2 | 130 | 07347 | 07179 | |
| #50 | 0.0700 | 1/8 | 0.400 | 1-1/2 | 130 | 07348 | 07180 | |
| 1,8mm | 0.0709 | 1/8 | 0.400 | 1-1/2 | 130 | 07349 | 07181 | |
| 1,85mm | 0.0728 | 1/8 | 0.400 | 1-1/2 | 130 | 07350 | 07182 | |
| #49 | 0.0730 | 1/8 | 0.400 | 1-1/2 | 130 | 07351 | 07183 | |
| 1,9mm | 0.0748 | 1/8 | 0.400 | 1-1/2 | 130 | 07352 | 07184 | |
| #48 | 0.0760 | 1/8 | 0.400 | 1-1/2 | 130 | 07353 | 07185 | |
| 1,95mm | 0.0768 | 1/8 | 0.400 | 1-1/2 | 130 | 07354 | 07186 | |
| 5/64 | 0.0781 | 1/8 | 0.400 | 1-1/2 | 130 | 07355 | 07187 | |
| #47 | 0.0785 | 1/8 | 0.400 | 1-1/2 | 130 | 07356 | 07188 | |
| 2,0mm | 0.0787 | 1/8 | 0.400 | 1-1/2 | 130 | 07357 | 07189 | |
| 2,05mm | 0.0807 | 1/8 | 0.400 | 1-1/2 | 130 | 07358 | 07190 | |
| #46 | 0.0810 | 1/8 | 0.400 | 1-1/2 | 130 | 07359 | 07191 | |
| #45 | 0.0820 | 1/8 | 0.400 | 1-1/2 | 130 | 07360 | 07192 | |
| 2,1mm | 0.0827 | 1/8 | 0.400 | 1-1/2 | 130 | 07361 | 07193 | |
| 2,15mm | 0.0846 | 1/8 | 0.400 | 1-1/2 | 130 | 07362 | 07194 | |
| #44 | 0.0860 | 1/8 | 0.400 | 1-1/2 | 130 | 07363 | 07195 | |
| 2,2mm | 0.0866 | 1/8 | 0.400 | 1-1/2 | 130 | 07364 | 07196 | |
| 2,25mm | 0.0886 | 1/8 | 0.400 | 1-1/2 | 130 | 07365 | 07197 | |
| #43 | 0.0890 | 1/8 | 0.400 | 1-1/2 | 130 | 07366 | 07198 | |
| 2,3mm | 0.0906 | 1/8 | 0.400 | 1-1/2 | 130 | 07367 | 07199 | |
| 2,35mm | 0.0925 | 1/8 | 0.400 | 1-1/2 | 130 | 07368 | 07200 | |
| #42 | 0.0935 | 1/8 | 0.400 | 1-1/2 | 130 | 07369 | 07201 |
(inch) DC = +.0000/+.0003 6
DIAMETER
6
STEELS
HIGH TEMP ALLOYS TITANIUM
continued on next page
