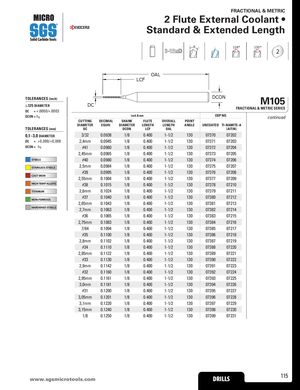

Каталог SGS микро инструмент 2021 - страница 115
Навигация
Каталог SGS фрезы для алюминия S-carb
Каталог SGS монолитный инструмент из композитных материалов
Каталог SGS инструмент для обработки алюминия
Общий каталог SGS 2018
Общий каталог SGS 2021
Каталог SGS фрезы для труднообрабатываемых материалов Series 33
| 118° | 130° 2 | ||||||||
| TOLERANCES(inch) | L | OAL CF | DCO | N | M10 | ||||
| ≤.125DIAMETER | DC | FRACT | 5 IONAL & METRIC SERIES | ||||||
| DC =+0000/+0003 | |||||||||
| .. DCON =h6 | inch & | mm | EDP | NO. | tid | ||||
| TOLERANCES(mm) | CUTTING DIAMETER DC | DECIMAL EQUIV. | SHANK DIAMETER DCON | FLUTE LENGTH LCF | OVERALL LENGTH OAL | POINT ANGLE | UNCOATED T | I-NAMITE-A (AlTiN) | connue |
| 0,1–3,0DIAMETER | 3/32 | 0.0938 | 1/8 | 0.400 | 1-1/2 | 130 | 07370 | 07202 | |
| DC = +0,000/+0,008 | 2,4mm | 0.0945 | 1/8 | 0.400 | 1-1/2 | 130 | 07371 | 07203 | |
| DCON =h6 | #41 | 0.0960 | 1/8 | 0.400 | 1-1/2 | 130 | 07372 | 07204 | |
| 2,45mm | 0.0965 | 1/8 | 0.400 | 1-1/2 | 130 | 07373 | 07205 | ||
| STEELS | #40 | 0.0980 | 1/8 | 0.400 | 1-1/2 | 130 | 07374 | 07206 | |
| STAINLESS STEELS | 2,5mm | 0.0984 | 1/8 | 0.400 | 1-1/2 | 130 | 07375 | 07207 | |
| CAST IRON | #39 | 0.0995 | 1/8 | 0.400 | 1-1/2 | 130 | 07376 | 07208 | |
| 2,55mm | 0.1004 | 1/8 | 0.400 | 1-1/2 | 130 | 07377 | 07209 | ||
| HIGH TEMP ALLOYS | #38 | 0.1015 | 1/8 | 0.400 | 1-1/2 | 130 | 07378 | 07210 | |
| TITANIUM | 2,6mm | 0.1024 | 1/8 | 0.400 | 1-1/2 | 130 | 07379 | 07211 | |
| NON-FERROUS | #37 | 0.1040 | 1/8 | 0.400 | 1-1/2 | 130 | 07380 | 07212 | |
| 2,65mm | 0.1043 | 1/8 | 0.400 | 1-1/2 | 130 | 07381 | 07213 | ||
| HARDENED STEELS | 2,7mm | 0.1063 | 1/8 | 0.400 | 1-1/2 | 130 | 07382 | 07214 | |
| #36 | 0.1065 | 1/8 | 0.400 | 1-1/2 | 130 | 07383 | 07215 | ||
| 2,75mm | 0.1083 | 1/8 | 0.400 | 1-1/2 | 130 | 07384 | 07216 | ||
| 7/64 | 0.1094 | 1/8 | 0.400 | 1-1/2 | 130 | 07385 | 07217 | ||
| #35 | 0.1100 | 1/8 | 0.400 | 1-1/2 | 130 | 07386 | 07218 | ||
| 2,8mm | 0.1102 | 1/8 | 0.400 | 1-1/2 | 130 | 07387 | 07219 | ||
| #34 | 0.1110 | 1/8 | 0.400 | 1-1/2 | 130 | 07388 | 07220 | ||
| 2,85mm | 0.1122 | 1/8 | 0.400 | 1-1/2 | 130 | 07389 | 07221 | ||
| #33 | 0.1130 | 1/8 | 0.400 | 1-1/2 | 130 | 07390 | 07222 | ||
| 2,9mm | 0.1142 | 1/8 | 0.400 | 1-1/2 | 130 | 07391 | 07223 | ||
| #32 | 0.1160 | 1/8 | 0.400 | 1-1/2 | 130 | 07392 | 07224 | ||
| 2,95mm | 0.1161 | 1/8 | 0.400 | 1-1/2 | 130 | 07393 | 07225 | ||
| 3,0mm | 0.1181 | 1/8 | 0.400 | 1-1/2 | 130 | 07394 | 07226 | ||
| #31 | 0.1200 | 1/8 | 0.400 | 1-1/2 | 130 | 07395 | 07227 | ||
| 3,05mm | 0.1201 | 1/8 | 0.400 | 1-1/2 | 130 | 07396 | 07228 | ||
| 3,1mm | 0.1220 | 1/8 | 0.400 | 1-1/2 | 130 | 07397 | 07229 | ||
| 3,15mm | 0.1240 | 1/8 | 0.400 | 1-1/2 | 130 | 07398 | 07230 | ||
| 1/8 | 0.1250 | 1/8 | 0.400 | 1-1/2 | 130 | 07399 | 07231 |
