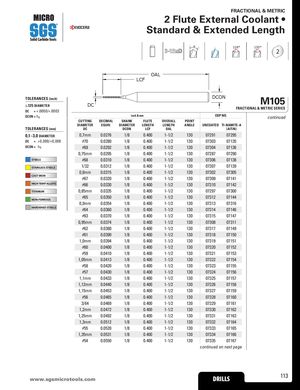

| 118° | 130° 2 | |||||||||
| L | C | OAL F | ||||||||
| TOLERANCES(inch) | DCO | N | M105 | |||||||
| ≤125DIAMETER | DC | |||||||||
| . | FRACT | IONAL & METRIC SERIES | ||||||||
| DC =+0000/+0003 | ||||||||||
| .. DCON =h6 | inch & | m | m | EDP | NO. | continued | ||||
| TOLERANCES(mm) | CUTTING DIAMETER DC | DECIMAL EQUIV. | SHANK DIAMETER DCON | FLUTE LENGTH LCF | OVERALL LENGTH OAL | POINT ANGLE | UNCOATED | TI-NAMITE-A (AlTiN) | ||
| 0,1–3,0DIAMETER | 0,7mm | 0.0276 | 1/8 | 0.400 | 1-1/2 | 130 | 07291 | 07295 | ||
| DC = +0,000/+0,008 | #70 | 0.0280 | 1/8 | 0.400 | 1-1/2 | 130 | 07303 | 07135 | ||
| DCON =h6 | #69 | 0.0292 | 1/8 | 0.400 | 1-1/2 | 130 | 07304 | 07136 | ||
| 0,75mm | 0.0295 | 1/8 | 0.400 | 1-1/2 | 130 | 07287 | 07290 | |||
| STEELS | #68 | 0.0310 | 1/8 | 0.400 | 1-1/2 | 130 | 07306 | 07138 | ||
| STAINLESS STEELS | 1/32 | 0.0312 | 1/8 | 0.400 | 1-1/2 | 130 | 07307 | 07139 | ||
| CAST IRON | 0,8mm | 0.0315 | 1/8 | 0.400 | 1-1/2 | 130 | 07302 | 07305 | ||
| #67 | 0.0320 | 1/8 | 0.400 | 1-1/2 | 130 | 07309 | 07141 | |||
| HIGH TEMP ALLOYS | #66 | 0.0330 | 1/8 | 0.400 | 1-1/2 | 130 | 07310 | 07142 | ||
| TITANIUM | 0,85mm | 0.0335 | 1/8 | 0.400 | 1-1/2 | 130 | 07297 | 07300 | ||
| NON-FERROUS | #65 | 0.0350 | 1/8 | 0.400 | 1-1/2 | 130 | 07312 | 07144 | ||
| 0,9mm | 0.0354 | 1/8 | 0.400 | 1-1/2 | 130 | 07313 | 07316 | |||
| HARDENED STEELS | #64 | 0.0360 | 1/8 | 0.400 | 1-1/2 | 130 | 07314 | 07146 | ||
| #63 | 0.0370 | 1/8 | 0.400 | 1-1/2 | 130 | 07315 | 07147 | |||
| 0,95mm | 0.0374 | 1/8 | 0.400 | 1-1/2 | 130 | 07308 | 07311 | |||
| #62 | 0.0380 | 1/8 | 0.400 | 1-1/2 | 130 | 07317 | 07149 | |||
| #61 | 0.0390 | 1/8 | 0.400 | 1-1/2 | 130 | 07318 | 07150 | |||
| 1,0mm | 0.0394 | 1/8 | 0.400 | 1-1/2 | 130 | 07319 | 07151 | |||
| #60 | 0.0400 | 1/8 | 0.400 | 1-1/2 | 130 | 07320 | 07152 | |||
| #59 | 0.0410 | 1/8 | 0.400 | 1-1/2 | 130 | 07321 | 07153 | |||
| 1,05mm | 0.0413 | 1/8 | 0.400 | 1-1/2 | 130 | 07322 | 07154 | |||
| #58 | 0.0420 | 1/8 | 0.400 | 1-1/2 | 130 | 07323 | 07155 | |||
| #57 | 0.0430 | 1/8 | 0.400 | 1-1/2 | 130 | 07324 | 07156 | |||
| 1,1mm | 0.0433 | 1/8 | 0.400 | 1-1/2 | 130 | 07325 | 07157 | |||
| 1,12mm | 0.0440 | 1/8 | 0.400 | 1-1/2 | 130 | 07326 | 07158 | |||
| 1,15mm | 0.0453 | 1/8 | 0.400 | 1-1/2 | 130 | 07327 | 07159 | |||
| #56 | 0.0465 | 1/8 | 0.400 | 1-1/2 | 130 | 07328 | 07160 | |||
| 3/64 | 0.0469 | 1/8 | 0.400 | 1-1/2 | 130 | 07329 | 07161 | |||
| 1,2mm | 0.0472 | 1/8 | 0.400 | 1-1/2 | 130 | 07330 | 07162 | |||
| 1,25mm | 0.0492 | 1/8 | 0.400 | 1-1/2 | 130 | 07331 | 07163 | |||
| 1,3mm | 0.0512 | 1/8 | 0.400 | 1-1/2 | 130 | 07332 | 07164 | |||
| #55 | 0.0520 | 1/8 | 0.400 | 1-1/2 | 130 | 07333 | 07165 | |||
| 1,35mm | 0.0531 | 1/8 | 0.400 | 1-1/2 | 130 | 07334 | 07166 | |||
| #54 | 0.0550 | 1/8 | 0.400 | 1-1/2 | 130 | 07335 | 07167 |
continued on next page
