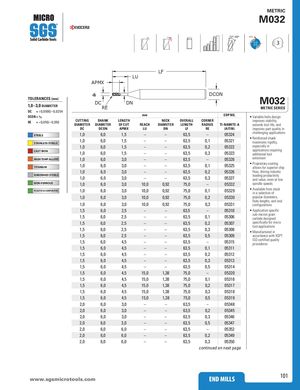

Каталог SGS микро инструмент 2021 - страница 101
Навигация
Каталог SGS фрезы для алюминия S-carb
Каталог SGS монолитный инструмент из композитных материалов
Каталог SGS инструмент для обработки алюминия
Общий каталог SGS 2018
Общий каталог SGS 2021
Каталог SGS фрезы для труднообрабатываемых материалов Series 33
32°–48° POS
3
| APMX | L | U | LF | DCO | N | |||
| DC RE | DN | M032 METRIC SERIES | ||||||
| mm | EDP NO, | • Variable helix design | ||||||
| CUTTING DIAMETER DC | SHANK DIAMETER DCON | LENGTH OF CUT APMX | REACH LU | NECK DIAMETER DN | OVERALL LENGTH LF | CORNER RADIUS RE | TI-NAMITE-A (AlTiN) | improves stability, extends tool life, and improves part quality in |
| 1,0 | 6,0 | 1,5 | – | – | 63,5 | – | 05324 | challenging applications |
| 1,0 | 6,0 | 1,5 | – | – | 63,5 | 0,1 | 05321 | • Reinforced shank maximizes rigidity, |
| 1,0 | 6,0 | 1,5 | – | – | 63,5 | 0,2 | 05322 | especially in liti ii |
| 1,0 | 6,0 | 1,5 | – | – | 63,5 | 0,3 | 05323 | appcaons requrng additional tool |
| 1,0 | 6,0 | 3,0 | – | – | 63,5 | – | 05328 | extension |
| 1,0 | 6,0 | 3,0 | – | – | 63,5 | 0,1 | 05325 | • Proprietary coating allows for superior chip |
| 1,0 | 6,0 | 3,0 | – | – | 63,5 | 0,2 | 05326 | flow, driving industry |
| 1,0 | 6,0 | 3,0 | – | – | 63,5 | 0,3 | 05327 | leading productivity and value, even at low |
| 1,0 | 6,0 | 3,0 | 10,0 | 0,92 | 75,0 | – | 05332 | spindle speeds. |
| 1,0 | 6,0 | 3,0 | 10,0 | 0,92 | 75,0 | 0,1 | 05329 | • Available from stock in a selection of |
| 1,0 | 6,0 | 3,0 | 10,0 | 0,92 | 75,0 | 0,2 | 05330 | popular diameters, flute lengths and end |
| 1,0 | 6,0 | 3,0 | 10,0 | 0,92 | 75,0 | 0,3 | 05331 | , configurations |
| 1,5 | 6,0 | 2,5 | – | – | 63,5 | – | 05310 | • Application specific |
| 1,5 | 6,0 | 2,5 | – | – | 63,5 | 0,1 | 05306 | sub-micron grain carbide designed |
| 1,5 | 6,0 | 2,5 | – | – | 63,5 | 0,2 | 05307 | specifically for micro- tool alications |
| 1,5 | 6,0 | 2,5 | – | – | 63,5 | 0,3 | 05308 | pp • Manufactured in |
| 1,5 | 6,0 | 2,5 | – | – | 63,5 | 0,5 | 05309 | accordance with KSPT |
| 1,5 | 6,0 | 4,5 | – | – | 63,5 | – | 05315 | ISO certified quality procedures |
| 1,5 | 6,0 | 4,5 | – | – | 63,5 | 0,1 | 05311 | |
| 1,5 | 6,0 | 4,5 | – | – | 63,5 | 0,2 | 05312 | |
| 1,5 | 6,0 | 4,5 | – | – | 63,5 | 0,3 | 05313 | |
| 1,5 | 6,0 | 4,5 | – | – | 63,5 | 0,5 | 05314 | |
| 1,5 | 6,0 | 4,5 | 15,0 | 1,38 | 75,0 | – | 05320 | |
| 1,5 | 6,0 | 4,5 | 15,0 | 1,38 | 75,0 | 0,1 | 05316 | |
| 1,5 | 6,0 | 4,5 | 15,0 | 1,38 | 75,0 | 0,2 | 05317 | |
| 1,5 | 6,0 | 4,5 | 15,0 | 1,38 | 75,0 | 0,3 | 05318 | |
| 1,5 | 6,0 | 4,5 | 15,0 | 1,38 | 75,0 | 0,5 | 05319 | |
| 2,0 | 6,0 | 3,0 | – | – | 63,5 | – | 05348 | |
| 2,0 | 6,0 | 3,0 | – | – | 63,5 | 0,2 | 05345 | |
| 2,0 | 6,0 | 3,0 | – | – | 63,5 | 0,3 | 05346 | |
| 2,0 | 6,0 | 3,0 | – | – | 63,5 | 0,5 | 05347 | |
| 2,0 | 6,0 | 6,0 | – | – | 63,5 | – | 05352 | |
| 2,0 | 6,0 | 6,0 | – | – | 63,5 | 0,2 | 05349 | |
| 2,0 | 6,0 | 6,0 | – | – | 63,5 | 0,3 | 05350 | |
| continued | on next page |
TOLERANCES (mm)
DC = +0,0000/–0,0254 6
HIGH TEMP ALLOYS
