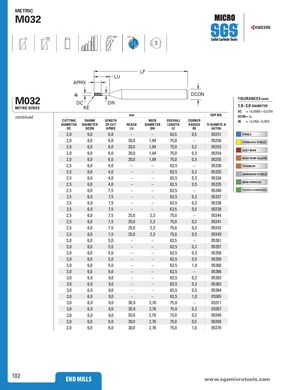

Каталог SGS микро инструмент 2021 - страница 102
Навигация
Каталог SGS фрезы для алюминия S-carb
Каталог SGS монолитный инструмент из композитных материалов
Каталог SGS инструмент для обработки алюминия
Общий каталог SGS 2018
Общий каталог SGS 2021
Каталог SGS фрезы для труднообрабатываемых материалов Series 33
| 32°–48° | POS | |||||||
| 3 | ||||||||
| LU | LF | |||||||
| AP | MX | |||||||
| DCON | ||||||||
| D | C | DN | ||||||
| METRIC SERIES | RE | |||||||
| continued | mm | EDP NO, | ||||||
| CUTTING DIAMETER DC | SHANK DIAMETER DCON | LENGTH OF CUT APMX | REACH LU | NECK DIAMETER DN | OVERALL LENGTH LF | CORNER RADIUS RE | TI-NAMITE-A (AlTiN) | |
| 2,0 | 6,0 | 6,0 | – | – | 63,5 | 0,5 | 05351 | |
| 2,0 | 6,0 | 6,0 | 20,0 | 1,84 | 75,0 | – | 05356 | |
| 2,0 | 6,0 | 6,0 | 20,0 | 1,84 | 75,0 | 0,2 | 05353 | |
| 2,0 | 6,0 | 6,0 | 20,0 | 1,84 | 75,0 | 0,3 | 05354 | |
| 2,0 | 6,0 | 6,0 | 20,0 | 1,84 | 75,0 | 0,5 | 05355 | |
| 2,5 | 6,0 | 4,0 | – | – | 63,5 | – | 05336 | |
| 2,5 | 6,0 | 4,0 | – | – | 63,5 | 0,2 | 05333 | |
| 2,5 | 6,0 | 4,0 | – | – | 63,5 | 0,3 | 05334 | |
| 2,5 | 6,0 | 4,0 | – | – | 63,5 | 0,5 | 05335 | |
| 2,5 | 6,0 | 7,5 | – | – | 63,5 | – | 05340 | |
| 2,5 | 6,0 | 7,5 | – | – | 63,5 | 0,2 | 05337 | |
| 2,5 | 6,0 | 7,5 | – | – | 63,5 | 0,3 | 05338 | |
| 2,5 | 6,0 | 7,5 | – | – | 63,5 | 0,5 | 05339 | |
| 2,5 | 6,0 | 7,5 | 25,0 | 2,3 | 75,0 | – | 05344 | |
| 2,5 | 6,0 | 7,5 | 25,0 | 2,3 | 75,0 | 0,2 | 05341 | |
| 2,5 | 6,0 | 7,5 | 25,0 | 2,3 | 75,0 | 0,3 | 05342 | |
| 2,5 | 6,0 | 7,5 | 25,0 | 2,3 | 75,0 | 0,5 | 05343 | |
| 3,0 | 6,0 | 5,0 | – | – | 63,5 | – | 05361 | |
| 3,0 | 6,0 | 5,0 | – | – | 63,5 | 0,2 | 05357 | |
| 3,0 | 6,0 | 5,0 | – | – | 63,5 | 0,3 | 05358 | |
| 3,0 | 6,0 | 5,0 | – | – | 63,5 | 0,5 | 05359 | |
| 3,0 | 6,0 | 5,0 | – | – | 63,5 | 1,0 | 05360 | |
| 3,0 | 6,0 | 9,0 | – | – | 63,5 | – | 05366 | |
| 3,0 | 6,0 | 9,0 | – | – | 63,5 | 0,2 | 05362 | |
| 3,0 | 6,0 | 9,0 | – | – | 63,5 | 0,3 | 05363 | |
| 3,0 | 6,0 | 9,0 | – | – | 63,5 | 0,5 | 05364 | |
| 3,0 | 6,0 | 9,0 | – | – | 63,5 | 1,0 | 05365 | |
| 3,0 | 6,0 | 9,0 | 30,0 | 2,76 | 75,0 | – | 05371 | |
| 3,0 | 6,0 | 9,0 | 30,0 | 2,76 | 75,0 | 0,2 | 05367 | |
| 3,0 | 6,0 | 9,0 | 30,0 | 2,76 | 75,0 | 0,3 | 05368 | |
| 3,0 | 6,0 | 9,0 | 30,0 | 2,76 | 75,0 | 0,5 | 05369 | |
| 3,0 | 6,0 | 9,0 | 30,0 | 2,76 | 75,0 | 1,0 | 05370 |
TOLERANCES (mm)
DC = +0,0000/–0,0254 6
STAINLESS STEELS
TITANIUM
