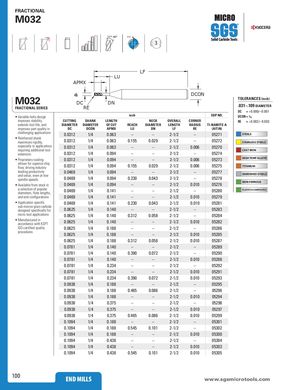

FRACTIONAL M032 32°–48° POS 3 LF LU APMX DCON M032 DC RE DN TOLERANCES (inch) .031–.109 DIAMETER FRACTIONAL SERIES DC = +0.000/–0.001 • Variable helix design inch EDP NO. DCON = h 6 improves stability, CUTTING SHANK LENGTH NECK OVERALL CORNER RE = +0.002/–0.002 extends tool life, and DIAMETER DIAMETER OF CUT REACH DIAMETER LENGTH RADIUS TI-NAMITE-A improves part quality in DC DCON APMX LU DN LF RE (AlTiN) challenging applications 0.0312 1/4 0.063 – – 2-1/2 – 05271 STEELS • Reinforced shank maximizes rigidity, 0.0312 1/4 0.063 0.155 0.029 2-1/2 – 05272 STAINLESS STEELS especially in applications 0.0312 1/4 0.063 – – 2-1/2 0.006 05270 requiring additional tool CAST IRON extension 0.0312 1/4 0.094 – – 2-1/2 – 05274 HIGH TEMP ALLOYS • Proprietary coating 0.0312 1/4 0.094 – – 2-1/2 0.006 05273 allows for superior chip flow, driving industry 0.0312 1/4 0.094 0.155 0.029 2-1/2 0.006 05275 TITANIUM leading productivity 0.0469 1/4 0.094 – – 2-1/2 – 05277 HARDENED STEELS and value, even at low spindle speeds. 0.0469 1/4 0.094 0.230 0.043 2-1/2 – 05278 NON-FERROUS • Available from stock in 0.0469 1/4 0.094 – – 2-1/2 0.010 05276 a selection of popular diameters, flute lengths, 0.0469 1/4 0.141 – – 2-1/2 – 05280 PLASTICS/COMPOSITES and end configurations 0.0469 1/4 0.141 – – 2-1/2 0.010 05279 • Application specific 0.0469 1/4 0.141 0.230 0.043 2-1/2 0.010 05281 sub-micron grain carbide designed specifically for 0.0625 1/4 0.140 – – 2-1/2 – 05283 micro-tool applications 0.0625 1/4 0.140 0.312 0.058 2-1/2 – 05284 • Manufactured in accordance with KSPT 0.0625 1/4 0.140 – – 2-1/2 0.010 05282 ISO certified quality 0.0625 1/4 0.188 – – 2-1/2 – 05286 procedures 0.0625 1/4 0.188 – – 2-1/2 0.010 05285 0.0625 1/4 0.188 0.312 0.058 2-1/2 0.010 05287 0.0781 1/4 0.140 – – 2-1/2 – 05289 0.0781 1/4 0.140 0.390 0.072 2-1/2 – 05290 0.0781 1/4 0.140 – – 2-1/2 0.010 05288 0.0781 1/4 0.234 – – 2-1/2 – 05292 0.0781 1/4 0.234 – – 2-1/2 0.010 05291 0.0781 1/4 0.234 0.390 0.072 2-1/2 0.010 05293 0.0938 1/4 0.188 – – 2-1/2 – 05295 0.0938 1/4 0.188 0.465 0.086 2-1/2 – 05296 0.0938 1/4 0.188 – – 2-1/2 0.010 05294 0.0938 1/4 0.375 – – 2-1/2 – 05298 0.0938 1/4 0.375 – – 2-1/2 0.010 05297 0.0938 1/4 0.375 0.465 0.086 2-1/2 0.010 05299 0.1094 1/4 0.188 – – 2-1/2 – 05301 0.1094 1/4 0.188 0.545 0.101 2-1/2 – 05302 0.1094 1/4 0.188 – – 2-1/2 0.010 05300 0.1094 1/4 0.438 – – 2-1/2 – 05304 0.1094 1/4 0.438 – – 2-1/2 0.010 05303 0.1094 1/4 0.438 0.545 0.101 2-1/2 0.010 05305 100 END MILLS END MILLS www.sgsmicrotools.com
