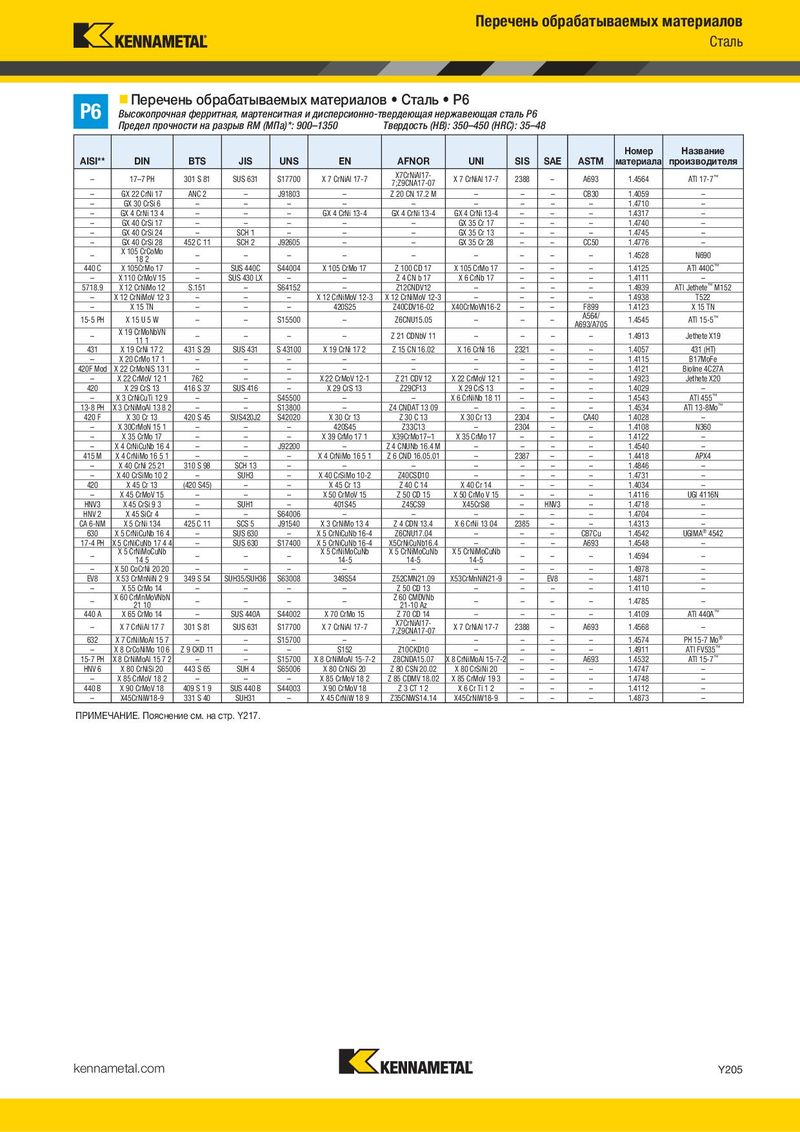

Перечень обрабатываемых материалов • Сталь • P5 (продолжение) Перечень обрабатываемых материалов • Сталь • P6
P5 P6 Высокопрочная ферритная, мартенситная и дисперсионно-твердеющая нержавеющая сталь P6
Ферритная, мартенситная и дисперсионно-твердеющая нержавеющая сталь P5 Предел прочности на разрыв RM (МПа)*: 600–900 Твердость (HB): <330 (HRC): <35 Предел прочности на разрыв RM (МПа)*: 900–1350 Твердость (HB): 350–450 (HRC): 35–48
Номер Название Номер Название
| AISI** | DIN | BTS | JIS | UNS | EN | AFNOR | UNI | SIS | SAE | ASTM | материала производителя | |||||
| – | X 215 Cr 12 | – | – | – | – | – | – | – | – | – | 1.4721 | – | ||||
| H-12 | X 10 CrAl 13 | BH 12 | SUS 405 | T20812 | X 10 CrAl 13 | Z 10 C 13 | X 10 CrAl 12 | – | – | – | 1.4724 | – | ||||
| 430 | X 10 CrAl 18 | (430 S 15) | SUH 21 | S43000 | – | Z 10 CAS 18 | (X 8 Cr 17) | – | – | – | 1.4742 | – | ||||
| 446 | X 10 CrAl 25 | – | SUH 442 | S44600 | X 10 CrAl 24 | Z 10 CAS 24 | X 16 Cr 26 | 2322 | – | – | 1.4762 | – | ||||
| – | GX 40 CrNiSi 27 4 | – | – | J92605 | – | – | – | – | – | – | 1.4823 | – | ||||
| – | X 12 CrNi 22 12 | 311 S 94 | SUS Y 309 | S30980 | X 15 CrNi 23 13 | – | X 16 CrNi 23 14 | – | – | 309 | 1.4829 | – | ||||
| – | X 9 CrNiSiNCe 21 11 2 | – | – | – | X 9 CrNiSiNCe 21-11-2 | – | – | – | – | – | 1.4835 | – | ||||
| 314 | X 15 CrNiSi 25 20 | 314 S 25 | SUH 310 | S31400 | X 15 CrNiSi 25 20 | Z 15 CNS 25.20 | X 16 CrNiSi 25 20 | – | – | – | 1.4841 | Cronifer® 2520 | ||||
| – | X 12 CrNi 25 20 | 310 S 94 | – | S31080 | X 12 CrNi 26 21 KE | Z 12 CN 26–21 | – | – | – | – | 1.4842 | – | ||||
| – | CrNi 25 20 | – | SCS 18 | S31400 | – | – | – | – | – | – | 1.4843 | – | ||||
| 310 S | X 12 CrNi 25 21 | 310 S 24 | SUS 310 S | S31008 | X 8 CrNi 25 21 | Z 12 CN 25.20 | X 6 CrNi 25 20 | 2361 | – | – | 1.4845 | ATI 310S™ | ||||
| HK | X 40 CrNiSi 25 20 | 310 C 40 | SCH 21 | J94204 | – | – | GX 40 CrNi 26 20 | – | – | – | 1.4848 | – | ||||
| – | GX 40 NiCrSiNb 38-18 | – | – | – | 3072.76 | – | – | – | – | – | 1.4849 | – |
| AISI** | DIN | BTS | JIS | UNS | EN | AFNOR | UNI | SIS | SAE | ASTM | материала | производителя | |||
| X7CrNiAl17- | |||||||||||||||
| – | 17–7 PH | 301 S 81 | SUS 631 | S17700 | X 7 CrNiAl 17-7 | X 7 CrNiAl 17-7 | 2388 | – | A693 | 1.4564 | ATI 17-7™ | ||||
| 7;Z9CNA17-07 | |||||||||||||||
| – | GX 22 CrNi 17 | ANC 2 | – | J91803 | – | Z 20 CN 17.2 M | – | – | – | CB30 | 1.4059 | – | |||
| – | GX 30 CrSi 6 | – | – | – | – | – | – | – | – | – | 1.4710 | – | |||
| – | GX 4 CrNi 13 4 | – | – | – | GX 4 CrNi 13-4 | GX 4 CrNi 13-4 | GX 4 CrNi 13-4 | – | – | – | 1.4317 | – | |||
| – | GX 40 CrSi 17 | – | – | – | – | – | GX 35 Cr 17 | – | – | – | 1.4740 | – | |||
| – | GX 40 CrSi 24 | – | SCH 1 | – | – | – | GX 35 Cr 13 | – | – | – | 1.4745 | – | |||
| – | GX 40 CrSi 28 | 452 C 11 | SCH 2 | J92605 | – | – | GX 35 Cr 28 | – | – | CC50 | 1.4776 | – | |||
| – | X 105 CrCoMo | – | – | – | – | – | – | – | – | – | 1.4528 | N690 | |||
| 18 2 | |||||||||||||||
| 440 C | X 105CrMo 17 | – | SUS 440C | S44004 | X 105 CrMo 17 | Z 100 CD 17 | X 105 CrMo 17 | – | – | – | 1.4125 | ATI 440C™ | |||
| – | X 110 CrMoV 15 | – | SUS 430 LX | – | – | Z 4 CN b 17 | X 6 CrNb 17 | – | – | – | 1.4111 | – | |||
| 5718.9 | X 12 CrNiMo 12 | S.151 | – | S64152 | – | Z12CNDV12 | – | – | – | – | 1.4939 | ATI Jethete ™ M152 |
| AISI | DIN | BTS | JIS | UNS | EN | AFNOR | UNI | SIS | SAE | ASTM | Номер материала | Название производителя |
| – | 17–7 PH | 301 S 81 | SUS 631 | S17700 | X 7 CrNiAl 17-7 | X7CrNiAl17- 7;Z9CNA17-07 | X 7 CrNiAl 17-7 | 2388 | – | A693 | 1.4564 | ATI 17-7™ |
| – | GX 22 CrNi 17 | ANC 2 | – | J91803 | – | Z 20 CN 17.2 M | – | – | – | CB30 | 1.4059 | – |
| – | GX 30 CrSi 6 | – | – | – | – | – | – | – | – | – | 1.4710 | – |
| – | GX 4 CrNi 13 4 | – | – | – | GX 4 CrNi 13-4 | GX 4 CrNi 13-4 | GX 4 CrNi 13-4 | – | – | – | 1.4317 | – |
| – | GX 40 CrSi 17 | – | – | – | – | – | GX 35 Cr 17 | – | – | – | 1.4740 | – |
| – | GX 40 CrSi 24 | – | SCH 1 | – | – | – | GX 35 Cr 13 | – | – | – | 1.4745 | – |
| – | GX 40 CrSi 28 | 452 C 11 | SCH 2 | J92605 | – | – | GX 35 Cr 28 | – | – | CC50 | 1.4776 | – |
| – | X 105 CrCoMo 18 2 | – | – | – | – | – | – | – | – | – | 1.4528 | N690 |
| 440 C | X 105CrMo 17 | – | SUS 440C | S44004 | X 105 CrMo 17 | Z 100 CD 17 | X 105 CrMo 17 | – | – | – | 1.4125 | ATI 440C™ |
| – | X 110 CrMoV 15 | – | SUS 430 LX | – | – | Z 4 CN b 17 | X 6 CrNb 17 | – | – | – | 1.4111 | – |
| 5718.9 | X 12 CrNiMo 12 | S.151 | – | S64152 | – | Z12CNDV12 | – | – | – | – | 1.4939 | ATI Jethete™M152 |
| – | X 12 CrNiMoV 12 3 | – | – | – | X 12 CrNiMoV 12-3 | X 12 CrNiMoV 12-3 | – | – | – | – | 1.4938 | T522 |
| – | X 15 TN | – | – | – | 420S25 | Z40CDV16-02 | X40CrMoVN16-2 | – | – | F899 | 1.4123 | X 15 TN |
| 15-5 PH | X 15 U 5 W | – | – | S15500 | – | Z6CNU15.05 | – | – | – | A564/ A693/A705 | 1.4545 | ATI 15-5™ |
| – | X 19 CrMoNbVN 11 1 | – | – | – | – | Z 21 CDNbV 11 | – | – | – | – | 1.4913 | Jethete X19 |
| 431 | X 19 CrNi 17 2 | 431 S 29 | SUS 431 | S 43100 | X 19 CrNi 17 2 | Z 15 CN 16.02 | X 16 CrNi 16 | 2321 | – | – | 1.4057 | 431 (HT) |
| – | X 20 CrMo 17 1 | – | – | – | – | – | – | – | – | – | 1.4115 | B17MoFe |
| 420F Mod | X 22 CrMoNiS 13 1 | – | – | – | – | – | – | – | – | – | 1.4121 | Bioline 4C27A |
| – | X 22 CrMoV 12 1 | 762 | – | – | X 22 CrMoV 12-1 | Z 21 CDV 12 | X 22 CrMoV 12 1 | – | – | – | 1.4923 | Jethete X20 |
| 420 | X 29 CrS 13 | 416 S 37 | SUS 416 | – | X 29 CrS 13 | Z29CF13 | X 29 CrS 13 | – | – | – | 1.4029 | – |
| – | X 3 CrNiCuTi 12 9 | – | – | S45500 | – | – | X 6 CrNiNb 18 11 | – | – | – | 14543 | ATI 455™ |
| 13-8 PH | X 3 CrNiMoAl 13 8 2 | – | – | S13800 | – | Z4 CNDAT 13 09 | – | – | – | – | . 1.4534 | ATI 13-8Mo™ |
| 420 F | X 30 Cr 13 | 420 S 45 | SUS420J2 | S42020 | X 30 Cr 13 | Z 30 C 13 | X 30 Cr 13 | 2304 | – | CA40 | 1.4028 | – |
| – | X 30CrMoN 15 1 | – | – | – | 420S45 | Z33C13 | – | 2304 | – | – | 1.4108 | N360 |
| – | X 35 CrMo 17 | – | – | – | X 39 CrMo 17 1 | X39CrMo17–1 | X 35 CrMo 17 | – | – | – | 1.4122 | – |
| – | X 4 CrNiCuNb 16 4 | – | – | J92200 | – | Z 4 CNUNb 16.4 M | – | – | – | – | 1.4540 | – |
| 415 M | X 4 CrNiMo 16 5 1 | – | – | – | X 4 CrNiMo 16 5 1 | Z 6 CND 16.05.01 | – | 2387 | – | – | 1.4418 | APX4 |
| – | X 40 CrNi 25 21 | 310 S 98 | SCH 13 | – | – | – | – | – | – | – | 1.4846 | – |
| – | X 40 CrSiMo 10 2 | – | SUH3 | – | X 40 CrSiMo 10-2 | Z40CSD10 | – | – | – | – | 14731 | – |
| 420 | X 45 Cr 13 | (420 S45) | – | – | X 45 Cr 13 | Z 40 C 14 | X 40 Cr 14 | – | – | – | . 1.4034 | – |
| – | X 45 CrMoV 15 | – | – | – | X 50 CrMoV 15 | Z 50 CD 15 | X 50 CrMo V 15 | – | – | – | 1.4116 | UGI 4116N |
| HNV3 | X 45 CrSi 9 3 | – | SUH1 | – | 401S45 | Z45CS9 | X45CrSi8 | – | HNV3 | – | 1.4718 | – |
| HNV 2 | X 45 SiCr 4 | – | – | S64006 | – | – | – | – | – | – | 1.4704 | – |
| CA 6-NM | X 5 CrNi 134 | 425 C 11 | SCS 5 | J91540 | X 3 CrNiMo 13 4 | Z 4 CDN 13.4 | X 6 CrNi 13 04 | 2385 | – | – | 1.4313 | – |
| 630 | X 5 CrNiCuNb 16 4 | – | SUS 630 | – | X 5 CrNiCuNb 16-4 | Z6CNU17.04 | – | – | – | CB7Cu | 1.4542 | UGIMA®4542 |
| 17-4 PH | X 5 CrNiCuNb 17 4 4 | – | SUS 630 | S17400 | X 5 CrNiCuNb 16-4 | X5CrNiCuNb16.4 | – | – | – | A693 | 1.4548 | – |
| X 5 CrNiMoCuNb | X 5 CrNiMoCuNb | X 5 CrNiMoCuNb | X 5 CrNiMoCuNb | 14594 | ||||||||
| – | 14 5 | – | – | – | 14-5 | 14-5 | 14-5 | – | – | – | . | – |
| – | X 50 CoCrNi 20 20 | – | – | – | – | – | – | – | – | – | 1.4978 | – |
| EV8 | X 53 CrMnNiN 2 9 | 349 S 54 | SUH35/SUH36 | S63008 | 349S54 | Z52CMN21.09 | X53CrMnNiN21-9 | – | EV8 | – | 1.4871 | – |
| – | X 55 CrMo 14 | – | – | – | – | Z 50 CD 13 | – | – | – | – | 1.4110 | – |
| X 60 CrMnMoVNbN | Z 60 CMDVNb | |||||||||||
| – | 21 10 | – | – | – | – | 21-10 Az | – | – | – | – | 1.4785 | – |
| 440 A | X 65 CrMo 14 | – | SUS 440A | S44002 | X 70 CrMo 15 | Z 70 CD 14 | – | – | – | – | 1.4109 | ATI 440A™ |
| – | X 7 CrNiAl 17 7 | 301 S 81 | SUS 631 | S17700 | X 7 CrNiAl 17-7 | X7CrNiAl17- 7;Z9CNA17-07 | X 7 CrNiAl 17-7 | 2388 | – | A693 | 1.4568 | – |
| 632 | X 7 CrNiMoAl 15 7 | – | – | S15700 | – | – | – | – | – | – | 1.4574 | PH 15-7 Mo® |
| – | X 8 CrCoNiMo 10 6 | Z 9 CKD 11 | – | – | S152 | Z10CKD10 | – | – | – | – | 14911 | ATI FV535™ |
| 15-7 PH | X 8 CrNiMoAl 15 7 2 | – | – | S15700 | X 8 CrNiMoAl 15-7-2 | Z8CNDA15.07 | X 8 CrNiMoAl 15-7-2 | – | – | A693 | . 1.4532 | ATI 15-7™ |
| HNV 6 | X 80 CrNiSi 20 | 443 S 65 | SUH 4 | S65006 | X 80 CrNiSi 20 | Z 80 CSN 20.02 | X 80 CrSiNi 20 | – | – | – | 1.4747 | – |
| – | X 85 CrMoV 18 2 | – | – | – | X 85 CrMoV 18 2 | Z 85 CDMV 18.02 | X 85 CrMoV 19 3 | – | – | – | 1.4748 | – |
| 440 B | X 90 CrMoV 18 | 409 S 1 9 | SUS 440 B | S44003 | X 90 CrMoV 18 | Z 3 CT 1 2 | X 6 Cr Ti 1 2 | – | – | – | 14112 | – |
| – | X45CrNiW18-9 | 331 S 40 | SUH31 | – | X 45 CrNiW 18 9 | Z35CNWS14.14 | X45CrNiW18-9 | – | – | – | . 1.4873 | – |
