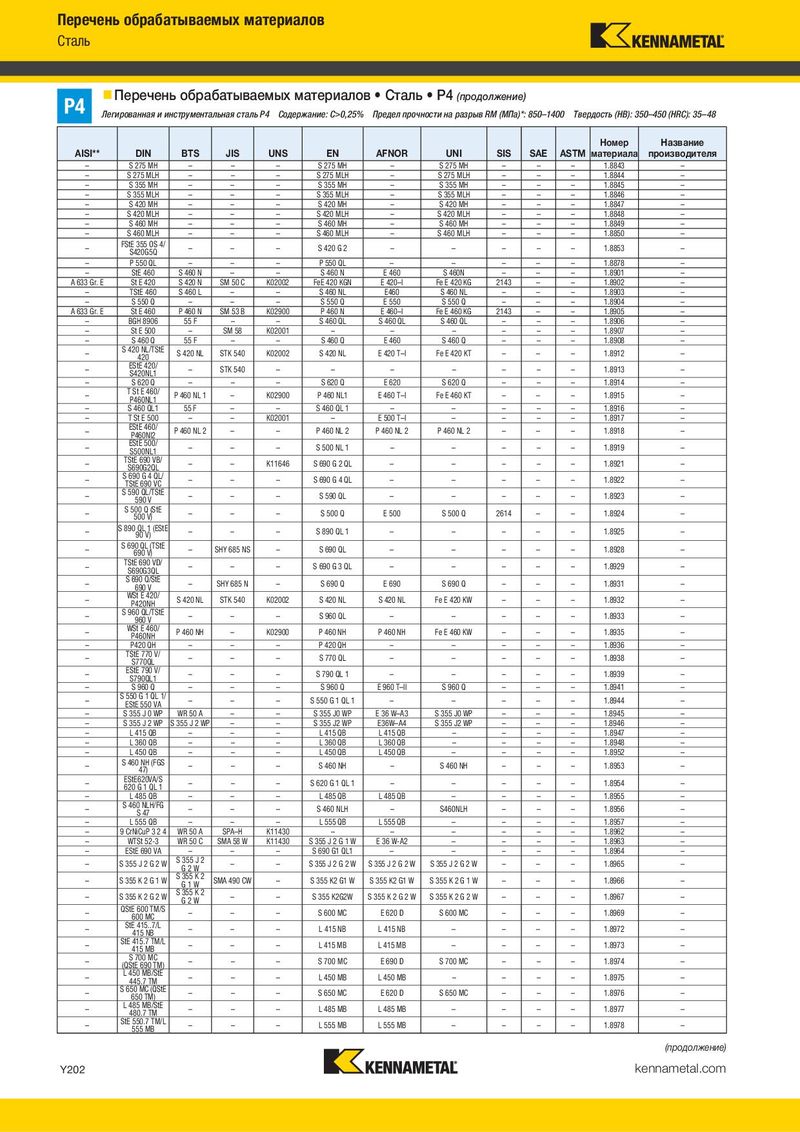

Перечень обрабатываемых материалов • Сталь • P4 (продолжение) Перечень обрабатываемых материалов • Сталь • P4 (продолжение)
P4 P4
Легированная и инструментальная сталь P4 Содержание: C>0,25% Предел прочности на разрыв RM (МПа)*: 850–1400 Твердость (HB): 350–450 (HRC): 35–48 Легированная и инструментальная сталь P4 Содержание: C>0,25% Предел прочности на разрыв RM (МПа)*: 850–1400 Твердость (HB): 350–450 (HRC): 35–48
Номер Название Номер Название
| AISI** | DIN | BTS | JIS | UNS | EN | AFNOR | UNI | SIS | SAE ASTM материала | производителя | |||
| – | S 275 MH | – | – | – | S 275 MH | – | S 275 MH | – | – | – | 1.8843 | – | |
| – | S 275 MLH | – | – | – | S 275 MLH | – | S 275 MLH | – | – | – | 1.8844 | – | |
| – | S 355 MH | – | – | – | S 355 MH | – | S 355 MH | – | – | – | 1.8845 | – | |
| – | S 355 MLH | – | – | – | S 355 MLH | – | S 355 MLH | – | – | – | 1.8846 | – | |
| – | S 420 MH | – | – | – | S 420 MH | – | S 420 MH | – | – | – | 1.8847 | – | |
| – | S 420 MLH | – | – | – | S 420 MLH | – | S 420 MLH | – | – | – | 1.8848 | – | |
| – | S 460 MH | – | – | – | S 460 MH | – | S 460 MH | – | – | – | 1.8849 | – | |
| – | S 460 MLH | – | – | – | S 460 MLH | – | S 460 MLH | – | – | – | 1.8850 | – | |
| FStE 355 OS 4/ | |||||||||||||
| – | – | – | – | S 420 G 2 | – | – | – | – | – | 1.8853 | – | ||
| S420G5Q | |||||||||||||
| – | P 550 QL | – | – | – | P 550 QL | – | – | – | – | – | 1.8878 | – | |
| – | StE 460 | S 460 N | – | – | S 460 N | E 460 | S 460N | – | – | – | 1.8901 | – |
| AISI** | DIN | BTS | JIS | UNS | EN | AFNOR | UNI | SIS | SAE ASTM | материала | производителя | |||
| A 570 Gr. 50 | St 50-2 | 4360-50 B | SS 50 | – | E 295 | A 50–2 | Fe 490 | 2172 | – | – | 1.0050 | – | ||
| – | St 60-2 | 4360–55 E | SM 58 | – | E 335 | A 60-2 | Fe 60–2 | 1650 | – | – | 1.0060 | – | ||
| – | St 70-2 | E 360 | – | – | E 360 | A 70-2 | Fe 70-2 | 1655 | – | – | 1.0070 | – | ||
| – | C4D | – | – | – | C 4 D | FM 5 | C 4 D | – | – | – | 1.0300 | – | ||
| – | C 22 8 | – | – | – | P 250 GH | – | – | – | – | – | 1.0460 | – | ||
| – | H 260/ZSt E 260 | H 240 LA | – | – | H 240 LA | E 240 C | – | – | – | – | 1.0480 | – | ||
| – | ZStE 380/H 380 | H 360 L A | – | – | H 360 LA | E 355 C | – | – | – | – | 1.0550 | – | ||
| – | GL-E - 40 (S 390 | – | – | – | S 390 G 3 S | – | – | – | – | – | 1.0560 | – | ||
| G 3 S) | ||||||||||||||
| – | C60D | – | – | – | C 60 D | FM 60 | C 60 D | – | – | – | 1.0610 | – | ||
| – | C 64/64 Mn 3 | – | – | – | C 64 | – | – | – | – | – | 1.0640 | – | ||
| – | 38 SMn 28 | 38 SMn 28 | – | – | 38 SMn 28 | 38 SMn 28 | – | – | – | – | 1.0760 | – |
| AISI | DIN | BTS | JIS | UNS | EN | AFNOR | UNI | SIS | SAE | ASTM | Номер материала | Название производителя |
| – | S 275 MH S 275 MLH | – | – | – | S 275 MH S 275 MLH | – | S 275 MH S 275 MLH | – | – | – | 1.8843 18844 | – |
| – – | S 355 MH | – – | – – | – – | S 355 MH | – – | S 355 MH | – – | – – | – – | . 1.8845 | – – |
| – | S 355 MLH | – | – | – | S 355 MLH | – | S 355 MLH | – | – | – | 1.8846 | – |
| – | S 420 MH | – | – | – | S 420 MH | – | S 420 MH | – | – | – | 1.8847 | – |
| – – | S 420 MLH S 460 MH | – – | – – | – – | S 420 MLH S 460 MH | – – | S 420 MLH S 460 MH | – – | – – | – – | 1.8848 1.8849 | – – |
| – | S 460 MLH | – | – | – | S 460 MLH | – | S 460 MLH | – | – | – | 1.8850 | – |
| – | FStE 355 OS 4/ S420G5Q | – | – | – | S 420 G 2 | – | – | – | – | – | 1.8853 | – |
| – – | P 550 QL StE 460 | – S 460 N | – – | – – | P 550 QL S 460 N | – E 460 | – S 460N | – – | – – | – – | 1.8878 1.8901 | – – |
| A 633 Gr. E – | St E 420 TStE 460 | S 420 N S 460 L | SM 50 C – | K02002 – | FeE 420 KGN S 460 NL | E 420–I E460 | Fe E 420 KG S 460 NL | 2143 – | – – | – – | 1.8902 1.8903 | – – |
| – A 633 Gr. E | S 550 Q St E 460 | – P 460 N | – SM 53 B | – K02900 | S 550 Q P 460 N | E 550 E 460–I | S 550 Q Fe E 460 KG | – 2143 | – – | – – | 1.8904 1.8905 | – – |
| – | BGH 8906 | 55 F | – | – | S 460 QL | S 460 QL | S 460 QL | – | – | – | 1.8906 | – |
| – – | St E 500 S 460 Q | – 55 F | SM 58 – | K02001 – | – S 460 Q | – E 460 | – S 460 Q | – – | – – | – – | 1.8907 1.8908 | – – |
| – | S 420 NL/TStE 420 | S 420 NL | STK 540 | K02002 | S 420 NL | E 420 T–I | Fe E 420 KT | – | – | – | 1.8912 | – |
| – | EStE 420/ S420NL1 | – | STK 540 | – | – | – | – | – | – | – | 1.8913 | – |
| – | S 620 Q | – | – | – | S 620 Q | E 620 | S 620 Q | – | – | – | 1.8914 | – |
| – | T St E 460/ P460NL1 | P 460 NL 1 | – | K02900 | P 460 NL1 | E 460 T–I | Fe E 460 KT | – | – | – | 1.8915 | – |
| – – | S 460 QL1 T St E 500 | 55 F – | – – | – K02001 | S 460 QL 1 – | – E 500 T–I | – – | – – | – – | – – | 1.8916 1.8917 | – – |
| – | EStE 460/ P460Nl2 | P 460 NL 2 | – | – | P 460 NL 2 | P 460 NL 2 | P 460 NL 2 | – | – | – | 1.8918 | – |
| – | EStE 500/ S500NL1 | – | – | – | S 500 NL 1 | – | – | – | – | – | 1.8919 | – |
| – | TStE 690 VB/ S690G2QL | – | – | K11646 | S 690 G 2 QL | – | – | – | – | – | 1.8921 | – |
| – | S 690 G 4 QL/ TStE 690 VC | – | – | – | S 690 G 4 QL | – | – | – | – | – | 1.8922 | – |
| – | S 590 QL/TStE 590 V | – | – | – | S 590 QL | – | – | – | – | – | 1.8923 | – |
| – | S 500 Q (StE 500 V) | – | – | – | S 500 Q | E 500 | S 500 Q | 2614 | – | – | 1.8924 | – |
| – | S 890 QL 1 (EStE 90 V) | – | – | – | S 890 QL 1 | – | – | – | – | – | 1.8925 | – |
| – | S 690 QL (TStE 690 V) | – | SHY 685 NS | – | S 690 QL | – | – | – | – | – | 1.8928 | – |
| – | TStE 690 VD/ S690G3QL | – | – | – | S 690 G 3 QL | – | – | – | – | – | 1.8929 | – |
| – | S 690 Q/StE 690 V | – | SHY 685 N | – | S 690 Q | E 690 | S 690 Q | – | – | – | 1.8931 | – |
| – | WSt E 420/ P420NH | S 420 NL | STK 540 | K02002 | S 420 NL | S 420 NL | Fe E 420 KW | – | – | – | 1.8932 | – |
| – | S 960 QL/TStE 960 V | – | – | – | S 960 QL | – | – | – | – | – | 1.8933 | – |
| – | WSt E 460/ P460NH | P 460 NH | – | K02900 | P 460 NH | P 460 NH | Fe E 460 KW | – | – | – | 1.8935 | – |
| – | P420 QH | – | – | – | P 420 QH | – | – | – | – | – | 1.8936 | – |
| – | TStE 770 V/ S770QL | – | – | – | S 770 QL | – | – | – | – | – | 1.8938 | – |
| – | EStE 790 V/ S790QL1 | – | – | – | S 790 QL 1 | – | – | – | – | – | 1.8939 | – |
| – | S 960 Q S 550 G 1 QL 1/ | – | – | – | S 960 Q | E 960 T–II | S 960 Q | – | – | – | 1.8941 | – |
| – | EStE 550 VA | – | – | – | S 550 G 1 QL 1 | – | – | – | – | – | 1.8944 | – |
| – – | S 355 J 0 WP S 355 J 2 WP | WR 50 A S 355 J 2 WP | – – | – – | S 355 J0 WP S 355 J2 WP | E 36 W–A3 E36W–A4 | S 355 J0 WP S 355 J2 WP | – – | – – | – – | 1.8945 18946 | – – |
| – – | L 415 QB L 360 QB | – – | – – | – – | L 415 QB L 360 QB | L 415 QB L 360 QB | – – | – – | – – | – – | . 1.8947 18948 | – – |
| – | L 450 QB | – | – | – | L 450 QB | L 450 QB | – | – | – | – | . 1.8952 | – |
| – | S 460 NH (FGS 47) | – | – | – | S 460 NH | – | S 460 NH | – | – | – | 1.8953 | – |
| – | EStE620VA/S 620 G 1 QL 1 | – | – | – | S 620 G 1 QL 1 | – | – | – | – | – | 1.8954 | – |
| – | L 485 QB S 460 NLH/FG | – | – | – | L 485 QB | L 485 QB | – | – | – | – | 1.8955 | – |
| – | S 47 | – | – | – | S 460 NLH | – | S460NLH | – | – | – | 1.8956 | – |
| – – | L 555 QB 9 CrNiCuP 3 2 4 | – WR 50 A | – SPA–H | – K11430 | L 555 QB – | L 555 QB – | – – | – – | – – | – – | 1.8957 18962 | – – |
| – – | WTSt 52-3 EStE 690 VA | WR 50 C – | SMA 58 W – | K11430 – | S 355 J 2 G 1 W S 690 G1 QL1 | E 36 W-A2 – | – – | – – | – – | – – | . 1.8963 18964 | – – |
| – | S 355 J 2 G 2 W | S 355 J 2 G 2 W | – | – | S 355 J 2 G 2 W | S 355 J 2 G 2 W | S 355 J 2 G 2 W | – | – | – | . 1.8965 | – |
| – | S 355 K 2 G 1 W | S 355 K 2 G 1 W | SMA 490 CW | – | S 355 K2 G1 W | S 355 K2 G1 W | S 355 K 2 G 1 W | – | – | – | 1.8966 | – |
| – | S 355 K 2 G 2 W | S 355 K 2 G 2 W | – | – | S 355 K2G2W | S 355 K 2 G 2 W | S 355 K 2 G 2 W | – | – | – | 1.8967 | – |
| – | QStE 600 TM/S 600 MC | – | – | – | S 600 MC | E 620 D | S 600 MC | – | – | – | 1.8969 | – |
| – | StE 415..7/L 415 NB | – | – | – | L 415 NB | L 415 NB | – | – | – | – | 1.8972 | – |
| – | StE 415.7 TM/L 415 MB | – | – | – | L 415 MB | L 415 MB | – | – | – | – | 1.8973 | – |
| – | S 700 MC (QStE 690 TM) | – | – | – | S 700 MC | E 690 D | S 700 MC | – | – | – | 1.8974 | – |
| – | L 450 MB/StE 445.7 TM | – | – | – | L 450 MB | L 450 MB | – | – | – | – | 1.8975 | – |
| – | S 650 MC (QStE 650 TM) | – | – | – | S 650 MC | E 620 D | S 650 MC | – | – | – | 1.8976 | – |
| – | L 485 MB/StE 4807 TM | – | – | – | L 485 MB | L 485 MB | – | – | – | – | 1.8977 | – |
| – | . StE 550.7 TM/L 555 MB | – | – | – | L 555 MB | L 555 MB | – | – | – | – | 1.8978 | – |
