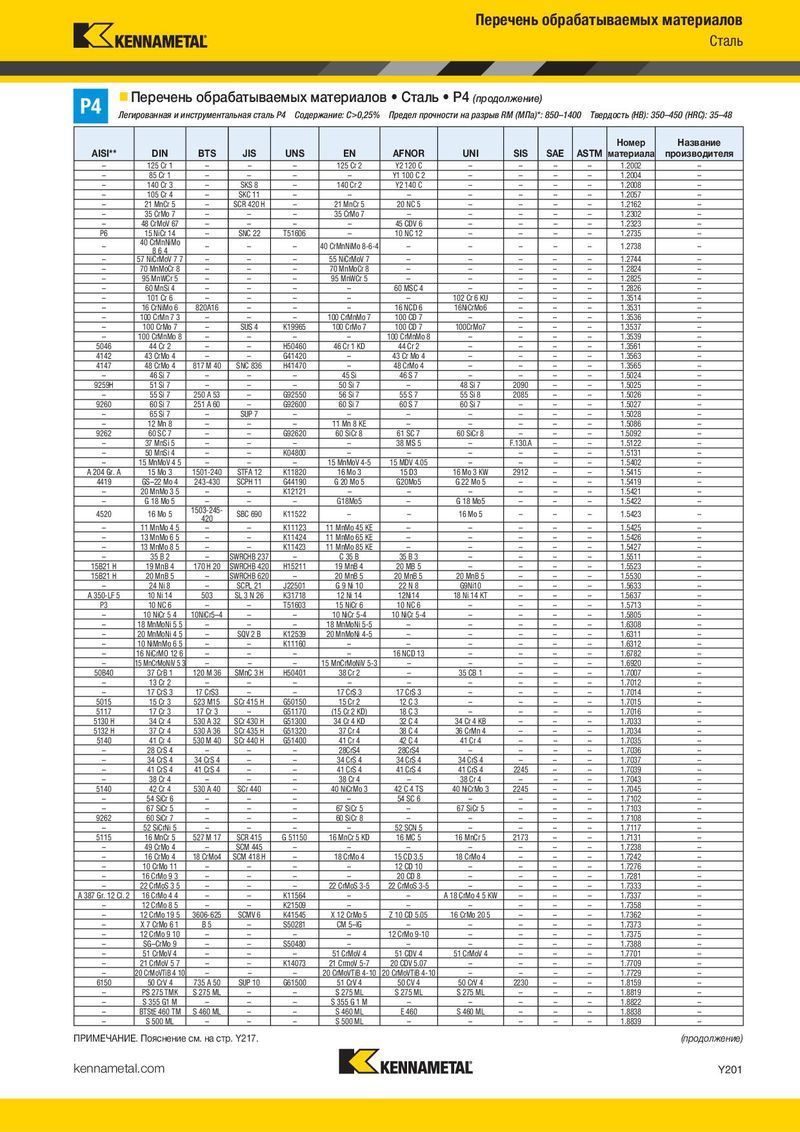

Перечень обрабатываемых материалов • Сталь • P4 (продолжение) Перечень обрабатываемых материалов • Сталь • P4 (продолжение)
P4 P4
Легированная и инструментальная сталь P4 Содержание: C>0,25% Предел прочности на разрыв RM (МПа)*: 850–1400 Твердость (HB): 350–450 (HRC): 35–48 Легированная и инструментальная сталь P4 Содержание: C>0,25% Предел прочности на разрыв RM (МПа)*: 850–1400 Твердость (HB): 350–450 (HRC): 35–48
Номер Название Номер Название
| AISI** | DIN | BTS | JIS | UNS | EN | AFNOR | UNI | SIS | SAE | ASTM | материала производителя | |||||
| – | C62D | – | SWRH 62 B | – | C 62 D | FM 62 | C 62 D | – | – | – | 1.0611 | – | ||||
| – | C66D | – | – | – | C 66 D | FM 66 | C 66 D | – | – | – | 1.0612 | – | ||||
| – | C68D | – | SWRH 67 B | – | C 68 D | FM 68 | C 68 D | – | – | – | 1.0613 | – | ||||
| – | C70D | – | – | – | C 70 D | FM 70 | C 70 D | – | – | – | 1.0615 | – | ||||
| – | C72D | – | SWRH 72 B | – | C 72 D | FM 72 | C 72 D | – | – | – | 1.0617 | – | ||||
| – | GS–C 25 | – | SCPH 1 | – | GP 240 GH | GP 240 GH | GP 240 Gh | – | – | – | 1.0619 | – | ||||
| – | GP 240 GR | – | – | – | GP 240 GR | GP 240 GR | GP 240 GR | – | – | – | 1.0621 | – | ||||
| – | C80D | – | – | – | C 80 D | FM 80 | C 80 D | – | – | – | 1.0622 | – | ||||
| – | StSch 900 A (R 0900) | – | – | – | R 0900 | – | – | – | – | – | 1.0623 | – | ||||
| – | StSch 900 B (R 0900 Mn) | – | – | – | R 0900 Mn | – | – | – | – | – | 1.0624 | – | ||||
| 1345 | StSch 90 C/GP 280 GH | – | – | G13450 | GP 280 GH | GP 280 GH | GP 280 GH | – | – | – | 1.0625 | – | ||||
| – | C82D | – | SWRH 82 B | – | C 82 D | FM 82 | C 82 D | – | – | – | 1.0626 | – | ||||
| – | C88D | – | – | – | C 88 D | – | C 88 D | – | – | – | 1.0628 | – |
| AISI** | DIN | BTS | JIS | UNS | EN | AFNOR | UNI | SIS | SAE ASTM материала | производителя | ||||
| – | 125 Cr 1 | – | – | – | 125 Cr 2 | Y2 120 C | – | – | – | – | 1.2002 | – | ||
| – | 85 Cr 1 | – | – | – | – | Y1 100 C 2 | – | – | – | – | 1.2004 | – | ||
| – | 140 Cr 3 | – | SKS 8 | – | 140 Cr 2 | Y2 140 C | – | – | – | – | 1.2008 | – | ||
| – | 105 Cr 4 | – | SKC 11 | – | – | – | – | – | – | – | 1.2057 | – | ||
| – | 21 MnCr 5 | – | SCR 420 H | – | 21 MnCr 5 | 20 NC 5 | – | – | – | – | 1.2162 | – | ||
| – | 35 CrMo 7 | – | – | – | 35 CrMo 7 | – | – | – | – | – | 1.2302 | – | ||
| – | 48 CrMoV 67 | – | – | – | – | 45 CDV 6 | – | – | – | – | 1.2323 | – | ||
| P6 | 15 NiCr 14 | – | SNC 22 | T51606 | – | 10 NC 12 | – | – | – | – | 1.2735 | – | ||
| – | 40 CrMnNiMo | – | – | – | 40 CrMnNiMo 8-6-4 | – | – | – | – | – | 1.2738 | – | ||
| 8 6 4 | ||||||||||||||
| – | 57 NiCrMoV 7 7 | – | – | – | 55 NiCrMoV 7 | – | – | – | – | – | 1.2744 | – | ||
| – | 70 MnMoCr 8 | – | – | – | 70 MnMoCr 8 | – | – | – | – | – | 1.2824 | – |
| AISI | DIN | BTS | JIS | UNS | EN | AFNOR | UNI | SIS | SAE | ASTM | Номер материала | Название производителя |
| – | 125 Cr 1 | – | – | – | 125 Cr 2 | Y2 120 C | – | – | – | – | 1.2002 | – |
| – – | 85 Cr 1 140 Cr 3 | – – | – SKS 8 | – – | – 140 Cr 2 | Y1 100 C 2 Y2 140 C | – – | – – | – – | – – | 1.2004 1.2008 | – – |
| – – | 105 Cr 4 21 MnCr 5 | – – | SKC 11 SCR 420 H | – – | – 21 MnCr 5 | – 20 NC 5 | – – | – – | – – | – – | 1.2057 1.2162 | – – |
| – | 35 CrMo 7 | – | – | – | 35 CrMo 7 | – | – | – | – | – | 1.2302 | – |
| – P6 | 48 CrMoV 67 15 NiCr 14 | – – | – SNC 22 | – T51606 | – – | 45 CDV 6 10 NC 12 | – – | – – | – – | – – | 1.2323 1.2735 | – – |
| – | 40 CrMnNiMo 8 6 4 | – | – | – | 40 CrMnNiMo 8-6-4 | – | – | – | – | – | 1.2738 | – |
| – – | 57 NiCrMoV 7 7 70 MnMoCr 8 | – – | – – | – – | 55 NiCrMoV 7 70 MnMoCr 8 | – – | – – | – – | – – | – – | 1.2744 1.2824 | – – |
| – – | 95 MnWCr 5 60 MnSi 4 | – – | – – | – – | 95 MnWCr 5 – | – 60 MSC 4 | – – | – – | – – | – – | 1.2825 1.2826 | – – |
| – – | 101 Cr 6 16 CrNiMo 6 | – 820A16 | – – | – – | – – | – 16 NCD 6 | 102 Cr 6 KU 16NiCrMo6 | – – | – – | – – | 1.3514 1.3531 | – – |
| – | 100 CrMn 7 3 | – | – | – | 100 CrMnMo 7 | 100 CD 7 | – | – | – | – | 1.3536 | – |
| – | 100 CrMo 7 | – | SUS 4 | K19965 | 100 CrMo 7 | 100 CD 7 | 100CrMo7 | – | – | – | 1.3537 | – |
| – 5046 | 100 CrMnMo 8 44 Cr 2 | – – | – – | – H50460 | – 46 Cr 1 KD | 100 CrMnMo 8 44 Cr 2 | – – | – – | – – | – – | 1.3539 1.3561 | – – |
| 4142 4147 – | 43 CrMo 4 48 CrMo 4 46 Si 7 | – 817 M 40 – | – SNC 836 – | G41420 H41470 – | – – 45 Si | 43 Cr Mo 4 48 CrMo 4 46 S 7 | – – – | – – – | – – – | – – – | 1.3563 1.3565 1.5024 | – – – |
| 9259H | 51 Si 7 | – | – | – | 50 Si 7 | – | 48 Si 7 | 2090 | – | – | 1.5025 | – |
| – 9260 – | 55 Si 7 60 Si 7 65 Si 7 | 250 A 53 251 A 60 – | – – SUP 7 | G92550 G92600 – | 56 Si 7 60 Si 7 – | 55 S 7 60 S 7 – | 55 Si 8 60 Si 7 – | 2085 – – | – – – | – – – | 1.5026 1.5027 15028 | – – – |
| – | 12 Mn 8 | – | – | – | 11 Mn 8 KE | – | – | – | – | – | . 15086 | – |
| 9262 | 60 SC 7 | – | – | G92620 | 60 SiCr 8 | 61 SC 7 | 60 SiCr 8 | – | – | – | . 1.5092 | – |
| – | 37 MnSi 5 | – | – | – | – | 38 MS 5 | – | F.130.A | – | – | 1.5122 | – |
| – – | 50 MnSi 4 15 MnMoV 4 5 | – – | – – | K04800 – | – 15 MnMoV 4-5 | – 15 MDV 4.05 | – – | – – | – – | – – | 1.5131 1.5402 | – – |
| A 204 Gr. A 4419 | 15 Mo 3 GS–22 Mo 4 | 1501-240 243-430 | STFA 12 SCPH 11 | K11820 G44190 | 16 Mo 3 G 20 Mo 5 | 15 D3 G20Mo5 | 16 Mo 3 KW G 22 Mo 5 | 2912 – | – – | – – | 1.5415 1.5419 | – – |
| – – | 20 MnMo 3 5 G 18 Mo 5 | – – | – – | K12121 – | – G18Mo5 | – – | – G 18 Mo5 | – – | – – | – – | 1.5421 1.5422 | – – |
| 4520 | 16 Mo 5 | 1503-245- 420 | SBC 690 | K11522 | – | – | 16 Mo 5 | – | – | – | 1.5423 | – |
| – – | 11 MnMo 4 5 13 MnMo 6 5 | – – | – – | K11123 K11424 | 11 MnMo 45 KE 11 MnMo 65 KE | – – | – – | – – | – – | – – | 1.5425 1.5426 | – – |
| – | 13 MnMo 8 5 | – | – | K11423 | 11 MnMo 85 KE | – | – | – | – | – | 1.5427 | – |
| – 15B21 H | 35 B 2 19 MnB 4 | – 170 H 20 | SWRCHB 237 SWRCHB 420 | – H15211 | C 35 B 19 MnB 4 | 35 B 3 20 MB 5 | – – | – – | – – | – – | 1.5511 1.5523 | – – |
| 15B21 H | 20 MnB 5 24 Ni 8 | – | SWRCHB 620 SCPL 21 | – J22501 | 20 MnB 5 G 9 Ni 10 | 20 MnB 5 22 N 8 | 20 MnB 5 G9Ni10 | – | – | – | 1.5530 15633 | – |
| – A 350-LF 5 | 10 Ni 14 | – 503 | SL 3 N 26 | K31718 | 12 Ni 14 | 12Ni14 | 18 Ni 14 KT | – – | – – | – – | . 1.5637 | – – |
| P3 – | 10 NC 6 10 NiCr 5 4 | – 10NiCr5–4 | – – | T51603 – | 15 NiCr 6 10 NiCr 5-4 | 10 NC 6 10 NiCr 5-4 | – – | – – | – – | – – | 1.5713 1.5805 | – – |
| – – | 18 MnMoNi 5 5 20 MnMoNi 4 5 | – – | – SQV 2 B | – K12539 | 18 MnMoNi 5-5 20 MnMoNi 4-5 | – – | – – | – – | – – | – – | 1.6308 1.6311 | – – |
| – – – | 10 NiMnMo 6 5 16 NiCrMO 12 6 15 MnCrMoNiV 5 3 | – – – | – – – | K11160 – – | – – 15 MnCrMoNiV 5-3 | – 16 NCD 13 – | – – – | – – – | – – – | – – – | 1.6312 1.6782 1.6920 | – – – |
| 50B40 – | 37 CrB 1 13 Cr 2 | 120 M 36 – | SMnC 3 H – | H50401 – | 38 Cr 2 – | – – | 35 CB 1 – | – – | – – | – – | 1.7007 17012 | – – |
| – 5015 | 17 CrS 3 15 C 3 | 17 CrS3 523 M15 | – SC 415 H | – G50150 | 17 CrS 3 15 C 2 | 17 CrS 3 12 C 3 | – | – | – | – | . 1.7014 17015 | – |
| r | r | r | – | – | – | – | . | – | ||||
| 5117 5130 H 5132 H | 17 Cr 3 34 Cr 4 37 Cr 4 | 17 Cr 3 530 A 32 530 A 36 | – SCr 430 H SCr 435 H | G51170 G51300 G51320 | (15 Cr 2 KD) 34 Cr 4 KD 37 Cr 4 | 18 C 3 32 C 4 38 C 4 | – 34 Cr 4 KB 36 CrMn 4 | – – – | – – – | – – – | 1.7016 1.7033 1.7034 | – – – |
| 5140 | 41 Cr 4 | 530 M 40 | SCr 440 H | G51400 | 41 Cr 4 | 42 C 4 | 41 Cr 4 | – | – | – | 1.7035 | – |
| – – | 28 CrS 4 34 CrS 4 | – 34 CrS 4 | – – | – – | 28CrS4 34 CrS 4 | 28CrS4 34 CrS 4 | – 34 CrS 4 | – – | – – | – – | 1.7036 1.7037 | – – |
| – – | 41 CrS 4 38 Cr 4 | 41 CrS 4 – | – – | – – | 41 CrS 4 38 Cr 4 | 41 CrS 4 – | 41 CrS 4 38 Cr 4 | 2245 – | – – | – – | 1.7039 17043 | – – |
| 5140 – | 42 Cr 4 54 SiCr 6 | 530 A 40 – | SCr 440 – | – – | 40 NiCrMo 3 – | 42 C 4 TS 54 SC 6 | 40 NiCrMo 3 – | 2245 – | – – | – – | . 1.7045 17102 | – – |
| – | 67 SiCr 5 | – | – | – | 67 SiCr 5 | – | 67 SiCr 5 | – | – | – | . 17103 | – |
| 9262 | 60 SiCr 7 | – | – | – | 60 SiCr 8 | – | – | – | – | – | . 1.7108 | – |
| – 5115 | 52 SiCrNi 5 16 MnCr 5 | – 527 M 17 | – SCR 415 | – G 51150 | – 16 MnCr 5 KD | 52 SCN 5 16 MC 5 | – 16 MnCr 5 | – 2173 | – – | – – | 1.7117 1.7131 | – – |
| – | 49 CrMo 4 | – | SCM 445 | – | – | – | – | – | – | – | 1.7238 | – |
| – | 16 CrMo 4 | 18 CrMo4 | SCM 418 H | – | 18 CrMo 4 | 15 CD 3.5 | 18 CrMo 4 | – | – | – | 1.7242 | – |
| – – – | 10 CrMo 11 16 CrMo 9 3 22 CrMoS 3 5 | – – – | – – – | – – – | – – 22 CrMoS 3-5 | 12 CD 10 20 CD 8 22 CrMoS 3-5 | – – – | – – – | – – – | – – – | 1.7276 1.7281 1.7333 | – – – |
| A 387 Gr. 12 Cl. 2 – | 16 CrMo 4 4 12 CrMo 8 5 | – – | – – | K11564 K21509 | – – | – – | A 18 CrMo 4 5 KW – | – – | – – | – – | 1.7337 1.7358 | – – |
| – | 12 CrMo 19 5 | 3606-625 | SCMV 6 | K41545 | X 12 CrMo 5 | Z 10 CD 505 | 16 CrMo 20 5 | – | – | – | 17362 | – |
| – | X 7 CrMo 6 1 12 CM 9 10 | B 5 | – | S50281 | CM 5–IG | . – 12 CM 910 | – | – | – | – | . 1.7373 17375 | – |
| – | ro | – | – | – | – | ro- | – | – | – | – | . | – |
| – – | SG–CrMo 9 51 CrMoV 4 | – – | – – | S50480 – | – 51 CrMoV 4 | – 51 CDV 4 | – 51 CrMoV 4 | – – | – – | – – | 1.7388 1.7701 | – – |
| – | 21 CrMoV 5 7 | – | – | K14073 | 21 CrmoV 5-7 | 20 CDV 5.07 | – | – | – | – | 1.7709 | – |
| – 6150 | 20 CrMoVTiB 4 10 50 CrV 4 | – 735 A 50 | – SUP 10 | – G61500 | 20 CrMoVTiB 4-10 51 CrV 4 | 20 CrMoVTiB 4-10 50 CV 4 | – 50 CrV 4 | – 2230 | – – | – – | 1.7729 1.8159 | – – |
| – – | PS 275 TMK S 355 G1 M | S 275 ML – | – – | – – | S 275 ML S 355 G 1 M | S 275 ML – | S 275 ML – | – – | – – | – – | 1.8819 1.8822 | – – |
| – – | BTStE 460 TM S 500 ML | S 460 ML – | – – | – – | S 460 ML S 500 ML | E 460 – | S 460 ML – | – – | – – | – – | 1.8838 1.8839 | – – |
