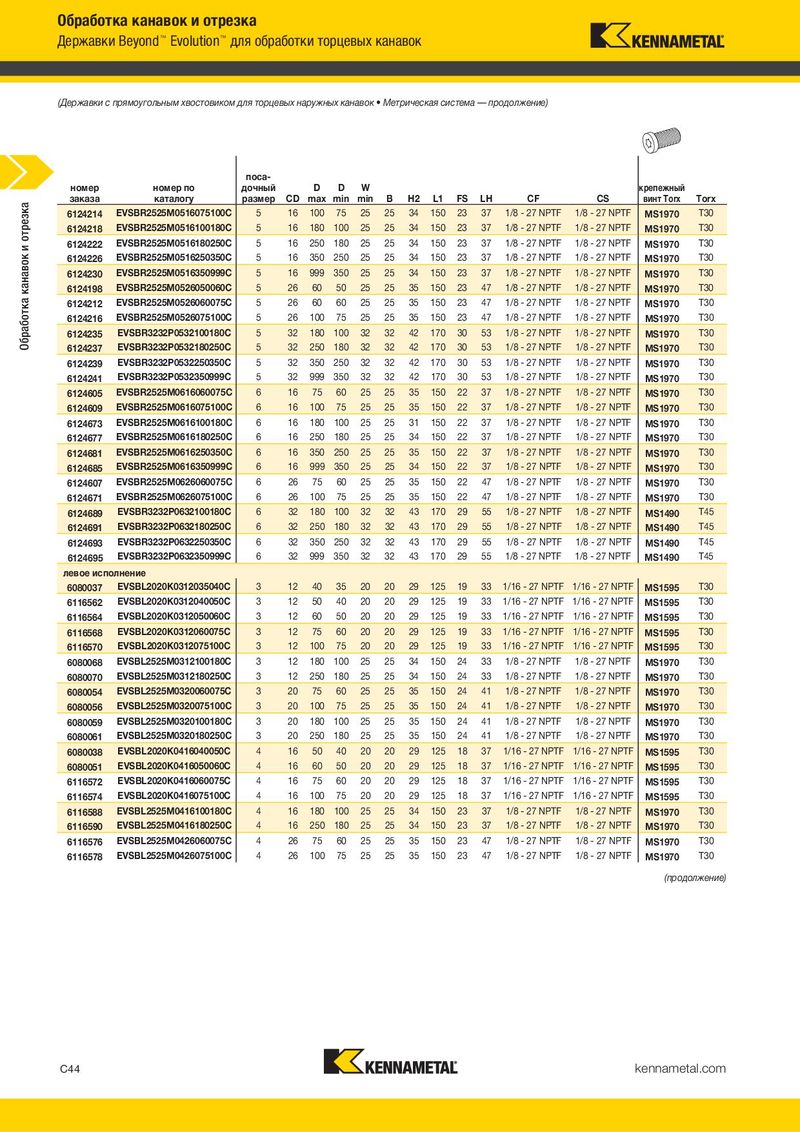

Державки Beyond™ Evolution™ для обработки торцевых канавок Державки Beyond™ Evolution ™ для обработки торцевых канавок
(Державки с прямоугольным хвостовиком для торцевых наружных канавок • Метрическая система — продолжение) (Державки с прямоугольным хвостовиком для торцевых наружных канавок • Метрическая система — продолжение)
поса- поса-
| номер | дочный номер по | D | D | W | крепежный | ||||||||||
| заказа | размер каталогу | CD | max | min | min | B | H2 | L1 | FS | LH | CF | CS винт Torx | Torx | ||
| 6124214 | EVSBR2525M0516075100C | 5 | 16 | 100 | 75 | 25 | 25 | 34 | 150 | 23 | 37 | 1/8 - 27 NPTF | 1/8 - 27 NPTF | MS1970 | T30 |
| 6124218 | EVSBR2525M0516100180C | 5 | 16 | 180 100 | 25 | 25 | 34 | 150 | 23 | 37 | 1/8 - 27 NPTF | 1/8 - 27 NPTF | MS1970 | T30 | |
| 6124222 | EVSBR2525M0516180250C | 5 | 16 | 250 180 | 25 | 25 | 34 | 150 | 23 | 37 | 1/8 - 27 NPTF | 1/8 - 27 NPTF | MS1970 | T30 | |
| 6124226 | EVSBR2525M0516250350C | 5 | 16 | 350 250 | 25 | 25 | 34 | 150 | 23 | 37 | 1/8 - 27 NPTF | 1/8 - 27 NPTF | MS1970 | T30 | |
| 6124230 | EVSBR2525M0516350999C | 5 | 16 | 999 350 | 25 | 25 | 34 | 150 | 23 | 37 | 1/8 - 27 NPTF | 1/8 - 27 NPTF | MS1970 | T30 | |
| 6124198 | EVSBR2525M0526050060C | 5 | 26 | 60 | 50 | 25 | 25 | 35 | 150 | 23 | 47 | 1/8 - 27 NPTF | 1/8 - 27 NPTF | MS1970 | T30 |
| 6124212 | EVSBR2525M0526060075C | 5 | 26 | 60 | 60 | 25 | 25 | 35 | 150 | 23 | 47 | 1/8 - 27 NPTF | 1/8 - 27 NPTF | MS1970 | T30 |
| 6124216 | EVSBR2525M0526075100C | 5 | 26 | 100 | 75 | 25 | 25 | 35 | 150 | 23 | 47 | 1/8 - 27 NPTF | 1/8 - 27 NPTF | MS1970 | T30 |
| 6124235 | EVSBR3232P0532100180C | 5 | 32 | 180 100 | 32 | 32 | 42 | 170 | 30 | 53 | 1/8 - 27 NPTF | 1/8 - 27 NPTF | MS1970 | T30 | |
| 6124237 | EVSBR3232P0532180250C | 5 | 32 | 250 180 | 32 | 32 | 42 | 170 | 30 | 53 | 1/8 - 27 NPTF | 1/8 - 27 NPTF | MS1970 | T30 |
| номер | дочный номер по | D | D | W | крепежный | ||||||||||
| заказа | размер каталогу | CD | max | min | min | B | H2 | L1 | FS | LH | CF | CS винт Torx | Torx | ||
| 6116580 | EVSBL2525M0426100180C | 4 | 26 | 180 100 | 25 | 25 | 35 | 150 | 23 | 47 | 1/8 - 27 NPTF | 1/8 - 27 NPTF | MS1970 | T30 | |
| 6116582 | EVSBL2525M0426180250C | 4 | 26 | 250 180 | 25 | 25 | 35 | 150 | 23 | 47 | 1/8 - 27 NPTF | 1/8 - 27 NPTF | MS1970 | T30 | |
| 6080039 | EVSBL2525M0516050060C | 5 | 16 | 60 | 50 | 25 | 25 | 34 | 150 | 23 | 37 | 1/8 - 27 NPTF | 1/8 - 27 NPTF | MS1970 | T30 |
| 6124211 | EVSBL2525M0516060075C | 5 | 16 | 60 | 60 | 25 | 25 | 34 | 150 | 23 | 37 | 1/8 - 27 NPTF | 1/8 - 27 NPTF | MS1970 | T30 |
| 6124215 | EVSBL2525M0516075100C | 5 | 16 | 100 | 75 | 25 | 25 | 34 | 150 | 23 | 37 | 1/8 - 27 NPTF | 1/8 - 27 NPTF | MS1970 | T30 |
| 6124219 | EVSBL2525M0516100180C | 5 | 16 | 180 100 | 25 | 25 | 34 | 150 | 23 | 37 | 1/8 - 27 NPTF | 1/8 - 27 NPTF | MS1970 | T30 | |
| 6124223 | EVSBL2525M0516180250C | 5 | 16 | 250 180 | 25 | 25 | 34 | 150 | 23 | 37 | 1/8 - 27 NPTF | 1/8 - 27 NPTF | MS1970 | T30 | |
| 6124227 | EVSBL2525M0516250350C | 5 | 16 | 350 250 | 25 | 25 | 34 | 150 | 23 | 37 | 1/8 - 27 NPTF | 1/8 - 27 NPTF | MS1970 | T30 | |
| 6124232 | EVSBL2525M0516350999C | 5 | 16 | 999 350 | 25 | 25 | 34 | 150 | 23 | 37 | 1/8 - 27 NPTF | 1/8 - 27 NPTF | MS1970 | T30 | |
| 6124199 | EVSBL2525M0526050060C | 5 | 26 | 60 | 50 | 25 | 25 | 35 | 150 | 23 | 47 | 1/8 - 27 NPTF | 1/8 - 27 NPTF | MS1970 | T30 |
| номер | номер по | поса- дочный | D | D | W | крепежный | |||||||||
| заказа | каталогу | размер | CD | max | min | min | B | H2 | L1 | FS | LH | CF | CS | винт Torx | Torx |
| 6124214 | EVSBR2525M0516075100C | 5 | 16 | 100 | 75 | 25 | 25 | 34 | 150 | 23 | 37 | 1/8 - 27 NPTF | 1/8 - 27 NPTF | MS1970 | T30 |
| 6124218 | EVSBR2525M0516100180C | 5 | 16 | 180 | 100 | 25 | 25 | 34 | 150 | 23 | 37 | 1/8 - 27 NPTF | 1/8 - 27 NPTF | MS1970 | T30 |
| 6124222 | EVSBR2525M0516180250C | 5 | 16 | 250 | 180 | 25 | 25 | 34 | 150 | 23 | 37 | 1/8 - 27 NPTF | 1/8 - 27 NPTF | MS1970 | T30 |
| 6124226 | EVSBR2525M0516250350C | 5 | 16 | 350 | 250 | 25 | 25 | 34 | 150 | 23 | 37 | 1/8 - 27 NPTF | 1/8 - 27 NPTF | MS1970 | T30 |
| 6124230 | EVSBR2525M0516350999C | 5 | 16 | 999 | 350 | 25 | 25 | 34 | 150 | 23 | 37 | 1/8 - 27 NPTF | 1/8 - 27 NPTF | MS1970 | T30 |
| 6124198 | EVSBR2525M0526050060C | 5 | 26 | 60 | 50 | 25 | 25 | 35 | 150 | 23 | 47 | 1/8 - 27 NPTF | 1/8 - 27 NPTF | MS1970 | T30 |
| 6124212 | EVSBR2525M0526060075C | 5 | 26 | 60 | 60 | 25 | 25 | 35 | 150 | 23 | 47 | 1/8 - 27 NPTF | 1/8 - 27 NPTF | MS1970 | T30 |
| 6124216 | EVSBR2525M0526075100C | 5 | 26 | 100 | 75 | 25 | 25 | 35 | 150 | 23 | 47 | 1/8 - 27 NPTF | 1/8 - 27 NPTF | MS1970 | T30 |
| 6124235 | EVSBR3232P0532100180C | 5 | 32 | 180 | 100 | 32 | 32 | 42 | 170 | 30 | 53 | 1/8 - 27 NPTF | 1/8 - 27 NPTF | MS1970 | T30 |
| 6124237 | EVSBR3232P0532180250C | 5 | 32 | 250 | 180 | 32 | 32 | 42 | 170 | 30 | 53 | 1/8 - 27 NPTF | 1/8 - 27 NPTF | MS1970 | T30 |
| 6124239 | EVSBR3232P0532250350C | 5 | 32 | 350 | 250 | 32 | 32 | 42 | 170 | 30 | 53 | 1/8 - 27 NPTF | 1/8 - 27 NPTF | MS1970 | T30 |
| 6124241 | EVSBR3232P0532350999C | 5 | 32 | 999 | 350 | 32 | 32 | 42 | 170 | 30 | 53 | 1/8 - 27 NPTF | 1/8 - 27 NPTF | MS1970 | T30 |
| 6124605 | EVSBR2525M0616060075C | 6 | 16 | 75 | 60 | 25 | 25 | 35 | 150 | 22 | 37 | 1/8 - 27 NPTF | 1/8 - 27 NPTF | MS1970 | T30 |
| 6124609 | EVSBR2525M0616075100C | 6 | 16 | 100 | 75 | 25 | 25 | 35 | 150 | 22 | 37 | 1/8 - 27 NPTF | 1/8 - 27 NPTF | MS1970 | T30 |
| 6124673 | EVSBR2525M0616100180C | 6 | 16 | 180 | 100 | 25 | 25 | 31 | 150 | 22 | 37 | 1/8 - 27 NPTF | 1/8 - 27 NPTF | MS1970 | T30 |
| 6124677 | EVSBR2525M0616180250C | 6 | 16 | 250 | 180 | 25 | 25 | 34 | 150 | 22 | 37 | 1/8 - 27 NPTF | 1/8 - 27 NPTF | MS1970 | T30 |
| 6124681 | EVSBR2525M0616250350C | 6 | 16 | 350 | 250 | 25 | 25 | 35 | 150 | 22 | 37 | 1/8 - 27 NPTF | 1/8 - 27 NPTF | MS1970 | T30 |
| 6124685 | EVSBR2525M0616350999C | 6 | 16 | 999 | 350 | 25 | 25 | 34 | 150 | 22 | 37 | 1/8 - 27 NPTF | 1/8 - 27 NPTF | MS1970 | T30 |
| 6124607 | EVSBR2525M0626060075C | 6 | 26 | 75 | 60 | 25 | 25 | 35 | 150 | 22 | 47 | 1/8 - 27 NPTF | 1/8 - 27 NPTF | MS1970 | T30 |
| 6124671 | EVSBR2525M0626075100C | 6 | 26 | 100 | 75 | 25 | 25 | 35 | 150 | 22 | 47 | 1/8 - 27 NPTF | 1/8 - 27 NPTF | MS1970 | T30 |
| 6124689 | EVSBR3232P0632100180C | 6 | 32 | 180 | 100 | 32 | 32 | 43 | 170 | 29 | 55 | 1/8 - 27 NPTF | 1/8 - 27 NPTF | MS1490 | T45 |
| 6124691 | EVSBR3232P0632180250C | 6 | 32 | 250 | 180 | 32 | 32 | 43 | 170 | 29 | 55 | 1/8 - 27 NPTF | 1/8 - 27 NPTF | MS1490 | T45 |
| 6124693 | EVSBR3232P0632250350C | 6 | 32 | 350 | 250 | 32 | 32 | 43 | 170 | 29 | 55 | 1/8 - 27 NPTF | 1/8 - 27 NPTF | MS1490 | T45 |
| 6124695 | EVSBR3232P0632350999C | 6 | 32 | 999 | 350 | 32 | 32 | 43 | 170 | 29 | 55 | 1/8 - 27 NPTF | 1/8 - 27 NPTF | MS1490 | T45 |
| левое исп | олнение | ||||||||||||||
| 6080037 | EVSBL2020K0312035040C | 3 | 12 | 40 | 35 | 20 | 20 | 29 | 125 | 19 | 33 | 1/16 - 27 NPTF | 1/16 - 27 NPTF | MS1595 | T30 |
| 6116562 | EVSBL2020K0312040050C | 3 | 12 | 50 | 40 | 20 | 20 | 29 | 125 | 19 | 33 | 1/16 - 27 NPTF | 1/16 - 27 NPTF | MS1595 | T30 |
| 6116564 | EVSBL2020K0312050060C | 3 | 12 | 60 | 50 | 20 | 20 | 29 | 125 | 19 | 33 | 1/16 - 27 NPTF | 1/16 - 27 NPTF | MS1595 | T30 |
| 6116568 | EVSBL2020K0312060075C | 3 | 12 | 75 | 60 | 20 | 20 | 29 | 125 | 19 | 33 | 1/16 - 27 NPTF | 1/16 - 27 NPTF | MS1595 | T30 |
| 6116570 | EVSBL2020K0312075100C | 3 | 12 | 100 | 75 | 20 | 20 | 29 | 125 | 19 | 33 | 1/16 - 27 NPTF | 1/16 - 27 NPTF | MS1595 | T30 |
| 6080068 | EVSBL2525M0312100180C | 3 | 12 | 180 | 100 | 25 | 25 | 34 | 150 | 24 | 33 | 1/8 - 27 NPTF | 1/8 - 27 NPTF | MS1970 | T30 |
| 6080070 | EVSBL2525M0312180250C | 3 | 12 | 250 | 180 | 25 | 25 | 34 | 150 | 24 | 33 | 1/8 - 27 NPTF | 1/8 - 27 NPTF | MS1970 | T30 |
| 6080054 | EVSBL2525M0320060075C | 3 | 20 | 75 | 60 | 25 | 25 | 35 | 150 | 24 | 41 | 1/8 - 27 NPTF | 1/8 - 27 NPTF | MS1970 | T30 |
| 6080056 | EVSBL2525M0320075100C | 3 | 20 | 100 | 75 | 25 | 25 | 35 | 150 | 24 | 41 | 1/8 - 27 NPTF | 1/8 - 27 NPTF | MS1970 | T30 |
| 6080059 | EVSBL2525M0320100180C | 3 | 20 | 180 | 100 | 25 | 25 | 35 | 150 | 24 | 41 | 1/8 - 27 NPTF | 1/8 - 27 NPTF | MS1970 | T30 |
| 6080061 | EVSBL2525M0320180250C | 3 | 20 | 250 | 180 | 25 | 25 | 35 | 150 | 24 | 41 | 1/8 - 27 NPTF | 1/8 - 27 NPTF | MS1970 | T30 |
| 6080038 | EVSBL2020K0416040050C | 4 | 16 | 50 | 40 | 20 | 20 | 29 | 125 | 18 | 37 | 1/16 - 27 NPTF | 1/16 - 27 NPTF | MS1595 | T30 |
| 6080051 | EVSBL2020K0416050060C | 4 | 16 | 60 | 50 | 20 | 20 | 29 | 125 | 18 | 37 | 1/16 - 27 NPTF | 1/16 - 27 NPTF | MS1595 | T30 |
| 6116572 | EVSBL2020K0416060075C | 4 | 16 | 75 | 60 | 20 | 20 | 29 | 125 | 18 | 37 | 1/16 - 27 NPTF | 1/16 - 27 NPTF | MS1595 | T30 |
| 6116574 | EVSBL2020K0416075100C | 4 | 16 | 100 | 75 | 20 | 20 | 29 | 125 | 18 | 37 | 1/16 - 27 NPTF | 1/16 - 27 NPTF | MS1595 | T30 |
| 6116588 | EVSBL2525M0416100180C | 4 | 16 | 180 | 100 | 25 | 25 | 34 | 150 | 23 | 37 | 1/8 - 27 NPTF | 1/8 - 27 NPTF | MS1970 | T30 |
| 6116590 | EVSBL2525M0416180250C | 4 | 16 | 250 | 180 | 25 | 25 | 34 | 150 | 23 | 37 | 1/8 - 27 NPTF | 1/8 - 27 NPTF | MS1970 | T30 |
| 6116576 | EVSBL2525M0426060075C | 4 | 26 | 75 | 60 | 25 | 25 | 35 | 150 | 23 | 47 | 1/8 - 27 NPTF | 1/8 - 27 NPTF | MS1970 | T30 |
| 6116578 | EVSBL2525M0426075100C | 4 | 26 | 100 | 75 | 25 | 25 | 35 | 150 | 23 | 47 | 1/8 - 27 NPTF | 1/8 - 27 NPTF | MS1970 | T30 |
