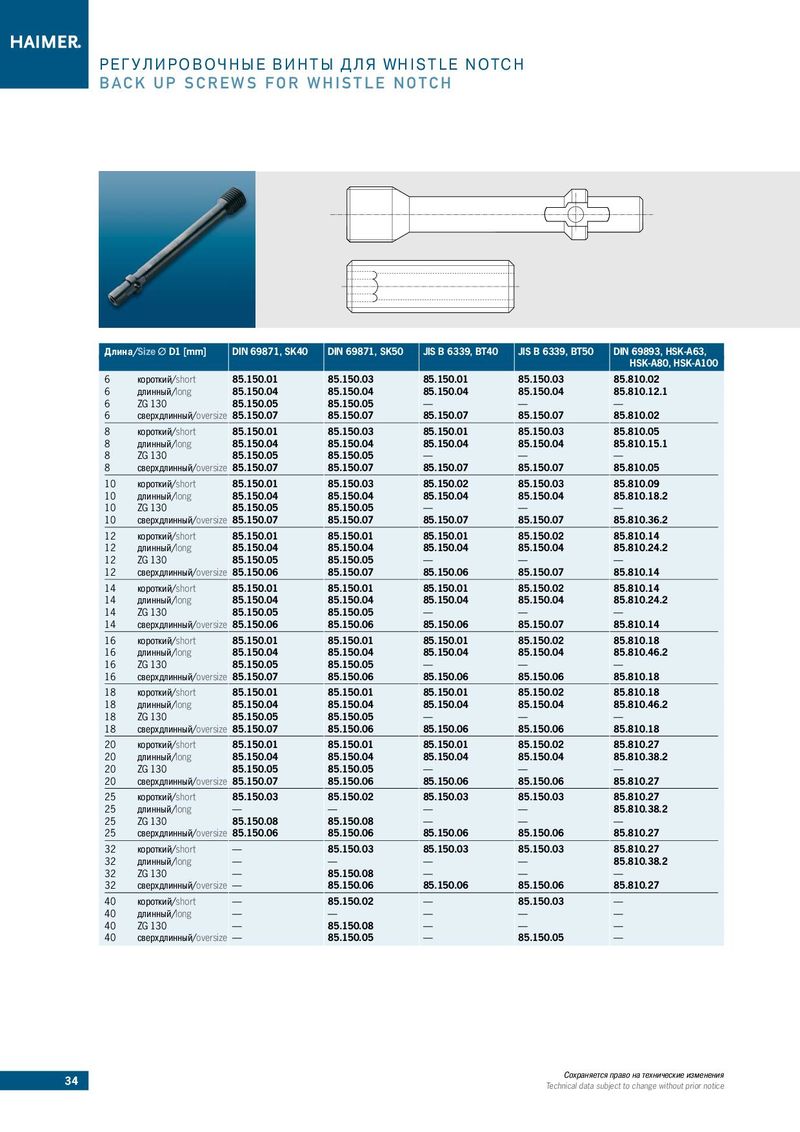

РЕГУЛИРОВОЧНЫЕ ВИНТЫ ДЛЯ WHISTLE NOTCH
BACK U P SCREWS FOR WHISTLE NOTCH
| Длин | а/Size ØD1 [mm] | DIN 69871, SK40 | DIN 69871, SK50 | JIS B 6339, BT40 | JIS B 6339, BT50 | DIN 69893, HSK-A63, HSK-A80, HSK-A100 |
| 6 | короткий/short | 85.150.01 | 85.150.03 | 85.150.01 | 85.150.03 | 85.810.02 |
| 6 | длинный/long | 85.150.04 | 85.150.04 | 85.150.04 | 85.150.04 | 85.810.12.1 |
| 6 | ZG 130 | 85.150.05 | 85.150.05 | — | — | — |
| 6 | сверхдлинный/overs | ize 85.150.07 | 85.150.07 | 85.150.07 | 85.150.07 | 85.810.02 |
| 8 | короткий/short | 85.150.01 | 85.150.03 | 85.150.01 | 85.150.03 | 85.810.05 |
| 8 | длинный/long | 85.150.04 | 85.150.04 | 85.150.04 | 85.150.04 | 85.810.15.1 |
| 8 | ZG 130 | 85.150.05 | 85.150.05 | — | — | — |
| 8 | сверхдлинный/overs | ize 85.150.07 | 85.150.07 | 85.150.07 | 85.150.07 | 85.810.05 |
| 10 | короткий/short | 85.150.01 | 85.150.03 | 85.150.02 | 85.150.03 | 85.810.09 |
| 10 | длинный/long | 85.150.04 | 85.150.04 | 85.150.04 | 85.150.04 | 85.810.18.2 |
| 10 | ZG 130 | 85.150.05 | 85.150.05 | — | — | — |
| 10 | сверхдлинный/overs | ize 85.150.07 | 85.150.07 | 85.150.07 | 85.150.07 | 85.810.36.2 |
| 12 | короткий/short | 85.150.01 | 85.150.01 | 85.150.01 | 85.150.02 | 85.810.14 |
| 12 | длинный/long | 85.150.04 | 85.150.04 | 85.150.04 | 85.150.04 | 85.810.24.2 |
| 12 | ZG 130 | 85.150.05 | 85.150.05 | — | — | — |
| 12 | сверхдлинный/overs | ize 85.150.06 | 85.150.07 | 85.150.06 | 85.150.07 | 85.810.14 |
| 14 | короткий/short | 85.150.01 | 85.150.01 | 85.150.01 | 85.150.02 | 85.810.14 |
| 14 | длинный/long | 85.150.04 | 85.150.04 | 85.150.04 | 85.150.04 | 85.810.24.2 |
| 14 | ZG 130 | 85.150.05 | 85.150.05 | — | — | — |
| 14 | сверхдлинный/overs | ize 85.150.06 | 85.150.06 | 85.150.06 | 85.150.07 | 85.810.14 |
| 16 | короткий/short | 85.150.01 | 85.150.01 | 85.150.01 | 85.150.02 | 85.810.18 |
| 16 | длинный/long | 85.150.04 | 85.150.04 | 85.150.04 | 85.150.04 | 85.810.46.2 |
| 16 | ZG 130 | 85.150.05 | 85.150.05 | — | — | — |
| 16 | сверхдлинный/overs | ize 85.150.07 | 85.150.06 | 85.150.06 | 85.150.06 | 85.810.18 |
| 18 | короткий/short | 85.150.01 | 85.150.01 | 85.150.01 | 85.150.02 | 85.810.18 |
| 18 | длинный/long | 85.150.04 | 85.150.04 | 85.150.04 | 85.150.04 | 85.810.46.2 |
| 18 | ZG 130 | 85.150.05 | 85.150.05 | — | — | — |
| 18 | сверхдлинный/overs | ize 85.150.07 | 85.150.06 | 85.150.06 | 85.150.06 | 85.810.18 |
| 20 | короткий/short | 85.150.01 | 85.150.01 | 85.150.01 | 85.150.02 | 85.810.27 |
| 20 | длинный/long | 85.150.04 | 85.150.04 | 85.150.04 | 85.150.04 | 85.810.38.2 |
| 20 | ZG 130 | 85.150.05 | 85.150.05 | — | — | — |
| 20 | сверхдлинный/overs | ize 85.150.07 | 85.150.06 | 85.150.06 | 85.150.06 | 85.810.27 |
| 25 | короткий/short | 85.150.03 | 85.150.02 | 85.150.03 | 85.150.03 | 85.810.27 |
| 25 | длинный/long | — | — | — | — | 85.810.38.2 |
| 25 | ZG 130 | 85.150.08 | 85.150.08 | — | — | — |
| 25 | сверхдлинный/overs | ize 85.150.06 | 85.150.06 | 85.150.06 | 85.150.06 | 85.810.27 |
| 32 | короткий/short | — | 85.150.03 | 85.150.03 | 85.150.03 | 85.810.27 |
| 32 | длинный/long | — | — | — | — | 85.810.38.2 |
| 32 | ZG 130 | — | 85.150.08 | — | — | — |
| 32 | сверхдлинный/overs | ize — | 85.150.06 | 85.150.06 | 85.150.06 | 85.810.27 |
| 40 | короткий/short | — | 85.150.02 | — | 85.150.03 | — |
| 40 | длинный/long | — | — | — | — | — |
| 40 | ZG 130 | — | 85.150.08 | — | — | — |
| 40 | сверхдлинный/overs | ize — | 85.150.05 | — | 85.150.05 | — |
