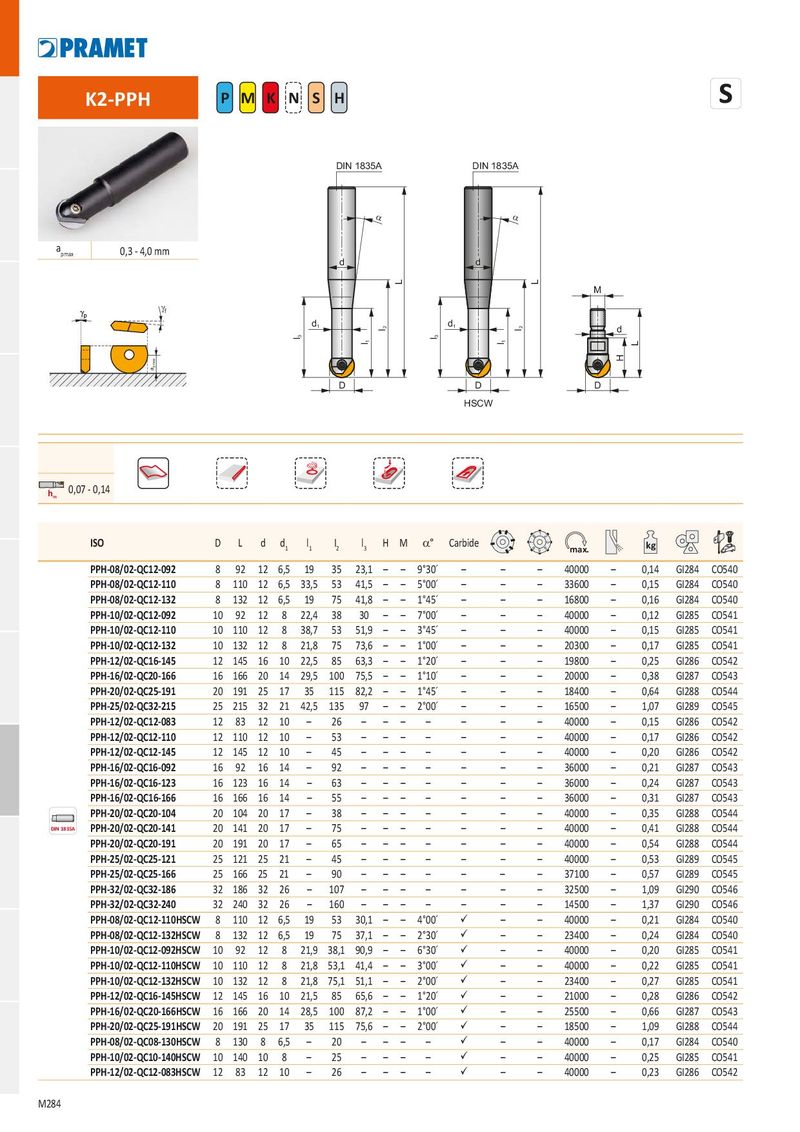

K2-PPH P M K N S H
DIN 1835A DIN 1835A
a 0,3 - 4,0 mm pmax
g f
d 1
a a
d d M d d 1
D D D
HSCW
0,07 - 0,14 h m
| ISO | D | L | d | d1 | l1 | I2 | l3 | H | M | a° | Carbide | 1 2 3 4 5 6 7 8 | max. | kg | ||||
| PPH-08/02-QC12-092 | 8 | 92 | 12 | 6,5 | 19 | 35 | 23,1 | – | – | 9°30´ | – | – | – | 40000 | – | 0,14 | GI284 | CO540 |
| PPH-08/02-QC12-110 | 8 | 110 | 12 | 6,5 | 33,5 | 53 | 41,5 | – | – | 5°00´ | – | – | – | 33600 | – | 0,15 | GI284 | CO540 |
| PPH-08/02-QC12-132 | 8 | 132 | 12 | 6,5 | 19 | 75 | 41,8 | – | – | 1°45´ | – | – | – | 16800 | – | 0,16 | GI284 | CO540 |
| PPH-10/02-QC12-092 | 10 | 92 | 12 | 8 | 22,4 | 38 | 30 | – | – | 7°00´ | – | – | – | 40000 | – | 0,12 | GI285 | CO541 |
| PPH-10/02-QC12-110 | 10 | 110 | 12 | 8 | 38,7 | 53 | 51,9 | – | – | 3°45´ | – | – | – | 40000 | – | 0,15 | GI285 | CO541 |
| PPH-10/02-QC12-132 | 10 | 132 | 12 | 8 | 21,8 | 75 | 73,6 | – | – | 1°00´ | – | – | – | 20300 | – | 0,17 | GI285 | CO541 |
| PPH-12/02-QC16-145 | 12 | 145 | 16 | 10 | 22,5 | 85 | 63,3 | – | – | 1°20´ | – | – | – | 19800 | – | 0,25 | GI286 | CO542 |
| PPH-16/02-QC20-166 | 16 | 166 | 20 | 14 | 29,5 | 100 | 75,5 | – | – | 1°10´ | – | – | – | 20000 | – | 0,38 | GI287 | CO543 |
| PPH-20/02-QC25-191 | 20 | 191 | 25 | 17 | 35 | 115 | 82,2 | – | – | 1°45´ | – | – | – | 18400 | – | 0,64 | GI288 | CO544 |
| PPH-25/02-QC32-215 | 25 | 215 | 32 | 21 | 42,5 | 135 | 97 | – | – | 2°00´ | – | – | – | 16500 | – | 1,07 | GI289 | CO545 |
| PPH-12/02-QC12-083 | 12 | 83 | 12 | 10 | – | 26 | – | – | – | – | – | – | – | 40000 | – | 0,15 | GI286 | CO542 |
| PPH-12/02-QC12-110 | 12 | 110 | 12 | 10 | – | 53 | – | – | – | – | – | – | – | 40000 | – | 0,17 | GI286 | CO542 |
| PPH-12/02-QC12-145 | 12 | 145 | 12 | 10 | – | 45 | – | – | – | – | – | – | – | 40000 | – | 0,20 | GI286 | CO542 |
| PPH-16/02-QC16-092 | 16 | 92 | 16 | 14 | – | 92 | – | – | – | – | – | – | – | 36000 | – | 0,21 | GI287 | CO543 |
| PPH-16/02-QC16-123 | 16 | 123 | 16 | 14 | – | 63 | – | – | – | – | – | – | – | 36000 | – | 0,24 | GI287 | CO543 |
| PPH-16/02-QC16-166 | 16 | 166 | 16 | 14 | – | 55 | – | – | – | – | – | – | – | 36000 | – | 0,31 | GI287 | CO543 |
| PPH-20/02-QC20-104 | 20 | 104 | 20 | 17 | – | 38 | – | – | – | – | – | – | – | 40000 | – | 0,35 | GI288 | CO544 |
| DIN 1835A PPH-20/02-QC20-141 | 20 | 141 | 20 | 17 | – | 75 | – | – | – | – | – | – | – | 40000 | – | 0,41 | GI288 | CO544 |
| PPH-20/02-QC20-191 | 20 | 191 | 20 | 17 | – | 65 | – | – | – | – | – | – | – | 40000 | – | 0,54 | GI288 | CO544 |
| PPH-25/02-QC25-121 | 25 | 121 | 25 | 21 | – | 45 | – | – | – | – | – | – | – | 40000 | – | 0,53 | GI289 | CO545 |
| PPH-25/02-QC25-166 | 25 | 166 | 25 | 21 | – | 90 | – | – | – | – | – | – | – | 37100 | – | 0,57 | GI289 | CO545 |
| PPH-32/02-QC32-186 | 32 | 186 | 32 | 26 | – | 107 | – | – | – | – | – | – | – | 32500 | – | 1,09 | GI290 | CO546 |
| PPH-32/02-QC32-240 | 32 | 240 | 32 | 26 | – | 160 | – | – | – | – | – | – | – | 14500 | – | 1,37 | GI290 | CO546 |
| PPH-08/02-QC12-110HSCW | 8 | 110 | 12 | 6,5 | 19 | 53 | 30,1 | – | – | 4°00´ | ü | – | – | 40000 | – | 0,21 | GI284 | CO540 |
| PPH-08/02-QC12-132HSCW | 8 | 132 | 12 | 6,5 | 19 | 75 | 37,1 | – | – | 2°30´ | ü | – | – | 23400 | – | 0,24 | GI284 | CO540 |
| PPH-10/02-QC12-092HSCW | 10 | 92 | 12 | 8 | 21,9 | 38,1 | 90,9 | – | – | 6°30´ | ü | – | – | 40000 | – | 0,20 | GI285 | CO541 |
| PPH-10/02-QC12-110HSCW | 10 | 110 | 12 | 8 | 21,8 | 53,1 | 41,4 | – | – | 3°00´ | ü | – | – | 40000 | – | 0,22 | GI285 | CO541 |
| PPH-10/02-QC12-132HSCW | 10 | 132 | 12 | 8 | 21,8 | 75,1 | 51,1 | – | – | 2°00´ | ü | – | – | 23400 | – | 0,27 | GI285 | CO541 |
| PPH-12/02-QC16-145HSCW | 12 | 145 | 16 | 10 | 21,5 | 85 | 65,6 | – | – | 1°20´ | ü | – | – | 21000 | – | 0,28 | GI286 | CO542 |
| PPH-16/02-QC20-166HSCW | 16 | 166 | 20 | 14 | 28,5 | 100 | 87,2 | – | – | 1°00´ | ü | – | – | 25500 | – | 0,66 | GI287 | CO543 |
| PPH-20/02-QC25-191HSCW | 20 | 191 | 25 | 17 | 35 | 115 | 75,6 | – | – | 2°00´ | ü | – | – | 18500 | – | 1,09 | GI288 | CO544 |
| PPH-08/02-QC08-130HSCW | 8 | 130 | 8 | 6,5 | – | 20 | – | – | – | – | ü | – | – | 40000 | – | 0,17 | GI284 | CO540 |
| PPH-10/02-QC10-140HSCW | 10 | 140 | 10 | 8 | – | 25 | – | – | – | – | ü | – | – | 40000 | – | 0,25 | GI285 | CO541 |
| PPH-12/02-QC12-083HSCW | 12 | 83 | 12 | 10 | – | 26 | – | – | – | – | ü | – | – | 40000 | – | 0,23 | GI286 | CO542 |
