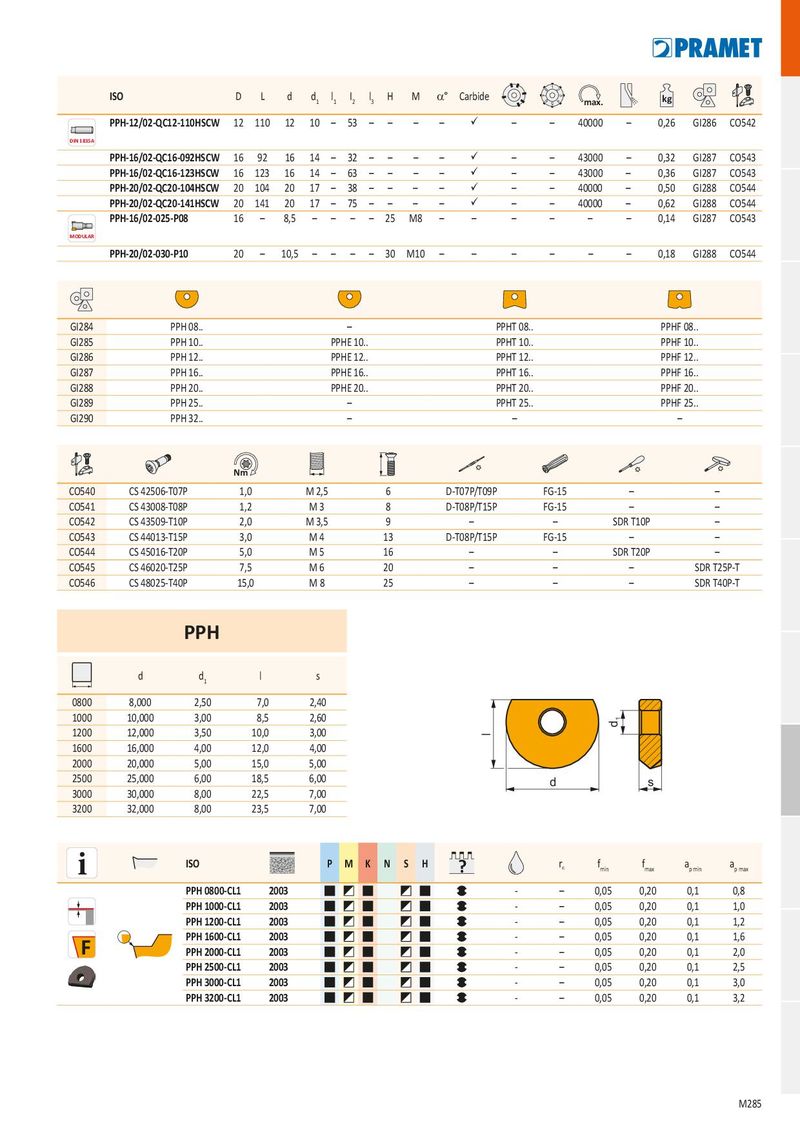

| ISO | D | L | d | d1 | l | 1 | I2 | l3 | H | M | a° | Carbide | 1 2 3 4 5 6 7 8 | max. | kg | |||||
| PPH-12/02-QC12-110HSCW | 12 | 110 | 12 | 10 | – | 53 | – | – | – | – | ü | – | – | 40000 | – | 0,26 | GI286 | CO542 | ||
| DIN 1835A | ||||||||||||||||||||
| PPH-16/02-QC16-092HSCW | 16 | 92 | 16 | 14 | – | 32 | – | – | – | – | ü | – | – | 43000 | – | 0,32 | GI287 | CO543 | ||
| PPH-16/02-QC16-123HSCW | 16 | 123 | 16 | 14 | – | 63 | – | – | – | – | ü | – | – | 43000 | – | 0,36 | GI287 | CO543 | ||
| PPH-20/02-QC20-104HSCW | 20 | 104 | 20 | 17 | – | 38 | – | – | – | – | ü | – | – | 40000 | – | 0,50 | GI288 | CO544 | ||
| PPH-20/02-QC20-141HSCW | 20 | 141 | 20 | 17 | – | 75 | – | – | – | – | ü | – | – | 40000 | – | 0,62 | GI288 | CO544 | ||
| MODULAR | PPH-16/02-025-P08 | 16 | – | 8,5 | – | – | – | – | 25 | M8 | – | – | – | – | – | – | 0,14 | GI287 | CO543 | |
| PPH-20/02-030-P10 | 20 | – | 10,5 | – | – | – | – | 30 | M10 | – | – | – | – | – | – | 0,18 | GI288 | CO544 |
| GI284 | PPH 08.. | – | PPHT 08.. | PPHF 08.. |
| GI285 | PPH 10.. | PPHE 10.. | PPHT 10.. | PPHF 10.. |
| GI286 | PPH 12.. | PPHE 12.. | PPHT 12.. | PPHF 12.. |
| GI287 | PPH 16.. | PPHE 16.. | PPHT 16.. | PPHF 16.. |
| GI288 | PPH 20.. | PPHE 20.. | PPHT 20.. | PPHF 20.. |
| GI289 | PPH 25.. | – | PPHT 25.. | PPHF 25.. |
| GI290 | PPH 32.. | – | – | – |
| Nm | ||||||||
| CO540 | CS 42506-T07P | 1,0 | M 2,5 | 6 | D-T07P/T09P | FG-15 | – | – |
| CO541 | CS 43008-T08P | 1,2 | M 3 | 8 | D-T08P/T15P | FG-15 | – | – |
| CO542 | CS 43509-T10P | 2,0 | M 3,5 | 9 | – | – | SDR T10P | – |
| CO543 | CS 44013-T15P | 3,0 | M 4 | 13 | D-T08P/T15P | FG-15 | – | – |
| CO544 | CS 45016-T20P | 5,0 | M 5 | 16 | – | – | SDR T20P | – |
| CO545 | CS 46020-T25P | 7,5 | M 6 | 20 | – | – | – | SDR T25P-T |
| CO546 | CS 48025-T40P | 15,0 | M 8 | 25 | – | – | – | SDR T40P-T |
| PPH | ||||
| d | d1 | l | s | |
| 0800 | 8,000 | 2,50 | 7,0 | 2,40 |
| 1000 | 10,000 | 3,00 | 8,5 | 2,60 |
| 1200 | 12,000 | 3,50 | 10,0 | 3,00 |
| 1600 | 16,000 | 4,00 | 12,0 | 4,00 |
| 2000 | 20,000 | 5,00 | 15,0 | 5,00 |
| 2500 | 25,000 | 6,00 | 18,5 | 6,00 |
| 3000 | 30,000 | 8,00 | 22,5 | 7,00 |
| 3200 | 32,000 | 8,00 | 23,5 | 7,00 |
| i | ISO | P M K | N S H | ? | re | fmin | fmax | ap min | ap max | ||
| PPH 0800-CL1 | 2003 | - | – | 0,05 | 0,20 | 0,1 | 0,8 | ||||
| PPH 1000-CL1 | 2003 | - | – | 0,05 | 0,20 | 0,1 | 1,0 | ||||
| PPH 1200-CL1 | 2003 | - | – | 0,05 | 0,20 | 0,1 | 1,2 | ||||
| PPH 1600-CL1 | 2003 | - | – | 0,05 | 0,20 | 0,1 | 1,6 | ||||
| F | PPH 2000-CL1 | 2003 | - | – | 0,05 | 0,20 | 0,1 | 2,0 | |||
| PPH 2500-CL1 | 2003 | - | – | 0,05 | 0,20 | 0,1 | 2,5 | ||||
| PPH 3000-CL1 | 2003 | - | – | 0,05 | 0,20 | 0,1 | 3,0 | ||||
| PPH 3200-CL1 | 2003 | - | – | 0,05 | 0,20 | 0,1 | 3,2 |
