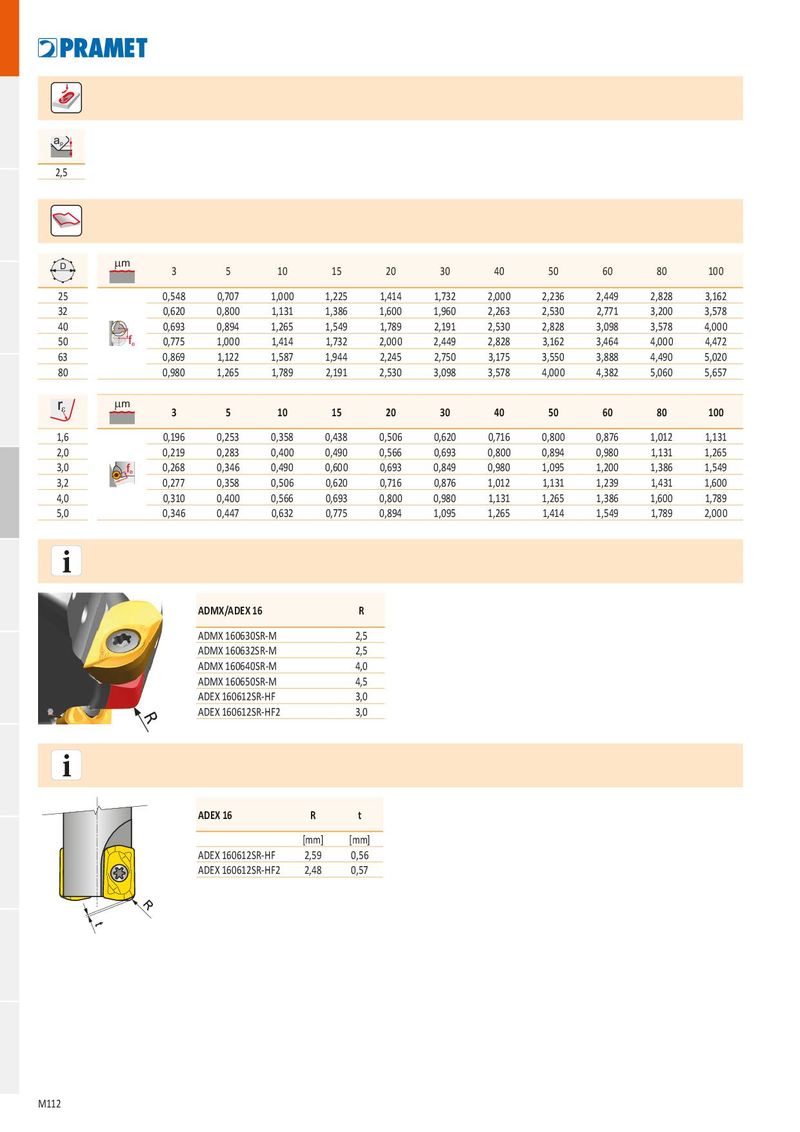

a p 2,5
| D | m m | 3 | 5 | 10 | 15 | 20 | 30 | 40 | 50 | 60 | 80 | 100 |
| 25 | 0,548 | 0,707 | 1,000 | 1,225 | 1,414 | 1,732 | 2,000 | 2,236 | 2,449 | 2,828 | 3,162 | |
| 32 | 0,620 | 0,800 | 1,131 | 1,386 | 1,600 | 1,960 | 2,263 | 2,530 | 2,771 | 3,200 | 3,578 | |
| 40 | 0,693 | 0,894 | 1,265 | 1,549 | 1,789 | 2,191 | 2,530 | 2,828 | 3,098 | 3,578 | 4,000 | |
| 50 | fe | 0,775 | 1,000 | 1,414 | 1,732 | 2,000 | 2,449 | 2,828 | 3,162 | 3,464 | 4,000 | 4,472 |
| 63 | 0,869 | 1,122 | 1,587 | 1,944 | 2,245 | 2,750 | 3,175 | 3,550 | 3,888 | 4,490 | 5,020 | |
| 80 | 0,980 | 1,265 | 1,789 | 2,191 | 2,530 | 3,098 | 3,578 | 4,000 | 4,382 | 5,060 | 5,657 | |
| re | m m | 3 | 5 | 10 | 15 | 20 | 30 | 40 | 50 | 60 | 80 | 100 |
| 1,6 | 0,196 | 0,253 | 0,358 | 0,438 | 0,506 | 0,620 | 0,716 | 0,800 | 0,876 | 1,012 | 1,131 | |
| 2,0 | 0,219 | 0,283 | 0,400 | 0,490 | 0,566 | 0,693 | 0,800 | 0,894 | 0,980 | 1,131 | 1,265 | |
| 3,0 | fe | 0,268 | 0,346 | 0,490 | 0,600 | 0,693 | 0,849 | 0,980 | 1,095 | 1,200 | 1,386 | 1,549 |
| 3,2 | 0,277 | 0,358 | 0,506 | 0,620 | 0,716 | 0,876 | 1,012 | 1,131 | 1,239 | 1,431 | 1,600 | |
| 4,0 | 0,310 | 0,400 | 0,566 | 0,693 | 0,800 | 0,980 | 1,131 | 1,265 | 1,386 | 1,600 | 1,789 | |
| 5,0 | 0,346 | 0,447 | 0,632 | 0,775 | 0,894 | 1,095 | 1,265 | 1,414 | 1,549 | 1,789 | 2,000 |
i
| ADMX/ADEX 16 | R |
| ADMX 160630SR-M | 2,5 |
| ADMX 160632SR-M | 2,5 |
| ADMX 160640SR-M | 4,0 |
| ADMX 160650SR-M | 4,5 |
| ADEX 160612SR-HF | 3,0 |
| ADEX 160612SR-HF2 | 3,0 |
i
| ADEX 16 | R | t |
| [mm] | [mm] | |
| ADEX 160612SR-HF | 2,59 | 0,56 |
| ADEX 160612SR-HF2 | 2,48 | 0,57 |
