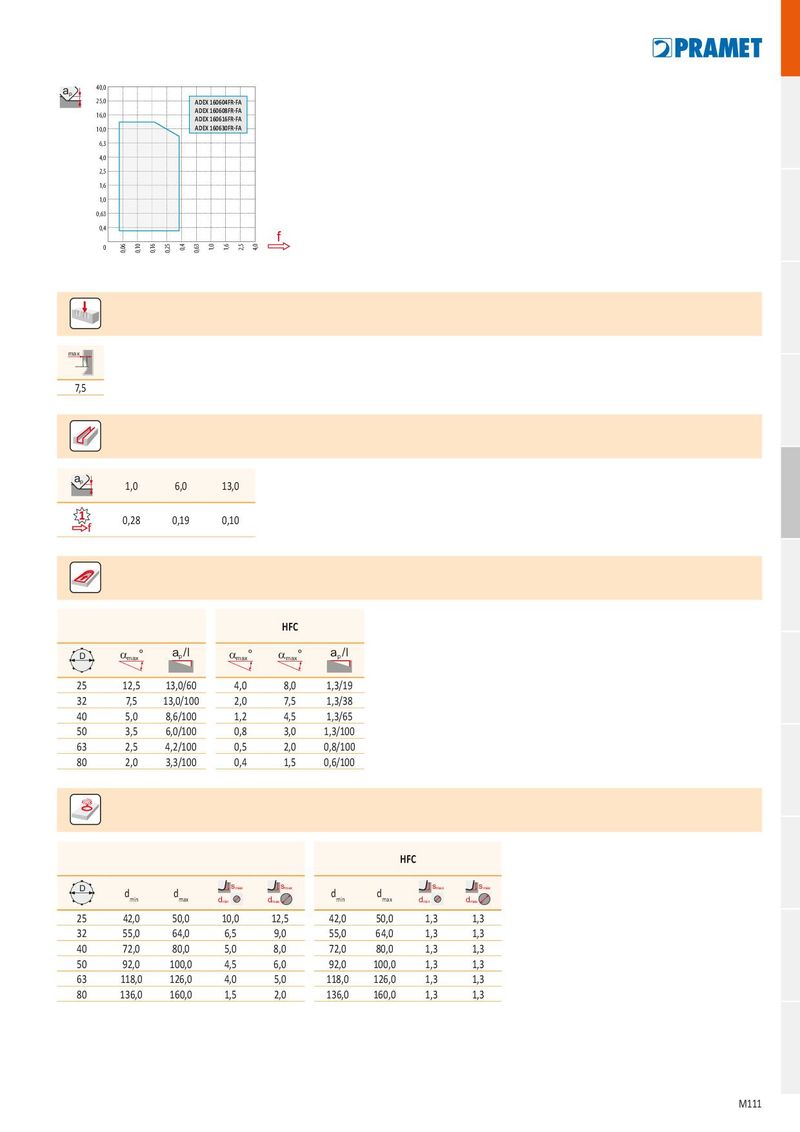

a 40,0 p 25,0 ADEX 160604FR-FA ADEX 160608FR-FA 16,0 ADEX 160616FR-FA 10,0 ADEX 160630FR-FA 6,3 4,0 2,5 1,6 1,0 0,63 0,4 f 0
max 7,5
a
| p | 1,0 | 6,0 | 13,0 |
| 1 | 0,28 | 0,19 | 0,10 |
f
| HFC | |||||
| D | amax° | ap/l | amax° | amax° | ap/l |
| 25 | 12,5 | 13,0/60 | 4,0 | 8,0 | 1,3/19 |
| 32 | 7,5 | 13,0/100 | 2,0 | 7,5 | 1,3/38 |
| 40 | 5,0 | 8,6/100 | 1,2 | 4,5 | 1,3/65 |
| 50 | 3,5 | 6,0/100 | 0,8 | 3,0 | 1,3/100 |
| 63 | 2,5 | 4,2/100 | 0,5 | 2,0 | 0,8/100 |
| 80 | 2,0 | 3,3/100 | 0,4 | 1,5 | 0,6/100 |
| H | FC | |||||||
| D | dmin | dmax | dmin smax | dmax smax | dmin | dmax | dmin smax | dmax smax |
| 25 | 42,0 | 50,0 | 10,0 | 12,5 | 42,0 | 50,0 | 1,3 | 1,3 |
| 32 | 55,0 | 64,0 | 6,5 | 9,0 | 55,0 | 64,0 | 1,3 | 1,3 |
| 40 | 72,0 | 80,0 | 5,0 | 8,0 | 72,0 | 80,0 | 1,3 | 1,3 |
| 50 | 92,0 | 100,0 | 4,5 | 6,0 | 92,0 | 100,0 | 1,3 | 1,3 |
| 63 | 118,0 | 126,0 | 4,0 | 5,0 | 118,0 | 126,0 | 1,3 | 1,3 |
| 80 | 136,0 | 160,0 | 1,5 | 2,0 | 136,0 | 160,0 | 1,3 | 1,3 |
