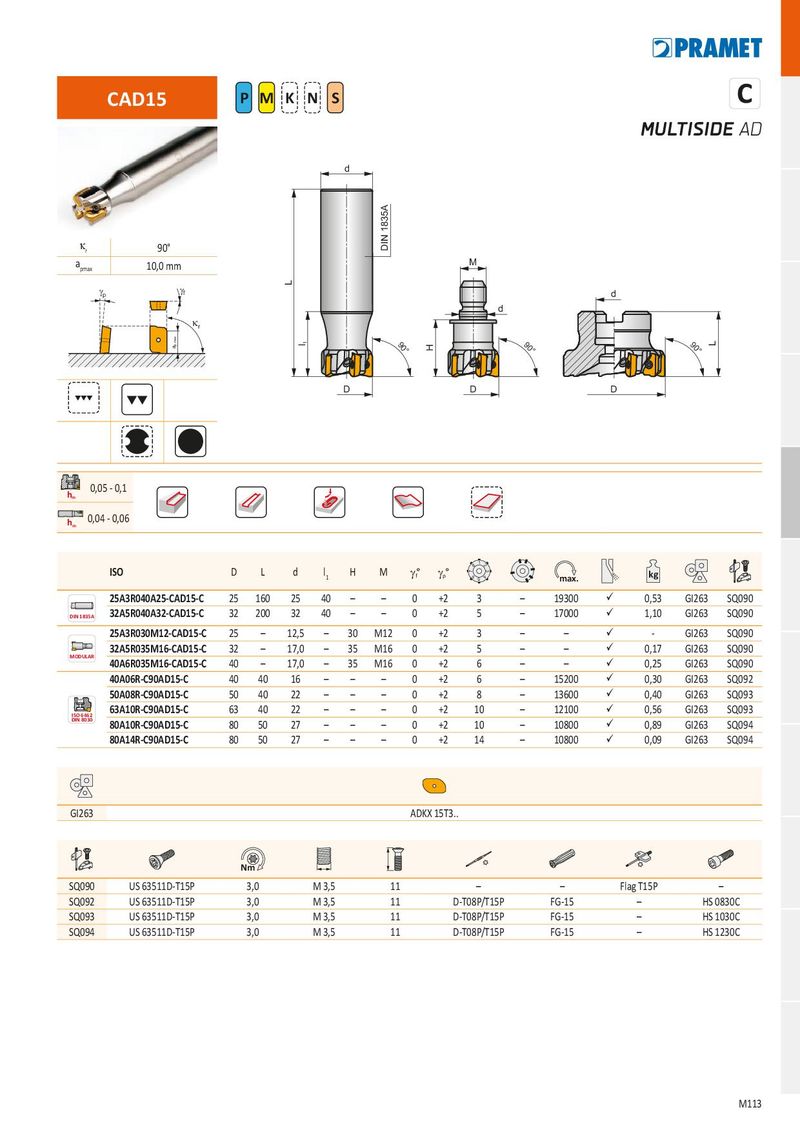

CAD15 P M K N S MULTISIDE AD d k r 90° DIN 1835A a M pmax 10,0 mm L g g p f d d k r a p max l 1 90° 90° 90° L H D D D 0,05 - 0,1 h m h 0,04 - 0,06 m 8 1 2 7 3 ISO D L d l 1 H M g° f g ° p 6 5 4 max. kg 25A3R040A25-CAD15-C 25 160 25 40 – – 0 +2 3 – 19300 ü 0,53 GI263 SQ090 DIN 1835A 32A5R040A32-CAD15-C 32 200 32 40 – – 0 +2 5 – 17000 ü 1,10 GI263 SQ090 25A3R030M12-CAD15-C 25 – 12,5 – 30 M12 0 +2 3 – – ü - GI263 SQ090 32A5R035M16-CAD15-C 32 – 17,0 – 35 M16 0 +2 5 – – ü 0,17 GI263 SQ090 MODULAR 40A6R035M16-CAD15-C 40 – 17,0 – 35 M16 0 +2 6 – – ü 0,25 GI263 SQ090 40A06R-C90AD15-C 40 40 16 – – – 0 +2 6 – 15200 ü 0,30 GI263 SQ092 50A08R-C90AD15-C 50 40 22 – – – 0 +2 8 – 13600 ü 0,40 GI263 SQ093 ISO 6462 63A10R-C90AD15-C 63 40 22 – – – 0 +2 10 – 12100 ü 0,56 GI263 SQ093 DIN 8030 80A10R-C90AD15-C 80 50 27 – – – 0 +2 10 – 10800 ü 0,89 GI263 SQ094 80A14R-C90AD15-C 80 50 27 – – – 0 +2 14 – 10800 ü 0,09 GI263 SQ094 GI263 ADKX 15T3.. Nm SQ090 US 63511D-T15P 3,0 M 3,5 11 – – Flag T15P – SQ092 US 63511D-T15P 3,0 M 3,5 11 D-T08P/T15P FG-15 – HS 0830C SQ093 US 63511D-T15P 3,0 M 3,5 11 D-T08P/T15P FG-15 – HS 1030C SQ094 US 63511D-T15P 3,0 M 3,5 11 D-T08P/T15P FG-15 – HS 1230C M113
