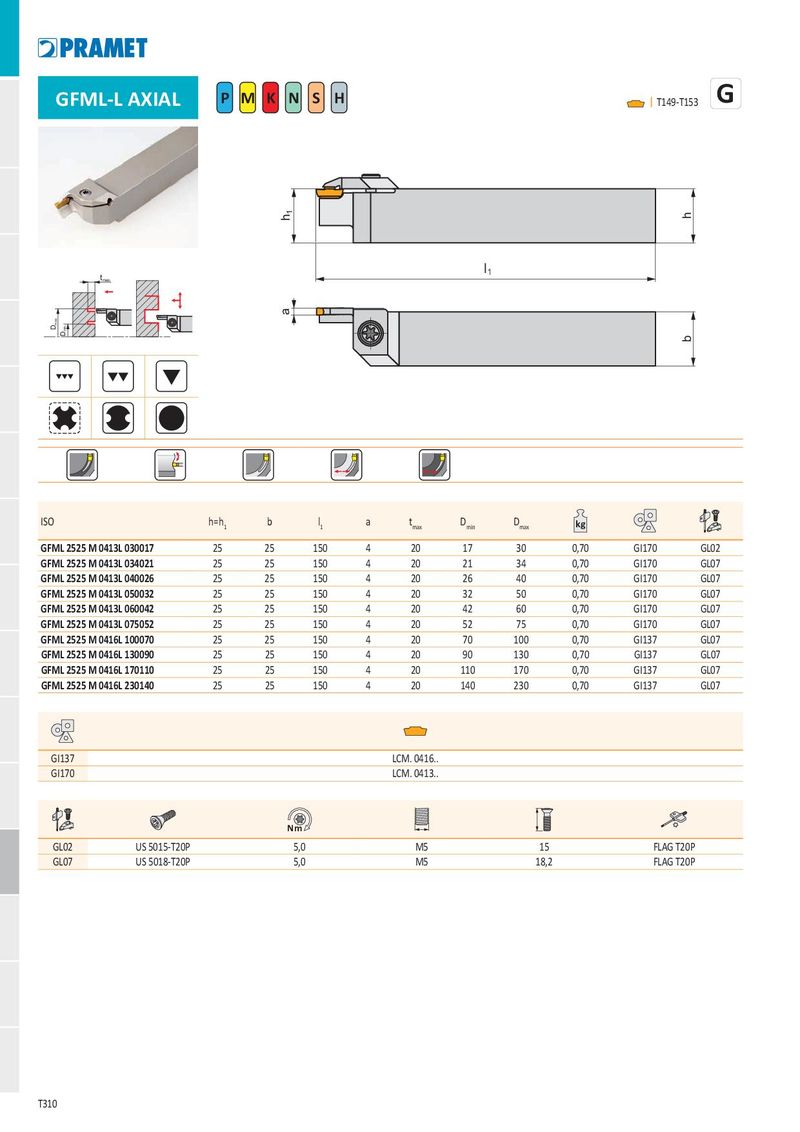

GFML-L AXIAL G
P M K N S H I
T149-T153
t max.
l
1
| ISO | h=h | b | l | a | t | D | D | kg | ||
| 1 | 1 | max | min | max | ||||||
| GFML 2525 M 0413L 030017 | 25 | 25 | 150 | 4 | 20 | 17 | 30 | 0,70 | GI170 | GL02 |
| GFML 2525 M 0413L 034021 | 25 | 25 | 150 | 4 | 20 | 21 | 34 | 0,70 | GI170 | GL07 |
| GFML 2525 M 0413L 040026 | 25 | 25 | 150 | 4 | 20 | 26 | 40 | 0,70 | GI170 | GL07 |
| GFML 2525 M 0413L 050032 | 25 | 25 | 150 | 4 | 20 | 32 | 50 | 0,70 | GI170 | GL07 |
| GFML 2525 M 0413L 060042 | 25 | 25 | 150 | 4 | 20 | 42 | 60 | 0,70 | GI170 | GL07 |
| GFML 2525 M 0413L 075052 | 25 | 25 | 150 | 4 | 20 | 52 | 75 | 0,70 | GI170 | GL07 |
| GFML 2525 M 0416L 100070 | 25 | 25 | 150 | 4 | 20 | 70 | 100 | 0,70 | GI137 | GL07 |
| GFML 2525 M 0416L 130090 | 25 | 25 | 150 | 4 | 20 | 90 | 130 | 0,70 | GI137 | GL07 |
| GFML 2525 M 0416L 170110 | 25 | 25 | 150 | 4 | 20 | 110 | 170 | 0,70 | GI137 | GL07 |
| GFML 2525 M 0416L 230140 | 25 | 25 | 150 | 4 | 20 | 140 | 230 | 0,70 | GI137 | GL07 |
| GI137 | LCM. 0416.. | ||||
| GI170 | LCM. 0413.. | ||||
| Nm | |||||
| GL02 | US 5015-T20P | 5,0 | M5 | 15 | FLAG T20P |
| GL07 | US 5018-T20P | 5,0 | M5 | 18,2 | FLAG T20P |
