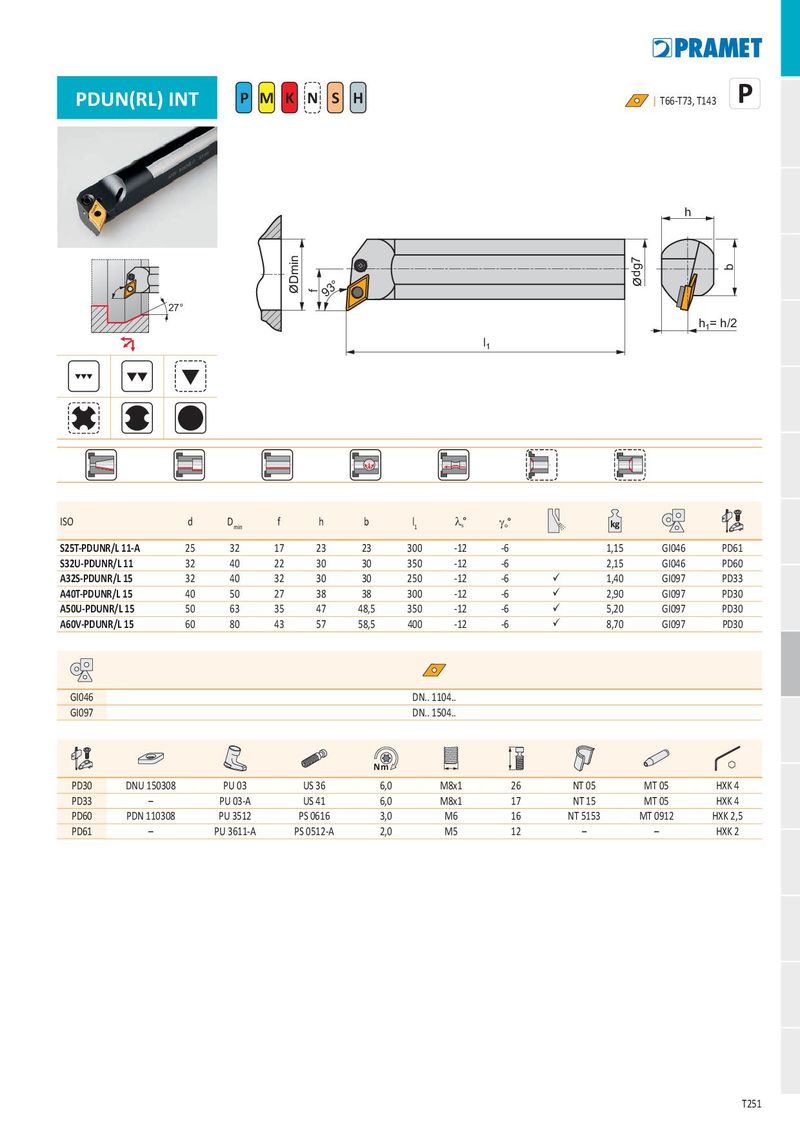

PDUN(RL) INT P M K N S H I
T66-T73, T143
h
f 93° 27°
l 1
h = h/2 1
| ISO | d | Dmin | f | h | b | l1 | ls° | go° | kg | |||
| S25T-PDUNR/L 11-A | 25 | 32 | 17 | 23 | 23 | 300 | -12 | -6 | 1,15 | GI046 | PD61 | |
| S32U-PDUNR/L 11 | 32 | 40 | 22 | 30 | 30 | 350 | -12 | -6 | 2,15 | GI046 | PD60 | |
| A32S-PDUNR/L 15 | 32 | 40 | 32 | 30 | 30 | 250 | -12 | -6 | ü | 1,40 | GI097 | PD33 |
| A40T-PDUNR/L 15 | 40 | 50 | 27 | 38 | 38 | 300 | -12 | -6 | ü | 2,90 | GI097 | PD30 |
| A50U-PDUNR/L 15 | 50 | 63 | 35 | 47 | 48,5 | 350 | -12 | -6 | ü | 5,20 | GI097 | PD30 |
| A60V-PDUNR/L 15 | 60 | 80 | 43 | 57 | 58,5 | 400 | -12 | -6 | ü | 8,70 | GI097 | PD30 |
| GI046 | D | N.. 1104.. | |||||||
| GI097 | D | N.. 1504.. | |||||||
| Nm | |||||||||
| PD30 | DNU 150308 | PU 03 | US 36 | 6,0 | M8x1 | 26 | NT 05 | MT 05 | HXK 4 |
| PD33 | – | PU 03-A | US 41 | 6,0 | M8x1 | 17 | NT 15 | MT 05 | HXK 4 |
| PD60 | PDN 110308 | PU 3512 | PS 0616 | 3,0 | M6 | 16 | NT 5153 | MT 0912 | HXK 2,5 |
| PD61 | – | PU 3611-A | PS 0512-A | 2,0 | M5 | 12 | – | – | HXK 2 |
