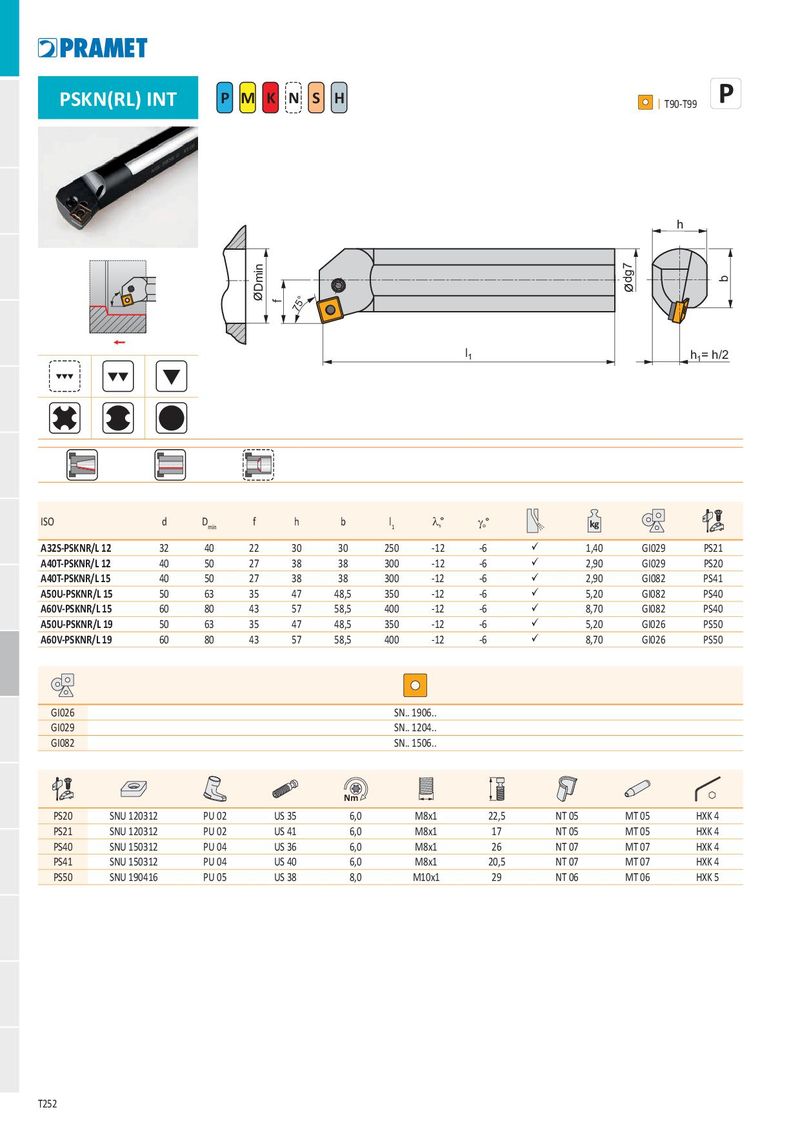

PSKN(RL) INT P M K N S H I
T90-T99
h
75° l h = h/2 1 1
| ISO | d | Dmin | f | h | b | l1 | ls° | go° | kg | |||
| A32S-PSKNR/L 12 | 32 | 40 | 22 | 30 | 30 | 250 | -12 | -6 | ü | 1,40 | GI029 | PS21 |
| A40T-PSKNR/L 12 | 40 | 50 | 27 | 38 | 38 | 300 | -12 | -6 | ü | 2,90 | GI029 | PS20 |
| A40T-PSKNR/L 15 | 40 | 50 | 27 | 38 | 38 | 300 | -12 | -6 | ü | 2,90 | GI082 | PS41 |
| A50U-PSKNR/L 15 | 50 | 63 | 35 | 47 | 48,5 | 350 | -12 | -6 | ü | 5,20 | GI082 | PS40 |
| A60V-PSKNR/L 15 | 60 | 80 | 43 | 57 | 58,5 | 400 | -12 | -6 | ü | 8,70 | GI082 | PS40 |
| A50U-PSKNR/L 19 | 50 | 63 | 35 | 47 | 48,5 | 350 | -12 | -6 | ü | 5,20 | GI026 | PS50 |
| A60V-PSKNR/L 19 | 60 | 80 | 43 | 57 | 58,5 | 400 | -12 | -6 | ü | 8,70 | GI026 | PS50 |
| GI026 | SN.. 1906.. |
| GI029 | SN.. 1204.. |
| GI082 | SN.. 1506.. |
| Nm | |||||||||
| PS20 | SNU 120312 | PU 02 | US 35 | 6,0 | M8x1 | 22,5 | NT 05 | MT 05 | HXK 4 |
| PS21 | SNU 120312 | PU 02 | US 41 | 6,0 | M8x1 | 17 | NT 05 | MT 05 | HXK 4 |
| PS40 | SNU 150312 | PU 04 | US 36 | 6,0 | M8x1 | 26 | NT 07 | MT 07 | HXK 4 |
| PS41 | SNU 150312 | PU 04 | US 40 | 6,0 | M8x1 | 20,5 | NT 07 | MT 07 | HXK 4 |
| PS50 | SNU 190416 | PU 05 | US 38 | 8,0 | M10x1 | 29 | NT 06 | MT 06 | HXK 5 |
