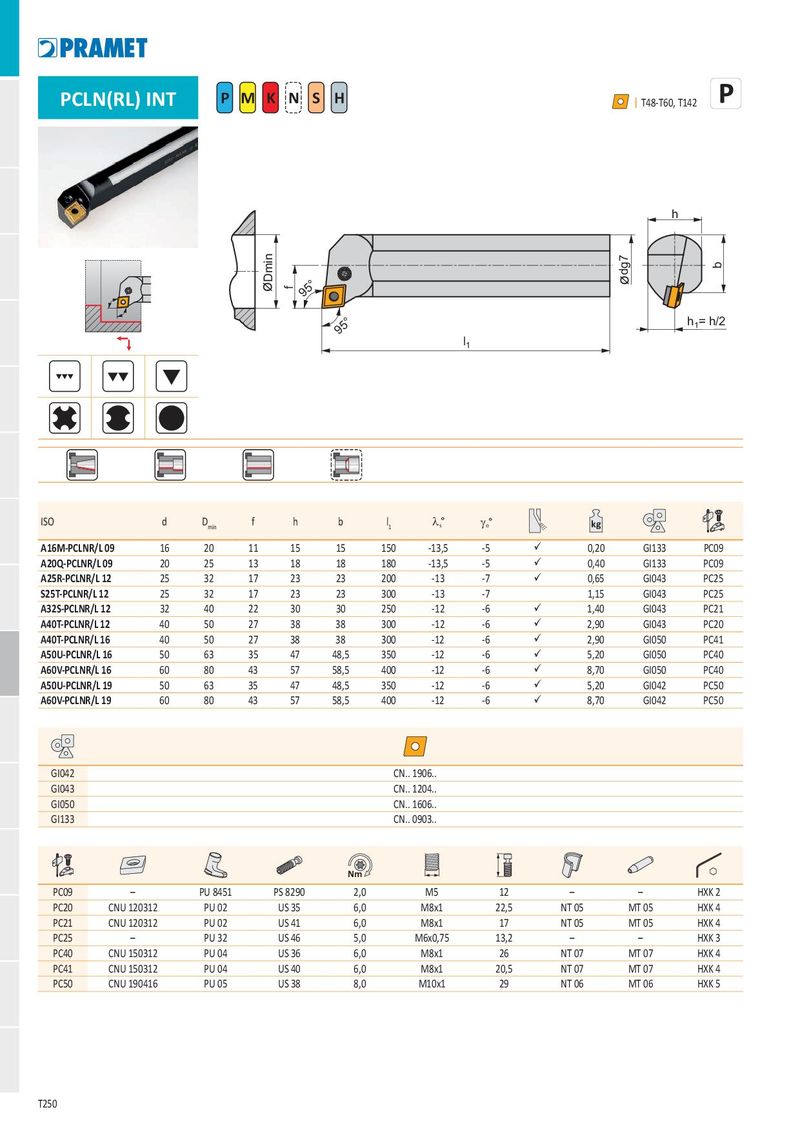

PCLN(RL) INT P M K N S H I
T48-T60, T142
h
95° h = h/2 95° 1 l 1
| ISO | d | Dmin | f | h | b | l1 | ls° | go° | kg | |||
| A16M-PCLNR/L 09 | 16 | 20 | 11 | 15 | 15 | 150 | -13,5 | -5 | ü | 0,20 | GI133 | PC09 |
| A20Q-PCLNR/L 09 | 20 | 25 | 13 | 18 | 18 | 180 | -13,5 | -5 | ü | 0,40 | GI133 | PC09 |
| A25R-PCLNR/L 12 | 25 | 32 | 17 | 23 | 23 | 200 | -13 | -7 | ü | 0,65 | GI043 | PC25 |
| S25T-PCLNR/L 12 | 25 | 32 | 17 | 23 | 23 | 300 | -13 | -7 | 1,15 | GI043 | PC25 | |
| A32S-PCLNR/L 12 | 32 | 40 | 22 | 30 | 30 | 250 | -12 | -6 | ü | 1,40 | GI043 | PC21 |
| A40T-PCLNR/L 12 | 40 | 50 | 27 | 38 | 38 | 300 | -12 | -6 | ü | 2,90 | GI043 | PC20 |
| A40T-PCLNR/L 16 | 40 | 50 | 27 | 38 | 38 | 300 | -12 | -6 | ü | 2,90 | GI050 | PC41 |
| A50U-PCLNR/L 16 | 50 | 63 | 35 | 47 | 48,5 | 350 | -12 | -6 | ü | 5,20 | GI050 | PC40 |
| A60V-PCLNR/L 16 | 60 | 80 | 43 | 57 | 58,5 | 400 | -12 | -6 | ü | 8,70 | GI050 | PC40 |
| A50U-PCLNR/L 19 | 50 | 63 | 35 | 47 | 48,5 | 350 | -12 | -6 | ü | 5,20 | GI042 | PC50 |
| A60V-PCLNR/L 19 | 60 | 80 | 43 | 57 | 58,5 | 400 | -12 | -6 | ü | 8,70 | GI042 | PC50 |
| GI042 | CN.. 1906.. |
| GI043 | CN.. 1204.. |
| GI050 | CN.. 1606.. |
| GI133 | CN.. 0903.. |
| Nm | |||||||||
| PC09 | – | PU 8451 | PS 8290 | 2,0 | M5 | 12 | – | – | HXK 2 |
| PC20 | CNU 120312 | PU 02 | US 35 | 6,0 | M8x1 | 22,5 | NT 05 | MT 05 | HXK 4 |
| PC21 | CNU 120312 | PU 02 | US 41 | 6,0 | M8x1 | 17 | NT 05 | MT 05 | HXK 4 |
| PC25 | – | PU 32 | US 46 | 5,0 | M6x0,75 | 13,2 | – | – | HXK 3 |
| PC40 | CNU 150312 | PU 04 | US 36 | 6,0 | M8x1 | 26 | NT 07 | MT 07 | HXK 4 |
| PC41 | CNU 150312 | PU 04 | US 40 | 6,0 | M8x1 | 20,5 | NT 07 | MT 07 | HXK 4 |
| PC50 | CNU 190416 | PU 05 | US 38 | 8,0 | M10x1 | 29 | NT 06 | MT 06 | HXK 5 |
