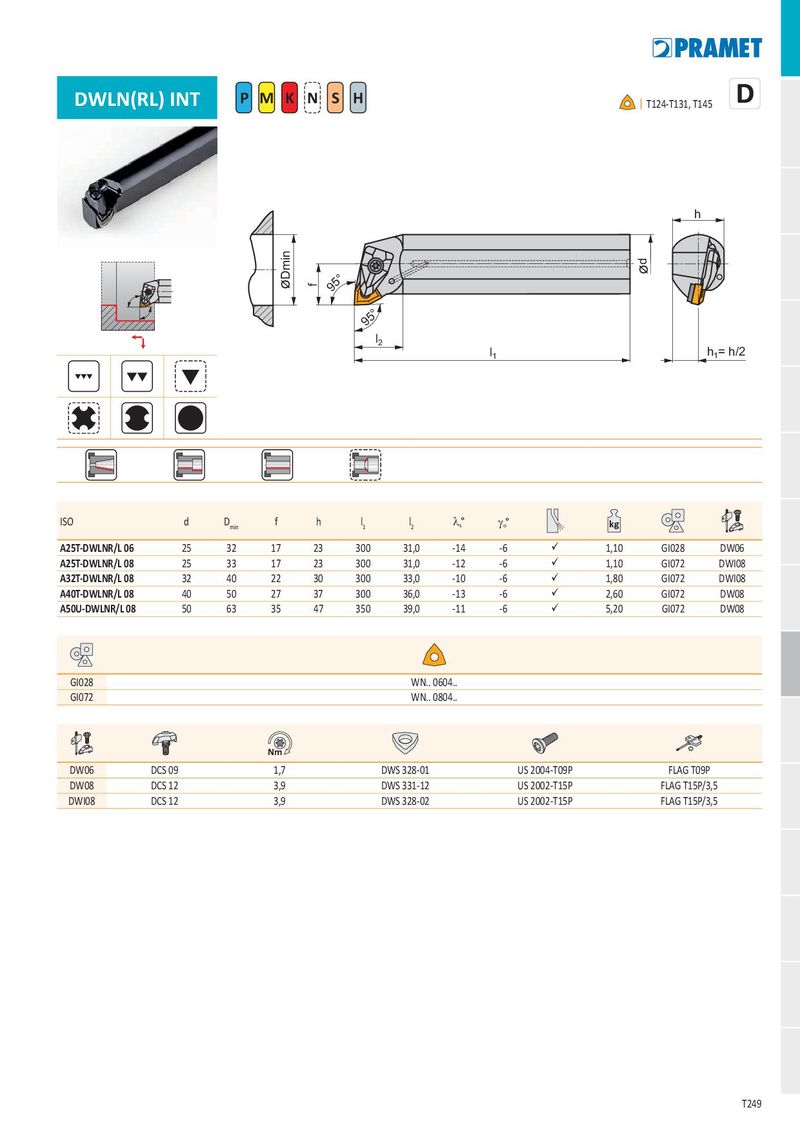

DWLN(RL) INT P M K N S H I
T124-T131, T145
f 95° 5° 9 l 2
h
h = h/2 l 1 1
| ISO | d | Dmin | f | h | l1 | l2 | ls° | go° | kg | |||
| A25T-DWLNR/L 06 | 25 | 32 | 17 | 23 | 300 | 31,0 | -14 | -6 | ü | 1,10 | GI028 | DW06 |
| A25T-DWLNR/L 08 | 25 | 33 | 17 | 23 | 300 | 31,0 | -12 | -6 | ü | 1,10 | GI072 | DWI08 |
| A32T-DWLNR/L 08 | 32 | 40 | 22 | 30 | 300 | 33,0 | -10 | -6 | ü | 1,80 | GI072 | DWI08 |
| A40T-DWLNR/L 08 | 40 | 50 | 27 | 37 | 300 | 36,0 | -13 | -6 | ü | 2,60 | GI072 | DW08 |
| A50U-DWLNR/L 08 | 50 | 63 | 35 | 47 | 350 | 39,0 | -11 | -6 | ü | 5,20 | GI072 | DW08 |
GI028 WN.. 0604.. GI072 WN.. 0804..
| Nm | |||||
| DW06 | DCS 09 | 1,7 | DWS 328-01 | US 2004-T09P | FLAG T09P |
| DW08 | DCS 12 | 3,9 | DWS 331-12 | US 2002-T15P | FLAG T15P/3,5 |
| DWI08 | DCS 12 | 3,9 | DWS 328-02 | US 2002-T15P | FLAG T15P/3,5 |
