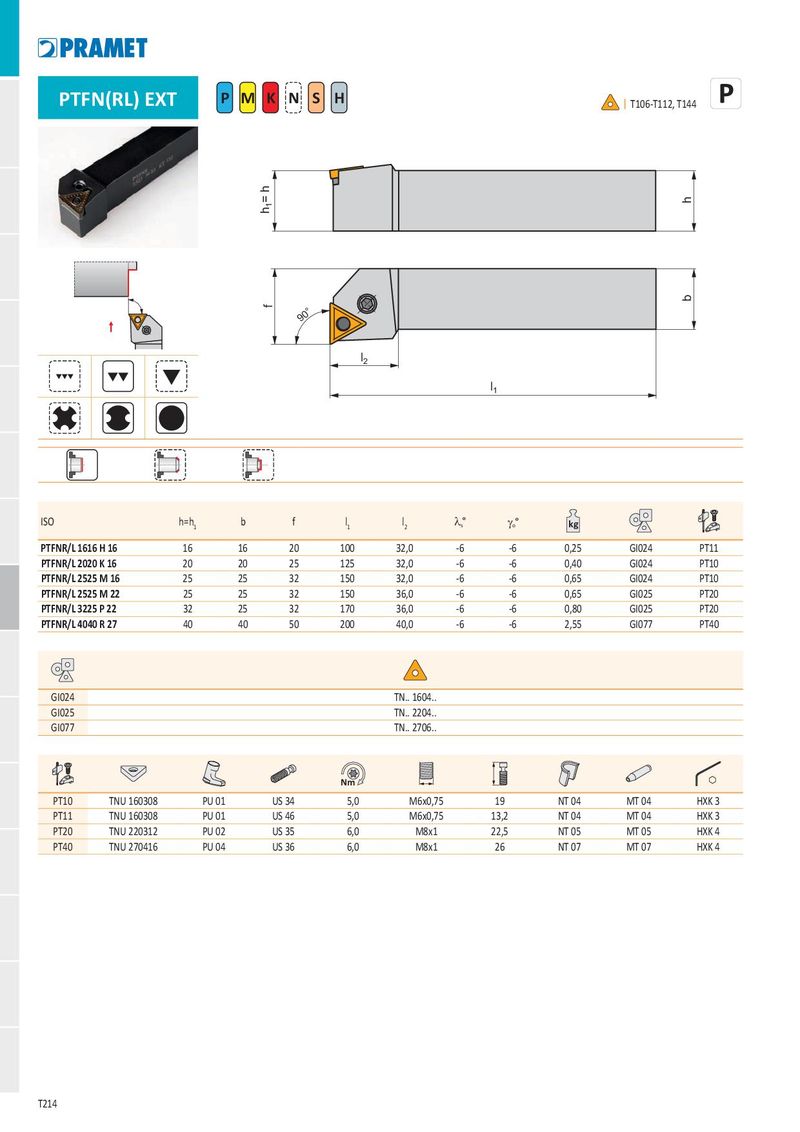

PTFN(RL) EXT P M K N S H
I T106-T112, T144
90° l 2
l 1
| ISO | h=h1 | b | f | l1 | l2 | ls° | go° | kg | ||
| PTFNR/L 1616 H 16 | 16 | 16 | 20 | 100 | 32,0 | -6 | -6 | 0,25 | GI024 | PT11 |
| PTFNR/L 2020 K 16 | 20 | 20 | 25 | 125 | 32,0 | -6 | -6 | 0,40 | GI024 | PT10 |
| PTFNR/L 2525 M 16 | 25 | 25 | 32 | 150 | 32,0 | -6 | -6 | 0,65 | GI024 | PT10 |
| PTFNR/L 2525 M 22 | 25 | 25 | 32 | 150 | 36,0 | -6 | -6 | 0,65 | GI025 | PT20 |
| PTFNR/L 3225 P 22 | 32 | 25 | 32 | 170 | 36,0 | -6 | -6 | 0,80 | GI025 | PT20 |
| PTFNR/L 4040 R 27 | 40 | 40 | 50 | 200 | 40,0 | -6 | -6 | 2,55 | GI077 | PT40 |
| GI024 | TN.. 1604.. | ||||||||
| GI025 | TN.. 2204.. | ||||||||
| GI077 | TN.. 2706.. | ||||||||
| Nm | |||||||||
| PT10 | TNU 160308 | PU 01 | US 34 | 5,0 | M6x0,75 | 19 | NT 04 | MT 04 | HXK 3 |
| PT11 | TNU 160308 | PU 01 | US 46 | 5,0 | M6x0,75 | 13,2 | NT 04 | MT 04 | HXK 3 |
| PT20 | TNU 220312 | PU 02 | US 35 | 6,0 | M8x1 | 22,5 | NT 05 | MT 05 | HXK 4 |
| PT40 | TNU 270416 | PU 04 | US 36 | 6,0 | M8x1 | 26 | NT 07 | MT 07 | HXK 4 |
