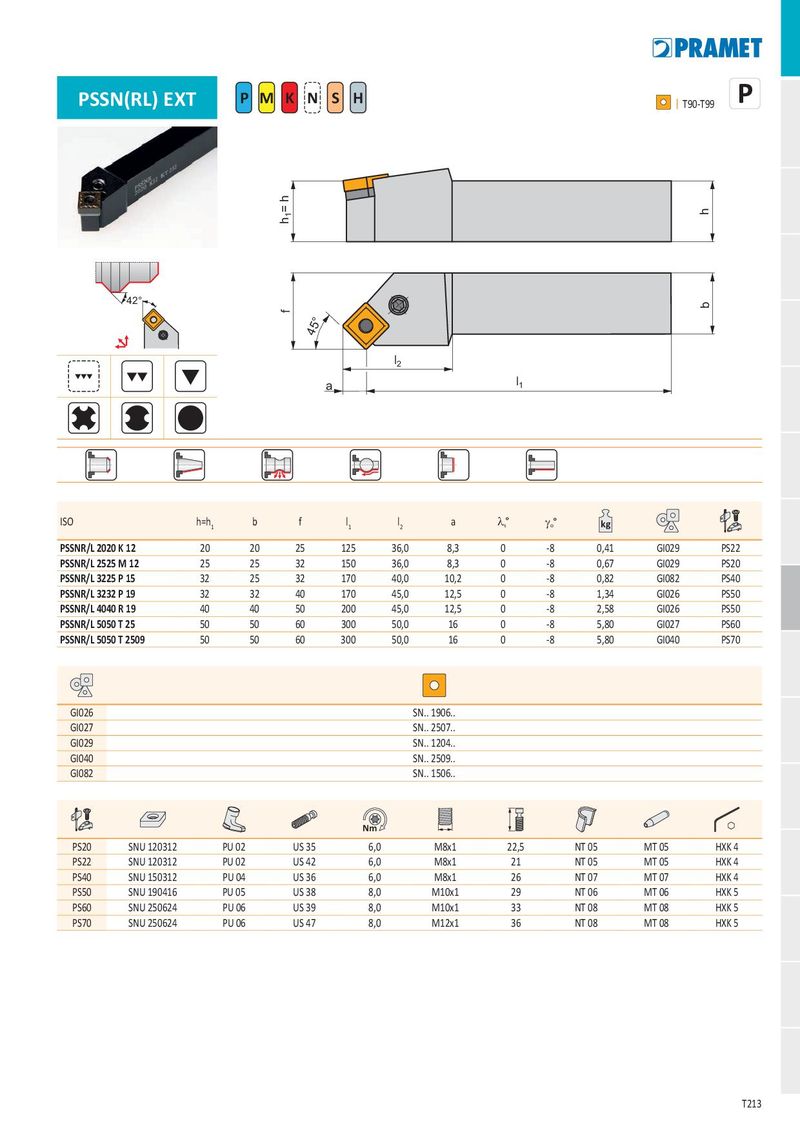

PSSN(RL) EXT	P M K N S H				I	T90-T99
	h1= h					h
42°	45° f					b
	a l2		l1
ISO h=h1	b f l1 l2	a	ls° go°	kg
PSSNR/L 2020 K 12 20	20 25 125 36,0	8,3	0 -8	0,41	GI029	PS22
PSSNR/L 2525 M 12 25	25 32 150 36,0	8,3	0 -8	0,67	GI029	PS20
PSSNR/L 3225 P 15 32	25 32 170 40,0	10,2	0 -8	0,82	GI082	PS40
PSSNR/L 3232 P 19 32	32 40 170 45,0	12,5	0 -8	1,34	GI026	PS50
PSSNR/L 4040 R 19 40	40 50 200 45,0	12,5	0 -8	2,58	GI026	PS50
PSSNR/L 5050 T 25 50	50 60 300 50,0	16	0 -8	5,80	GI027	PS60
PSSNR/L 5050 T 2509 50	50 60 300 50,0	16	0 -8	5,80	GI040	PS70
