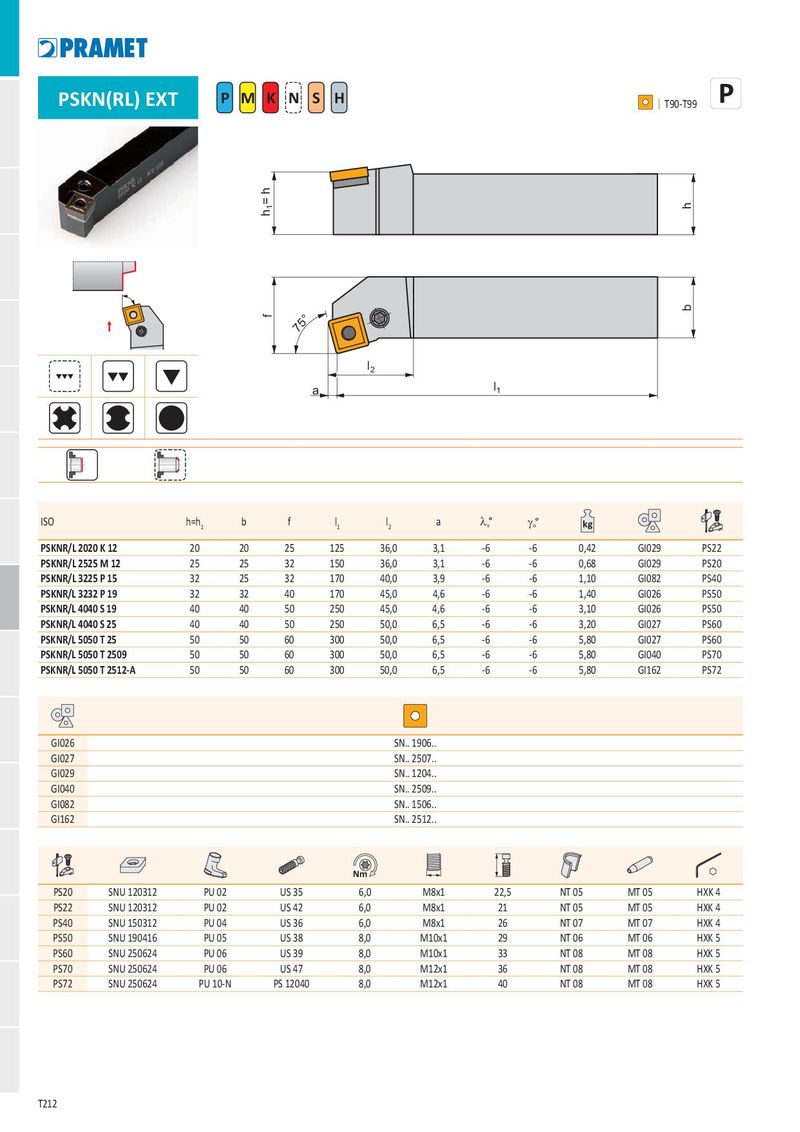

PSKN(RL) EXT P M K N S H I
T90-T99
75° l 2 a l 1
| ISO | h=h1 | b | f | l1 | l2 | a | ls° | go° | kg | ||
| PSKNR/L 2020 K 12 | 20 | 20 | 25 | 125 | 36,0 | 3,1 | -6 | -6 | 0,42 | GI029 | PS22 |
| PSKNR/L 2525 M 12 | 25 | 25 | 32 | 150 | 36,0 | 3,1 | -6 | -6 | 0,68 | GI029 | PS20 |
| PSKNR/L 3225 P 15 | 32 | 25 | 32 | 170 | 40,0 | 3,9 | -6 | -6 | 1,10 | GI082 | PS40 |
| PSKNR/L 3232 P 19 | 32 | 32 | 40 | 170 | 45,0 | 4,6 | -6 | -6 | 1,40 | GI026 | PS50 |
| PSKNR/L 4040 S 19 | 40 | 40 | 50 | 250 | 45,0 | 4,6 | -6 | -6 | 3,10 | GI026 | PS50 |
| PSKNR/L 4040 S 25 | 40 | 40 | 50 | 250 | 50,0 | 6,5 | -6 | -6 | 3,20 | GI027 | PS60 |
| PSKNR/L 5050 T 25 | 50 | 50 | 60 | 300 | 50,0 | 6,5 | -6 | -6 | 5,80 | GI027 | PS60 |
| PSKNR/L 5050 T 2509 | 50 | 50 | 60 | 300 | 50,0 | 6,5 | -6 | -6 | 5,80 | GI040 | PS70 |
| PSKNR/L 5050 T 2512-A | 50 | 50 | 60 | 300 | 50,0 | 6,5 | -6 | -6 | 5,80 | GI162 | PS72 |
| GI026 SN.. 1906.. |
| GI027 SN.. 2507.. |
| GI029 SN.. 1204.. |
| GI040 SN.. 2509.. |
| GI082 SN.. 1506.. |
| GI162 SN.. 2512.. |
| Nm | |||||||||
| PS20 | SNU 120312 | PU 02 | US 35 | 6,0 | M8x1 | 22,5 | NT 05 | MT 05 | HXK 4 |
| PS22 | SNU 120312 | PU 02 | US 42 | 6,0 | M8x1 | 21 | NT 05 | MT 05 | HXK 4 |
| PS40 | SNU 150312 | PU 04 | US 36 | 6,0 | M8x1 | 26 | NT 07 | MT 07 | HXK 4 |
| PS50 | SNU 190416 | PU 05 | US 38 | 8,0 | M10x1 | 29 | NT 06 | MT 06 | HXK 5 |
| PS60 | SNU 250624 | PU 06 | US 39 | 8,0 | M10x1 | 33 | NT 08 | MT 08 | HXK 5 |
| PS70 | SNU 250624 | PU 06 | US 47 | 8,0 | M12x1 | 36 | NT 08 | MT 08 | HXK 5 |
| PS72 | SNU 250624 | PU 10-N | PS 12040 | 8,0 | M12x1 | 40 | NT 08 | MT 08 | HXK 5 |
