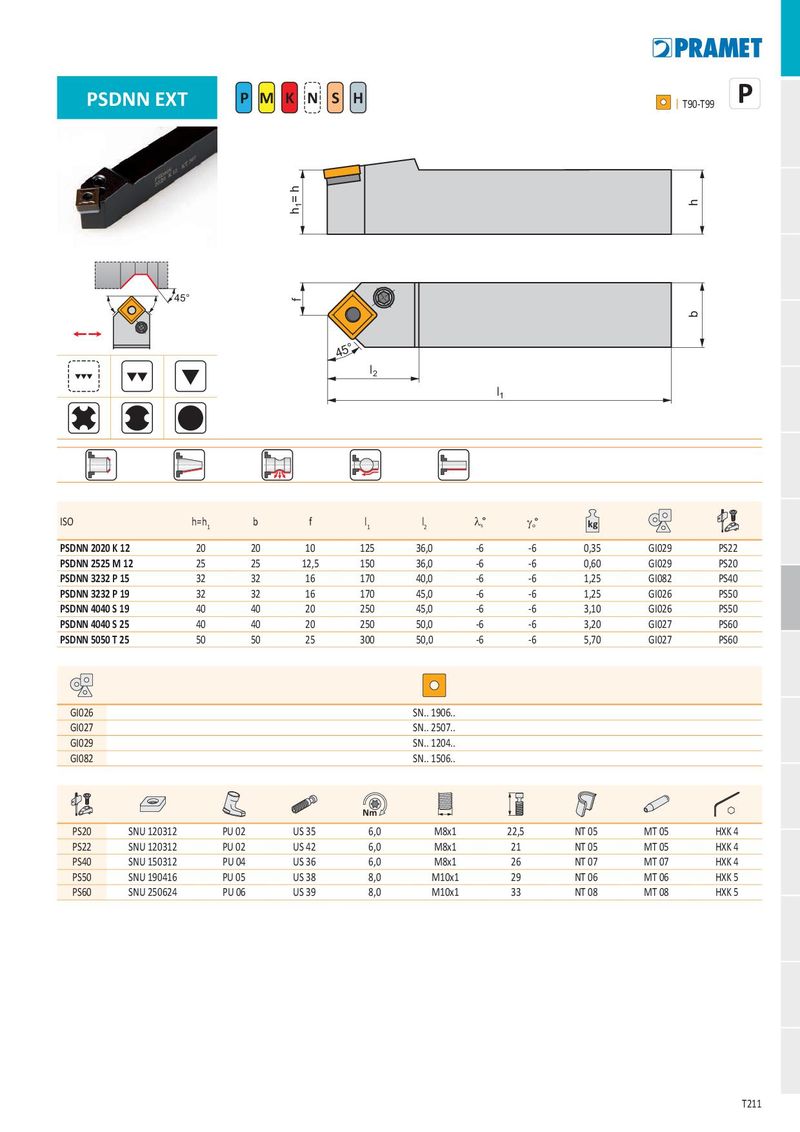

PSDNN EXTP M K N S HI T90-T99
h1= hh
45°° fb
45 l1 l2
ISOh=h1b f l1 l2 ls° go° kg
PSDNN 2020 K 122020 10 125 36,0 -6 -6 0,35GI029PS22
PSDNN 2525 M 122525 12,5 150 36,0 -6 -6 0,60GI029PS20
PSDNN 3232 P 153232 16 170 40,0 -6 -6 1,25GI082PS40
PSDNN 3232 P 193232 16 170 45,0 -6 -6 1,25GI026PS50
PSDNN 4040 S 194040 20 250 45,0 -6 -6 3,10GI026PS50
PSDNN 4040 S 254040 20 250 50,0 -6 -6 3,20GI027PS60
PSDNN 5050 T 255050 25 300 50,0 -6 -6 5,70GI027PS60
GI026SN.. 1906..
GI027SN.. 2507..
GI029SN.. 1204..
GI082SN.. 1506..
Nm
PS20SNU 120312PU 02US 356,0M8x122,5NT 05MT 05HXK 4
PS22SNU 120312PU 02US 426,0M8x121NT 05MT 05HXK 4
PS40SNU 150312PU 04US 366,0M8x126NT 07MT 07HXK 4
PS50SNU 190416PU 05US 388,0M10x129NT 06MT 06HXK 5
PS60SNU 250624PU 06US 398,0M10x133NT 08MT 08HXK 5
