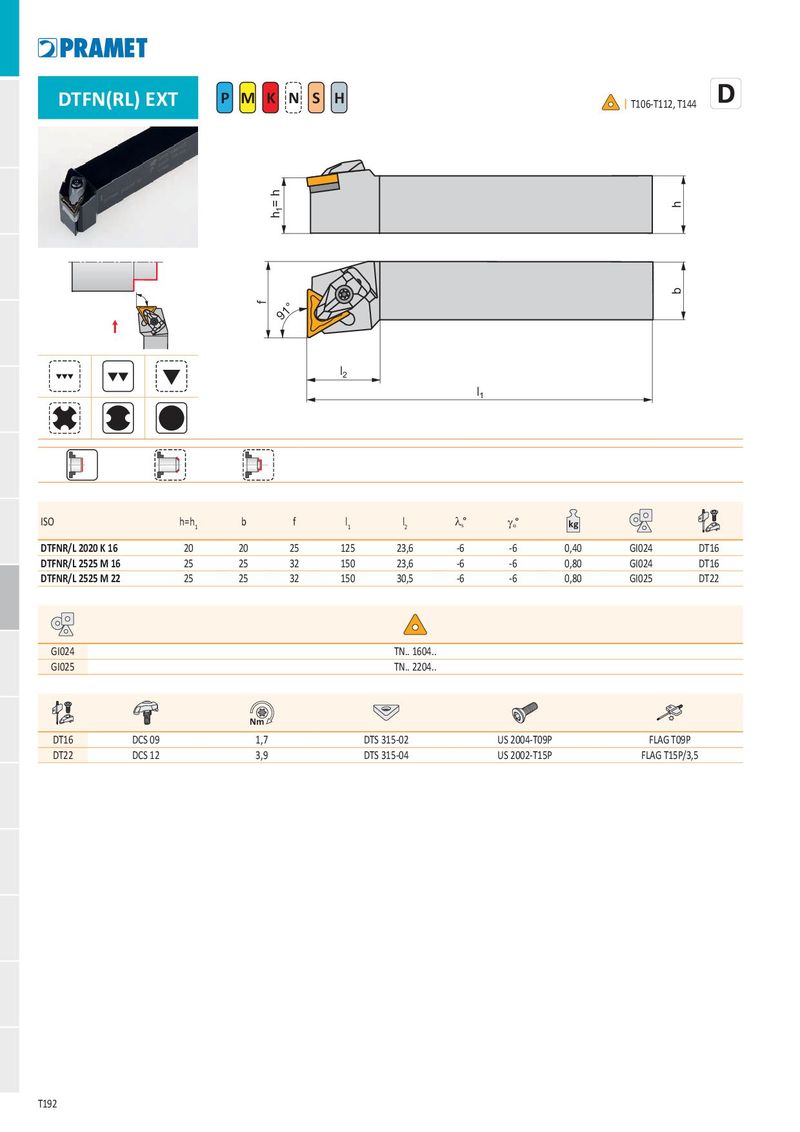

DTFN(RL) EXT P M K N S H I T106-T112, T144 = h 1 h h b f 91° l 2 l 1 ISO h=h 1 b f l 1 l 2 l s ° g o ° kg DTFNR/L 2020 K 16 20 20 25 125 23,6 -6 -6 0,40 GI024 DT16 DTFNR/L 2525 M 16 25 25 32 150 23,6 -6 -6 0,80 GI024 DT16 DTFNR/L 2525 M 22 25 25 32 150 30,5 -6 -6 0,80 GI025 DT22 GI024 TN.. 1604.. GI025 TN.. 2204.. Nm DT16 DCS 09 1,7 DTS 315-02 US 2004-T09P FLAG T09P DT22 DCS 12 3,9 DTS 315-04 US 2002-T15P FLAG T15P/3,5 T192
