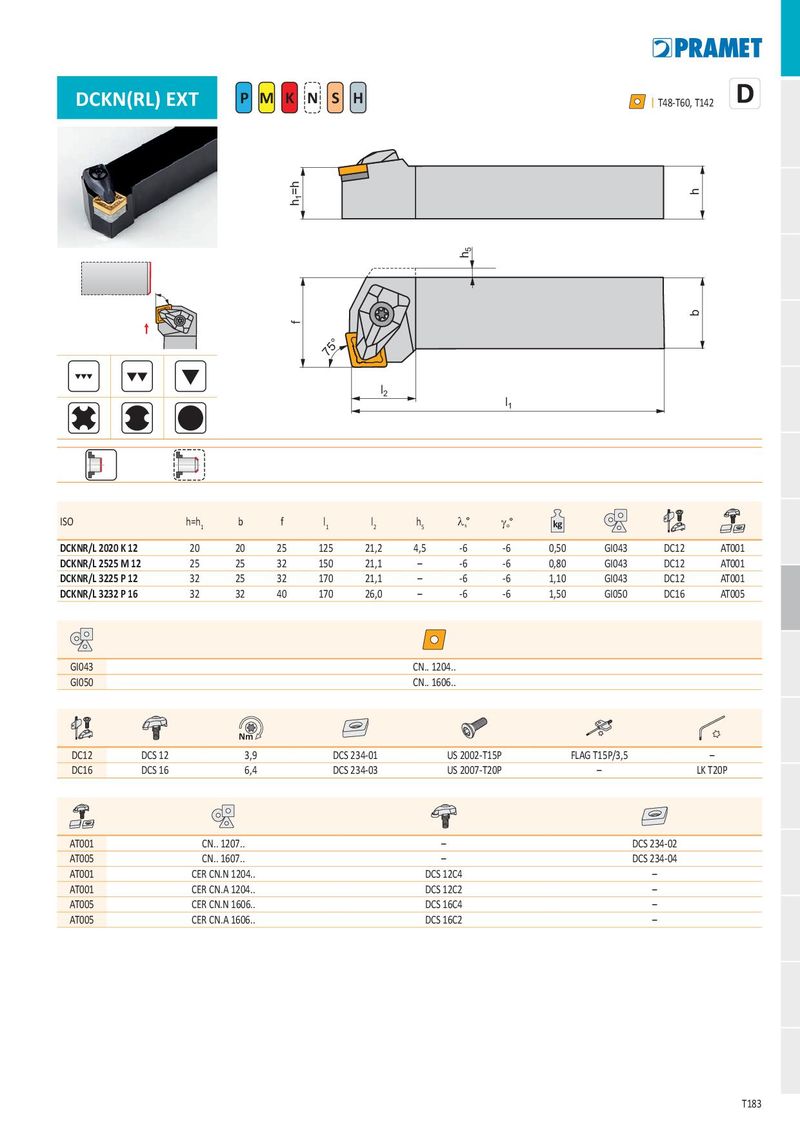

DCKN(RL) EXT P M K N S H I
T48-T60, T142
75
l 2 l 1
| ISO | h=h1 | b | f | l1 | l2 | h5 | ls° | go° | kg | |||
| DCKNR/L 2020 K 12 | 20 | 20 | 25 | 125 | 21,2 | 4,5 | -6 | -6 | 0,50 | GI043 | DC12 | AT001 |
| DCKNR/L 2525 M 12 | 25 | 25 | 32 | 150 | 21,1 | – | -6 | -6 | 0,80 | GI043 | DC12 | AT001 |
| DCKNR/L 3225 P 12 | 32 | 25 | 32 | 170 | 21,1 | – | -6 | -6 | 1,10 | GI043 | DC12 | AT001 |
| DCKNR/L 3232 P 16 | 32 | 32 | 40 | 170 | 26,0 | – | -6 | -6 | 1,50 | GI050 | DC16 | AT005 |
| GI043 | CN.. 1204.. |
| GI050 | CN.. 1606.. |
| Nm | ||||||
| DC12 | DCS 12 | 3,9 | DCS 234-01 | US 2002-T15P | FLAG T15P/3,5 | – |
| DC16 | DCS 16 | 6,4 | DCS 234-03 | US 2007-T20P | – | LK T20P |
| AT001 | CN.. 1207.. | – | DCS 234-02 |
| AT005 | CN.. 1607.. | – | DCS 234-04 |
| AT001 | CER CN.N 1204.. | DCS 12C4 | – |
| AT001 | CER CN.A 1204.. | DCS 12C2 | – |
| AT005 | CER CN.N 1606.. | DCS 16C4 | – |
| AT005 | CER CN.A 1606.. | DCS 16C2 | – |
