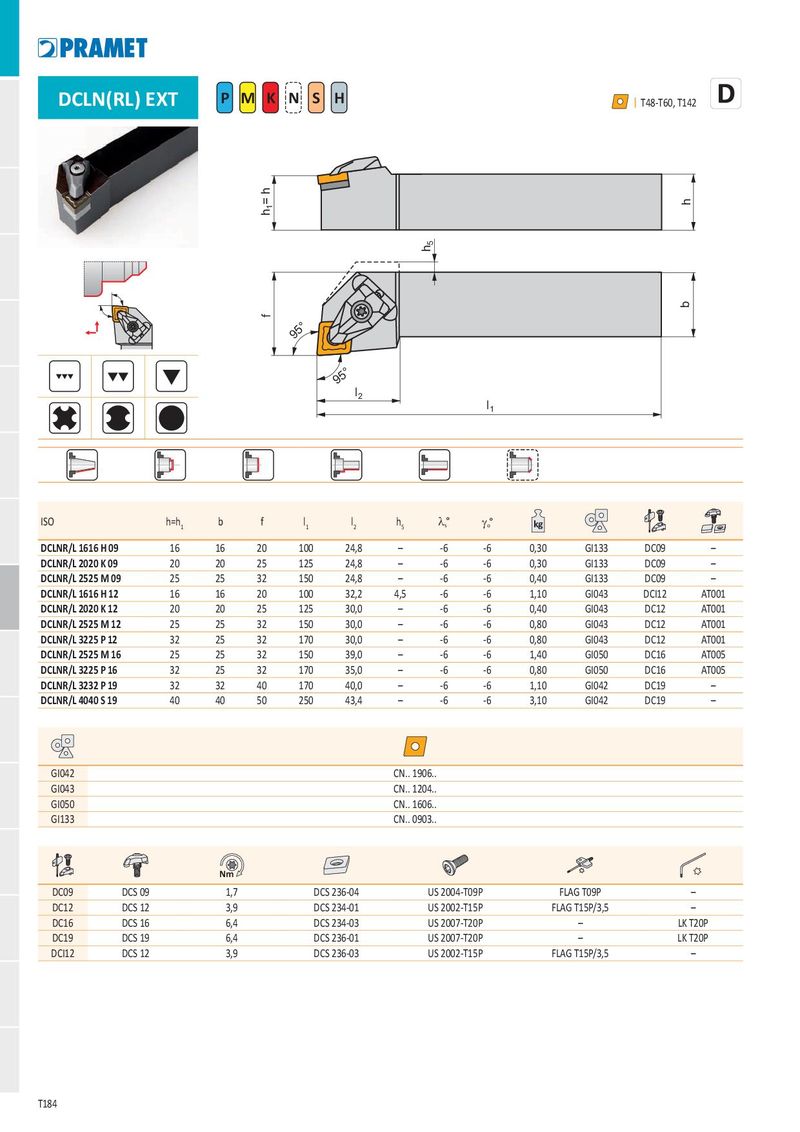

DCLN(RL) EXT P M K N S H I
T48-T60, T142
95°
95° l 2 l 1
| ISO | h=h1 | b | f | l1 | l2 | h5 | ls° | go° | kg | |||
| DCLNR/L 1616 H 09 | 16 | 16 | 20 | 100 | 24,8 | – | -6 | -6 | 0,30 | GI133 | DC09 | – |
| DCLNR/L 2020 K 09 | 20 | 20 | 25 | 125 | 24,8 | – | -6 | -6 | 0,30 | GI133 | DC09 | – |
| DCLNR/L 2525 M 09 | 25 | 25 | 32 | 150 | 24,8 | – | -6 | -6 | 0,40 | GI133 | DC09 | – |
| DCLNR/L 1616 H 12 | 16 | 16 | 20 | 100 | 32,2 | 4,5 | -6 | -6 | 1,10 | GI043 | DCI12 | AT001 |
| DCLNR/L 2020 K 12 | 20 | 20 | 25 | 125 | 30,0 | – | -6 | -6 | 0,40 | GI043 | DC12 | AT001 |
| DCLNR/L 2525 M 12 | 25 | 25 | 32 | 150 | 30,0 | – | -6 | -6 | 0,80 | GI043 | DC12 | AT001 |
| DCLNR/L 3225 P 12 | 32 | 25 | 32 | 170 | 30,0 | – | -6 | -6 | 0,80 | GI043 | DC12 | AT001 |
| DCLNR/L 2525 M 16 | 25 | 25 | 32 | 150 | 39,0 | – | -6 | -6 | 1,40 | GI050 | DC16 | AT005 |
| DCLNR/L 3225 P 16 | 32 | 25 | 32 | 170 | 35,0 | – | -6 | -6 | 0,80 | GI050 | DC16 | AT005 |
| DCLNR/L 3232 P 19 | 32 | 32 | 40 | 170 | 40,0 | – | -6 | -6 | 1,10 | GI042 | DC19 | – |
| DCLNR/L 4040 S 19 | 40 | 40 | 50 | 250 | 43,4 | – | -6 | -6 | 3,10 | GI042 | DC19 | – |
| GI042 | CN.. 1906.. |
| GI043 | CN.. 1204.. |
| GI050 | CN.. 1606.. |
| GI133 | CN.. 0903.. |
| Nm | ||||||
| DC09 | DCS 09 | 1,7 | DCS 236-04 | US 2004-T09P | FLAG T09P | – |
| DC12 | DCS 12 | 3,9 | DCS 234-01 | US 2002-T15P | FLAG T15P/3,5 | – |
| DC16 | DCS 16 | 6,4 | DCS 234-03 | US 2007-T20P | – | LK T20P |
| DC19 | DCS 19 | 6,4 | DCS 236-01 | US 2007-T20P | – | LK T20P |
| DCI12 | DCS 12 | 3,9 | DCS 236-03 | US 2002-T15P | FLAG T15P/3,5 | – |
