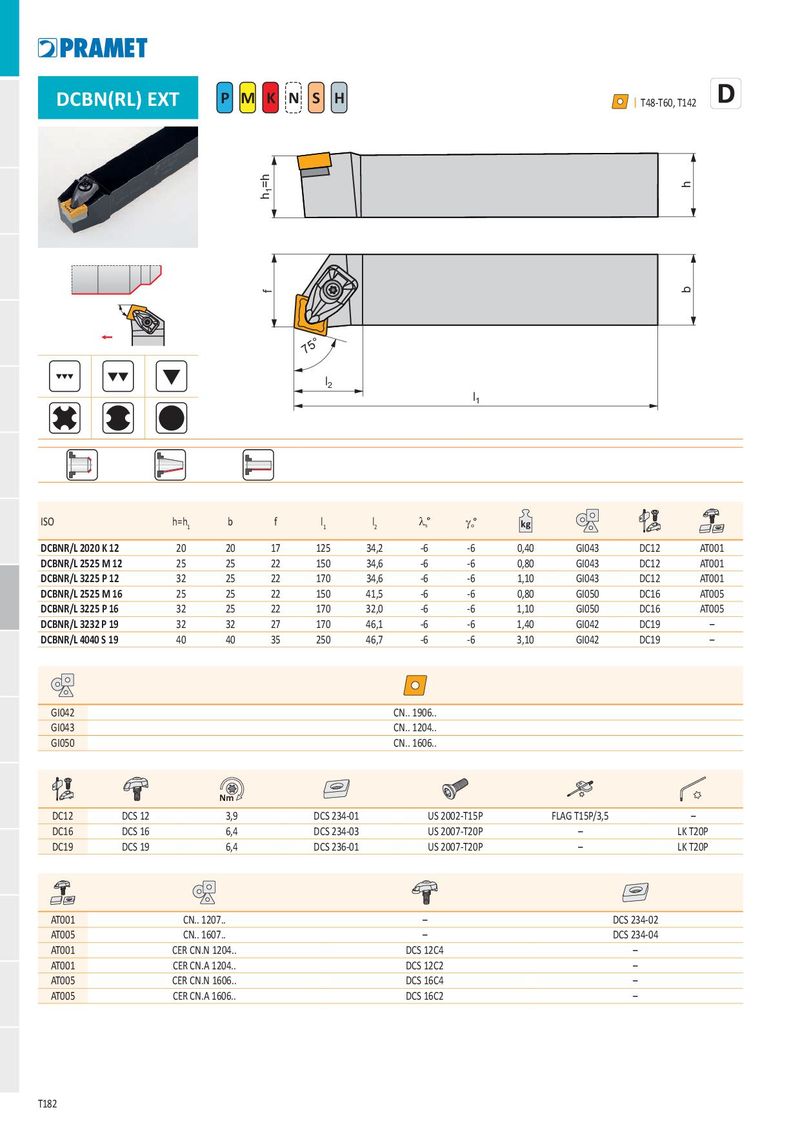

| DCBN(RL) EXT | P M K | N S H | I T48-T6 | 0, T142 | ||||
| h1=h | h | |||||||
| f | 75° | b | ||||||
| l2 | l1 | |||||||
| ISO h=h1 | b f | l1 l2 | ls° | go° | kg | |||
| DCBNR/L 2020 K 12 20 | 20 17 | 125 34,2 | -6 | -6 | 0,40 | GI043 | DC12 | AT001 |
| DCBNR/L 2525 M 12 25 | 25 22 | 150 34,6 | -6 | -6 | 0,80 | GI043 | DC12 | AT001 |
| DCBNR/L 3225 P 12 32 | 25 22 | 170 34,6 | -6 | -6 | 1,10 | GI043 | DC12 | AT001 |
| DCBNR/L 2525 M 16 25 | 25 22 | 150 41,5 | -6 | -6 | 0,80 | GI050 | DC16 | AT005 |
| DCBNR/L 3225 P 16 32 | 25 22 | 170 32,0 | -6 | -6 | 1,10 | GI050 | DC16 | AT005 |
| DCBNR/L 3232 P 19 32 | 32 27 | 170 46,1 | -6 | -6 | 1,40 | GI042 | DC19 | – |
| DCBNR/L 4040 S 19 40 | 40 35 | 250 46,7 | -6 | -6 | 3,10 | GI042 | DC19 | – |
| GI042 | CN.. 1906.. |
| GI043 | CN.. 1204.. |
| GI050 | CN.. 1606.. |
| Nm | ||||||
| DC12 | DCS 12 | 3,9 | DCS 234-01 | US 2002-T15P | FLAG T15P/3,5 | – |
| DC16 | DCS 16 | 6,4 | DCS 234-03 | US 2007-T20P | – | LK T20P |
| DC19 | DCS 19 | 6,4 | DCS 236-01 | US 2007-T20P | – | LK T20P |
| AT001 | CN.. 1207.. | – | DCS 234-02 |
| AT005 | CN.. 1607.. | – | DCS 234-04 |
| AT001 | CER CN.N 1204.. | DCS 12C4 | – |
| AT001 | CER CN.A 1204.. | DCS 12C2 | – |
| AT005 | CER CN.N 1606.. | DCS 16C4 | – |
| AT005 | CER CN.A 1606.. | DCS 16C2 | – |
