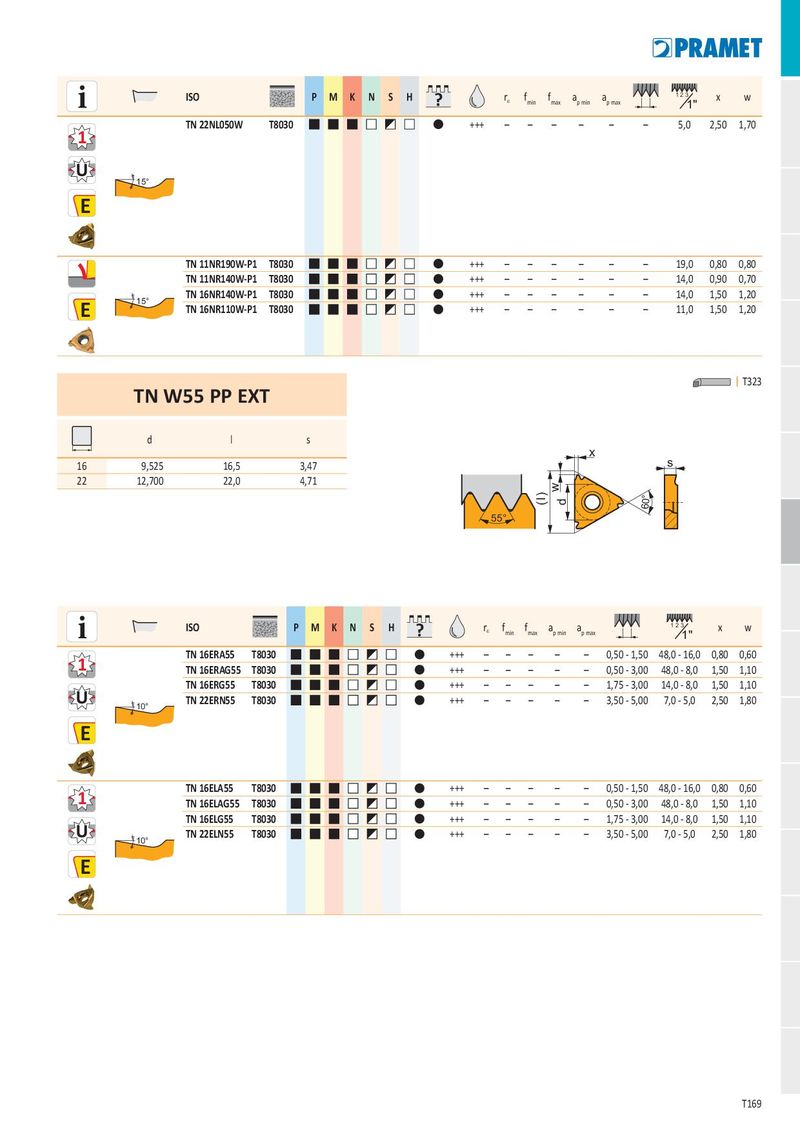

| ISO | PMKNSH | ? | r | f | f | a | a | 1 2 3 | x | w | ||||
| e | min | max | p min | p max | 1" | |||||||||
| 1 | TN 22NL050W | T8030 | +++ | – | – | – | – | – | – | 5,0 | 2,50 1,70 |
15°
E
| TN 11NR190W-P1 T8030 | +++ | – | – | – | – | – | – | 19,0 | 0,80 0,80 | ||
| TN 11NR140W-P1 T8030 | +++ | – | – | – | – | – | – | 14,0 | 0,90 0,70 | ||
| E | TN 16NR140W-P1 T8030 | +++ | – | – | – | – | – | – | 14,0 | 1,50 1,20 | |
| 15° | TN 16NR110W-P1 T8030 | +++ | – | – | – | – | – | – | 11,0 | 1,50 1,20 |
TN W55 PP EXT I T323
| d | l | s | |
| x | |||
| 16 | 9,525 | 16,5 | s 3,47 |
| 22 | 12,700 | 22,0 | 4,71 |
| 55° | |||
| i |
| ISO | ? PMKNSH | r | f | f | a | a | 1 2 3 | w x | |||
| e | min | max | p min | p max | 1" | ||||||
| 1 | TN 16ERA55 | T8030 | +++ | – | – | – | – | – | 0,50 - 1,50 48,0 - 16,0 0,80 0,60 | ||
| TN 16ERAG55 T8030 | +++ | – | – | – | – | – | 0,50 - 3,00 48,0 - 8,0 1,50 1,10 | ||||
| TN 16ERG55 | T8030 | +++ | – | – | – | – | – | 1,75 - 3,00 14,0 - 8,0 1,50 1,10 | |||
| TN 22ERN55 | T8030 | +++ | – | – | – | – | – | 3,50 - 5,00 | 7,0 - 5,0 | 2,50 1,80 | |
| 10° | |||||||||||
| E | |||||||||||
| 1 | TN 16ELA55 | T8030 | +++ | – | – | – | – | – | 0,50 - 1,50 48,0 - 16,0 0,80 0,60 | ||
| TN 16ELAG55 T8030 | +++ | – | – | – | – | – | 0,50 - 3,00 48,0 - 8,0 1,50 1,10 | ||||
| TN 16ELG55 | T8030 | +++ | – | – | – | – | – | 1,75 - 3,00 14,0 - 8,0 1,50 1,10 | |||
| TN 22ELN55 | T8030 | +++ | – | – | – | – | – | 3,50 - 5,00 | 7,0 - 5,0 | 2,50 1,80 |
10° E
