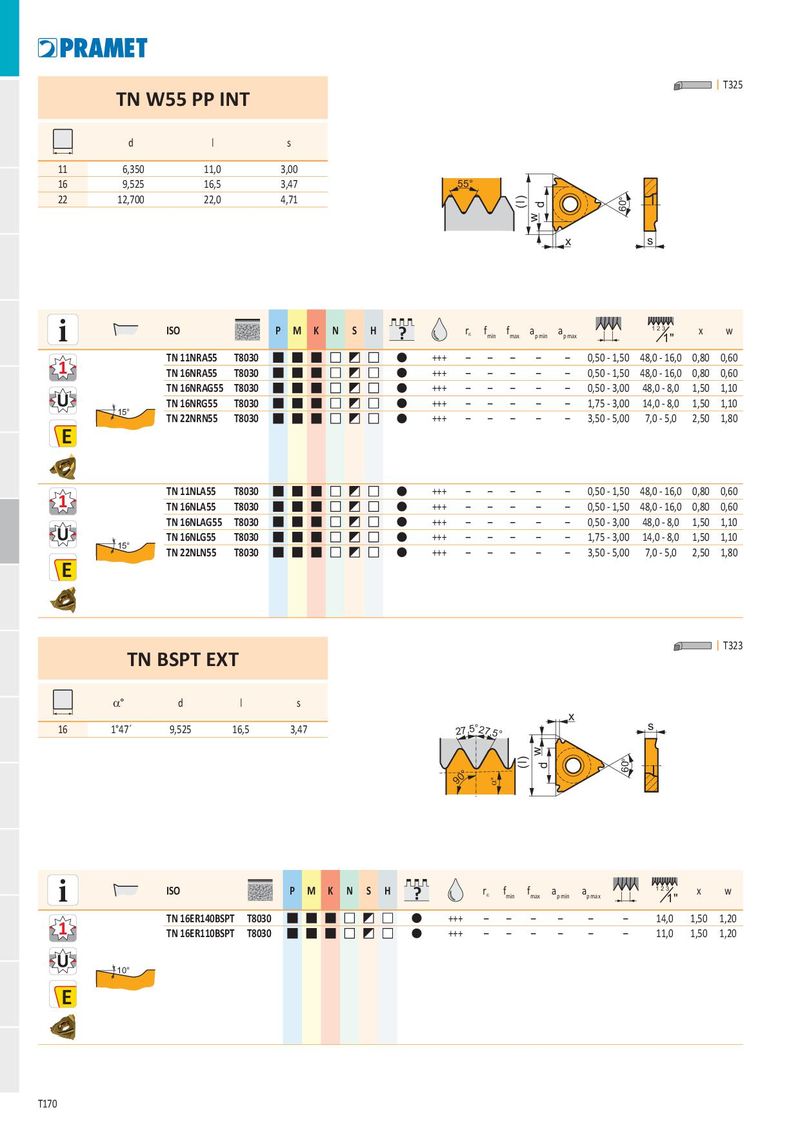

TN W55 PP INT I T325
| TN W5 | 5 PP INT | ||
| d | l s | ||
| 11 | 6,350 | 11,0 3,00 | |
| 16 | 9,525 | 16,5 3,47 | 55° |
| 22 | 12,700 | 22,0 4,71 | d (l) x w s 60° |
| i | ISO | P M K N S H | ? | re | fmin | fmax | ap min | ap max | 1 2 3 1" | x | w | ||||
| 1 | TN 11NRA55 | T8030 | +++ | – | – | – | – | – | 0,50 - 1,50 | 48,0 - 16,0 | 0,80 | 0,60 | |||
| TN 16NRA55 | T8030 | +++ | – | – | – | – | – | 0,50 - 1,50 | 48,0 - 16,0 | 0,80 | 0,60 | ||||
| TN 16NRAG55 | T8030 | +++ | – | – | – | – | – | 0,50 - 3,00 | 48,0 - 8,0 | 1,50 | 1,10 | ||||
| 15° | TN 16NRG55 | T8030 | +++ | – | – | – | – | – | 1,75 - 3,00 | 14,0 - 8,0 | 1,50 | 1,10 | |||
| E | TN 22NRN55 | T8030 | +++ | – | – | – | – | – | 3,50 - 5,00 | 7,0 - 5,0 | 2,50 | 1,80 | |||
| 1 | TN 11NLA55 | T8030 | +++ | – | – | – | – | – | 0,50 - 1,50 | 48,0 - 16,0 | 0,80 | 0,60 | |||
| TN 16NLA55 | T8030 | +++ | – | – | – | – | – | 0,50 - 1,50 | 48,0 - 16,0 | 0,80 | 0,60 | ||||
| TN 16NLAG55 | T8030 | +++ | – | – | – | – | – | 0,50 - 3,00 | 48,0 - 8,0 | 1,50 | 1,10 | ||||
| 15° | TN 16NLG55 | T8030 | +++ | – | – | – | – | – | 1,75 - 3,00 | 14,0 - 8,0 | 1,50 | 1,10 | |||
| E | TN 22NLN55 | T8030 | +++ | – | – | – | – | – | 3,50 - 5,00 | 7,0 - 5,0 | 2,50 | 1,80 |
TN BSPT EXT I T323
| a° | d | l | s | ||||
| x | |||||||
| 16 | 1°47´ | 9,525 | 16,5 | 3,47 | °27,5 | s |
27,5 °
90
i
| ISO | PMKNSH | ? | r | f | f | a | a | 1 2 3 | x | w | |||
| e | min | max | p min | p max | 1" | ||||||||
| 1 | TN 16ER140BSPT T8030 | +++ | – | – | – | – | – | – | 14,0 | 1,50 1,20 | |||
| TN 16ER110BSPT T8030 | +++ | – | – | – | – | – | – | 11,0 | 1,50 1,20 |
10°
