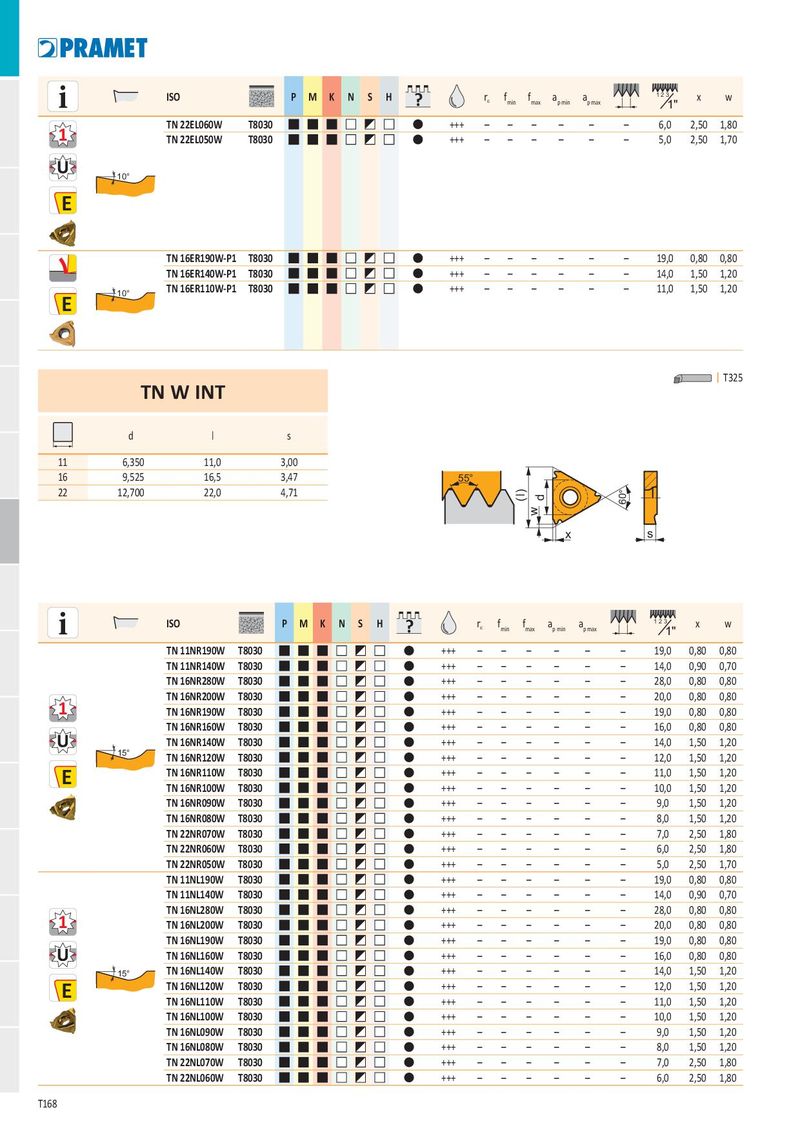

| ISO | PMKNSH | ? | r | f | f | a | a | 1 2 3 | x | w | ||||
| e | min | max | p min | p max | 1" | |||||||||
| 1 | TN 22EL060W | T8030 | +++ | – | – | – | – | – | – | 6,0 | 2,50 1,80 | |||
| TN 22EL050W | T8030 | +++ | – | – | – | – | – | – | 5,0 | 2,50 1,70 |
10°
E
| TN 16ER190W-P1 T8030 | +++ | – | – | – | – | – | – | 19,0 | 0,80 0,80 |
| TN 16ER140W-P1 T8030 | +++ | – | – | – | – | – | – | 14,0 | 1,50 1,20 |
| TN 16ER110W-P1 T8030 | +++ | – | – | – | – | – | – | 11,0 | 1,50 1,20 |
E 10°
TN W INT I T325
| d | l | s | ||
| 11 | 6,350 | 11,0 | 3,00 | |
| 16 | 9,525 | 16,5 | 3,47 | 55° |
| 22 | 12,700 | 22,0 | 4,71 |
x s
| i | ISO | P M K N S H | ? | re | fmin | fmax | ap min | ap max | 1 2 3 1" | x | w | ||||
| TN 11NR190W | T8030 | +++ | – | – | – | – | – | – | 19,0 | 0,80 | 0,80 | ||||
| TN 11NR140W | T8030 | +++ | – | – | – | – | – | – | 14,0 | 0,90 | 0,70 | ||||
| TN 16NR280W | T8030 | +++ | – | – | – | – | – | – | 28,0 | 0,80 | 0,80 | ||||
| TN 16NR200W | T8030 | +++ | – | – | – | – | – | – | 20,0 | 0,80 | 0,80 | ||||
| 1 | TN 16NR190W | T8030 | +++ | – | – | – | – | – | – | 19,0 | 0,80 | 0,80 | |||
| TN 16NR160W | T8030 | +++ | – | – | – | – | – | – | 16,0 | 0,80 | 0,80 | ||||
| TN 16NR140W | T8030 | +++ | – | – | – | – | – | – | 14,0 | 1,50 | 1,20 | ||||
| 15° | TN 16NR120W | T8030 | +++ | – | – | – | – | – | – | 12,0 | 1,50 | 1,20 | |||
| E | TN 16NR110W | T8030 | +++ | – | – | – | – | – | – | 11,0 | 1,50 | 1,20 | |||
| TN 16NR100W | T8030 | +++ | – | – | – | – | – | – | 10,0 | 1,50 | 1,20 | ||||
| TN 16NR090W | T8030 | +++ | – | – | – | – | – | – | 9,0 | 1,50 | 1,20 | ||||
| TN 16NR080W | T8030 | +++ | – | – | – | – | – | – | 8,0 | 1,50 | 1,20 | ||||
| TN 22NR070W | T8030 | +++ | – | – | – | – | – | – | 7,0 | 2,50 | 1,80 | ||||
| TN 22NR060W | T8030 | +++ | – | – | – | – | – | – | 6,0 | 2,50 | 1,80 | ||||
| TN 22NR050W | T8030 | +++ | – | – | – | – | – | – | 5,0 | 2,50 | 1,70 | ||||
| TN 11NL190W | T8030 | +++ | – | – | – | – | – | – | 19,0 | 0,80 | 0,80 | ||||
| TN 11NL140W | T8030 | +++ | – | – | – | – | – | – | 14,0 | 0,90 | 0,70 | ||||
| TN 16NL280W | T8030 | +++ | – | – | – | – | – | – | 28,0 | 0,80 | 0,80 | ||||
| 1 | TN 16NL200W | T8030 | +++ | – | – | – | – | – | – | 20,0 | 0,80 | 0,80 | |||
| TN 16NL190W | T8030 | +++ | – | – | – | – | – | – | 19,0 | 0,80 | 0,80 | ||||
| TN 16NL160W | T8030 | +++ | – | – | – | – | – | – | 16,0 | 0,80 | 0,80 | ||||
| 15° | TN 16NL140W | T8030 | +++ | – | – | – | – | – | – | 14,0 | 1,50 | 1,20 | |||
| E | TN 16NL120W | T8030 | +++ | – | – | – | – | – | – | 12,0 | 1,50 | 1,20 | |||
| TN 16NL110W | T8030 | +++ | – | – | – | – | – | – | 11,0 | 1,50 | 1,20 | ||||
| TN 16NL100W | T8030 | +++ | – | – | – | – | – | – | 10,0 | 1,50 | 1,20 | ||||
| TN 16NL090W | T8030 | +++ | – | – | – | – | – | – | 9,0 | 1,50 | 1,20 | ||||
| TN 16NL080W | T8030 | +++ | – | – | – | – | – | – | 8,0 | 1,50 | 1,20 | ||||
| TN 22NL070W | T8030 | +++ | – | – | – | – | – | – | 7,0 | 2,50 | 1,80 | ||||
| TN 22NL060W | T8030 | +++ | – | – | – | – | – | – | 6,0 | 2,50 | 1,80 |
