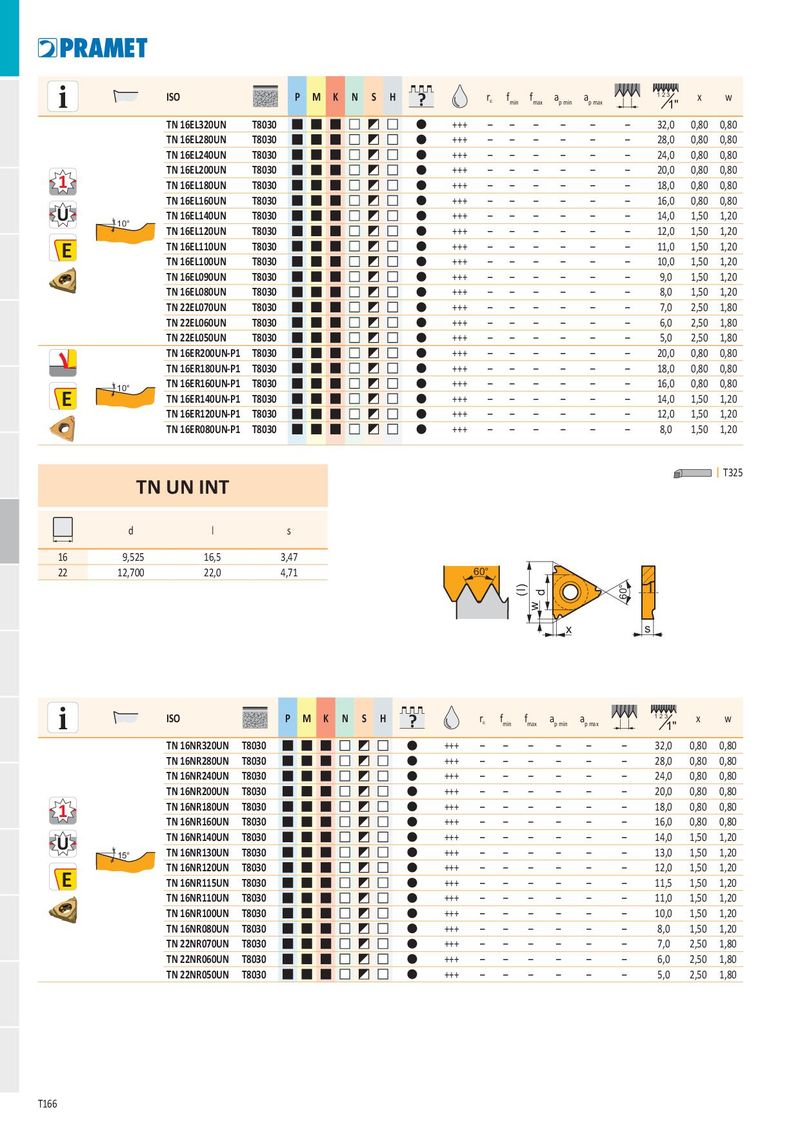

| i | ISO | P M K N S H | ? | re | fmin | fmax | ap min | ap max | 1 2 3 1" | x | w | ||||
| TN 16EL320UN | T8030 | +++ | – | – | – | – | – | – | 32,0 | 0,80 | 0,80 | ||||
| TN 16EL280UN | T8030 | +++ | – | – | – | – | – | – | 28,0 | 0,80 | 0,80 | ||||
| TN 16EL240UN | T8030 | +++ | – | – | – | – | – | – | 24,0 | 0,80 | 0,80 | ||||
| TN 16EL200UN | T8030 | +++ | – | – | – | – | – | – | 20,0 | 0,80 | 0,80 | ||||
| 1 | TN 16EL180UN | T8030 | +++ | – | – | – | – | – | – | 18,0 | 0,80 | 0,80 | |||
| TN 16EL160UN | T8030 | +++ | – | – | – | – | – | – | 16,0 | 0,80 | 0,80 | ||||
| 10° | TN 16EL140UN | T8030 | +++ | – | – | – | – | – | – | 14,0 | 1,50 | 1,20 | |||
| TN 16EL120UN | T8030 | +++ | – | – | – | – | – | – | 12,0 | 1,50 | 1,20 | ||||
| E | TN 16EL110UN | T8030 | +++ | – | – | – | – | – | – | 11,0 | 1,50 | 1,20 | |||
| TN 16EL100UN | T8030 | +++ | – | – | – | – | – | – | 10,0 | 1,50 | 1,20 | ||||
| TN 16EL090UN | T8030 | +++ | – | – | – | – | – | – | 9,0 | 1,50 | 1,20 | ||||
| TN 16EL080UN | T8030 | +++ | – | – | – | – | – | – | 8,0 | 1,50 | 1,20 | ||||
| TN 22EL070UN | T8030 | +++ | – | – | – | – | – | – | 7,0 | 2,50 | 1,80 | ||||
| TN 22EL060UN | T8030 | +++ | – | – | – | – | – | – | 6,0 | 2,50 | 1,80 | ||||
| TN 22EL050UN | T8030 | +++ | – | – | – | – | – | – | 5,0 | 2,50 | 1,80 | ||||
| TN 16ER200UN-P1 | T8030 | +++ | – | – | – | – | – | – | 20,0 | 0,80 | 0,80 | ||||
| TN 16ER180UN-P1 | T8030 | +++ | – | – | – | – | – | – | 18,0 | 0,80 | 0,80 | ||||
| 10° | TN 16ER160UN-P1 | T8030 | +++ | – | – | – | – | – | – | 16,0 | 0,80 | 0,80 | |||
| E | TN 16ER140UN-P1 | T8030 | +++ | – | – | – | – | – | – | 14,0 | 1,50 | 1,20 | |||
| TN 16ER120UN-P1 | T8030 | +++ | – | – | – | – | – | – | 12,0 | 1,50 | 1,20 | ||||
| TN 16ER080UN-P1 | T8030 | +++ | – | – | – | – | – | – | 8,0 | 1,50 | 1,20 |
TN UN INT I T325
| d | l | s | ||||
| 16 | 9,525 | 16,5 | 3,47 | |||
| 22 | 12,700 | 22,0 | 4,71 | 60° | d (l) x w | s 60° |
| i | ISO | P M K N S H | ? | re | fmin | fmax | ap min | ap max | 1 2 3 1" | x | w | ||||
| TN 16NR320UN | T8030 | +++ | – | – | – | – | – | – | 32,0 | 0,80 | 0,80 | ||||
| TN 16NR280UN | T8030 | +++ | – | – | – | – | – | – | 28,0 | 0,80 | 0,80 | ||||
| TN 16NR240UN | T8030 | +++ | – | – | – | – | – | – | 24,0 | 0,80 | 0,80 | ||||
| TN 16NR200UN | T8030 | +++ | – | – | – | – | – | – | 20,0 | 0,80 | 0,80 | ||||
| 1 | TN 16NR180UN | T8030 | +++ | – | – | – | – | – | – | 18,0 | 0,80 | 0,80 | |||
| TN 16NR160UN | T8030 | +++ | – | – | – | – | – | – | 16,0 | 0,80 | 0,80 | ||||
| TN 16NR140UN | T8030 | +++ | – | – | – | – | – | – | 14,0 | 1,50 | 1,20 | ||||
| 15° | TN 16NR130UN | T8030 | +++ | – | – | – | – | – | – | 13,0 | 1,50 | 1,20 | |||
| TN 16NR120UN | T8030 | +++ | – | – | – | – | – | – | 12,0 | 1,50 | 1,20 | ||||
| E | TN 16NR115UN | T8030 | +++ | – | – | – | – | – | – | 11,5 | 1,50 | 1,20 | |||
| TN 16NR110UN | T8030 | +++ | – | – | – | – | – | – | 11,0 | 1,50 | 1,20 | ||||
| TN 16NR100UN | T8030 | +++ | – | – | – | – | – | – | 10,0 | 1,50 | 1,20 | ||||
| TN 16NR080UN | T8030 | +++ | – | – | – | – | – | – | 8,0 | 1,50 | 1,20 | ||||
| TN 22NR070UN | T8030 | +++ | – | – | – | – | – | – | 7,0 | 2,50 | 1,80 | ||||
| TN 22NR060UN | T8030 | +++ | – | – | – | – | – | – | 6,0 | 2,50 | 1,80 | ||||
| TN 22NR050UN | T8030 | +++ | – | – | – | – | – | – | 5,0 | 2,50 | 1,80 |
