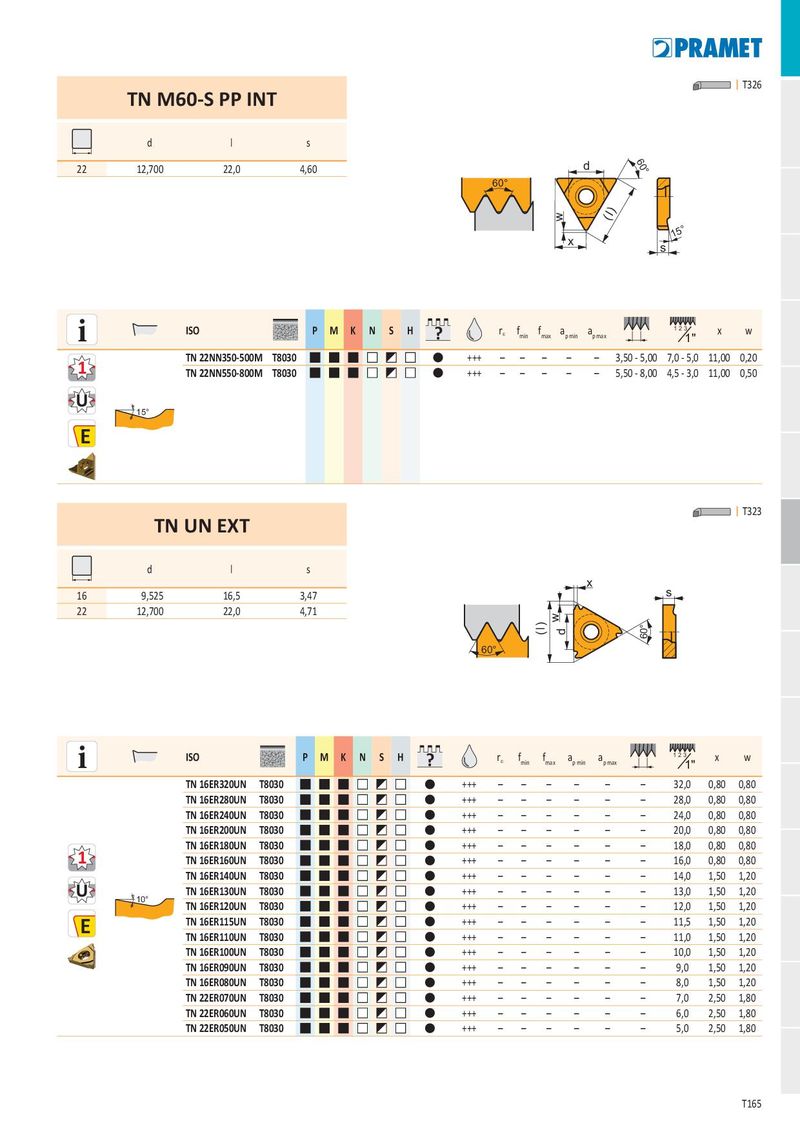

TN M60-S PP INT
| d | l | s | ||
| 22 | 12,700 | 22,0 | 4,60 |
i
ISO PMKNSH 1 TN 22NN350-500M T8030 TN 22NN550-800M T8030
15°
E
TN UN EXT
| d | l | s | ||
| 16 | 9,525 | 16,5 | 3,47 | |
| 22 | 12,700 | 22,0 | 4,71 |
I T326
d 60° 60° (l) x 15° s
| r | f | f | a | a | 1 2 3 | x | w | ||
| e | min | max | p min | p max | 1" | ||||
| +++ | – | – | – | – | – | 3,50 - 5,00 7,0 - 5,0 11,00 0,20 | |||
| +++ | – | – | – | – | – | 5,50 - 8,00 4,5 - 3,0 11,00 0,50 |
I T323
x s
60°
| i | ISO | P M K N S H | ? | re | fmin | fmax | ap min | ap max | 1 2 3 1" | x | w | ||||
| TN 16ER320UN | T8030 | +++ | – | – | – | – | – | – | 32,0 | 0,80 | 0,80 | ||||
| TN 16ER280UN | T8030 | +++ | – | – | – | – | – | – | 28,0 | 0,80 | 0,80 | ||||
| TN 16ER240UN | T8030 | +++ | – | – | – | – | – | – | 24,0 | 0,80 | 0,80 | ||||
| TN 16ER200UN | T8030 | +++ | – | – | – | – | – | – | 20,0 | 0,80 | 0,80 | ||||
| TN 16ER180UN | T8030 | +++ | – | – | – | – | – | – | 18,0 | 0,80 | 0,80 | ||||
| 1 | TN 16ER160UN | T8030 | +++ | – | – | – | – | – | – | 16,0 | 0,80 | 0,80 | |||
| TN 16ER140UN | T8030 | +++ | – | – | – | – | – | – | 14,0 | 1,50 | 1,20 | ||||
| 10° | TN 16ER130UN | T8030 | +++ | – | – | – | – | – | – | 13,0 | 1,50 | 1,20 | |||
| TN 16ER120UN | T8030 | +++ | – | – | – | – | – | – | 12,0 | 1,50 | 1,20 | ||||
| E | TN 16ER115UN | T8030 | +++ | – | – | – | – | – | – | 11,5 | 1,50 | 1,20 | |||
| TN 16ER110UN | T8030 | +++ | – | – | – | – | – | – | 11,0 | 1,50 | 1,20 | ||||
| TN 16ER100UN | T8030 | +++ | – | – | – | – | – | – | 10,0 | 1,50 | 1,20 | ||||
| TN 16ER090UN | T8030 | +++ | – | – | – | – | – | – | 9,0 | 1,50 | 1,20 | ||||
| TN 16ER080UN | T8030 | +++ | – | – | – | – | – | – | 8,0 | 1,50 | 1,20 | ||||
| TN 22ER070UN | T8030 | +++ | – | – | – | – | – | – | 7,0 | 2,50 | 1,80 | ||||
| TN 22ER060UN | T8030 | +++ | – | – | – | – | – | – | 6,0 | 2,50 | 1,80 | ||||
| TN 22ER050UN | T8030 | +++ | – | – | – | – | – | – | 5,0 | 2,50 | 1,80 |
