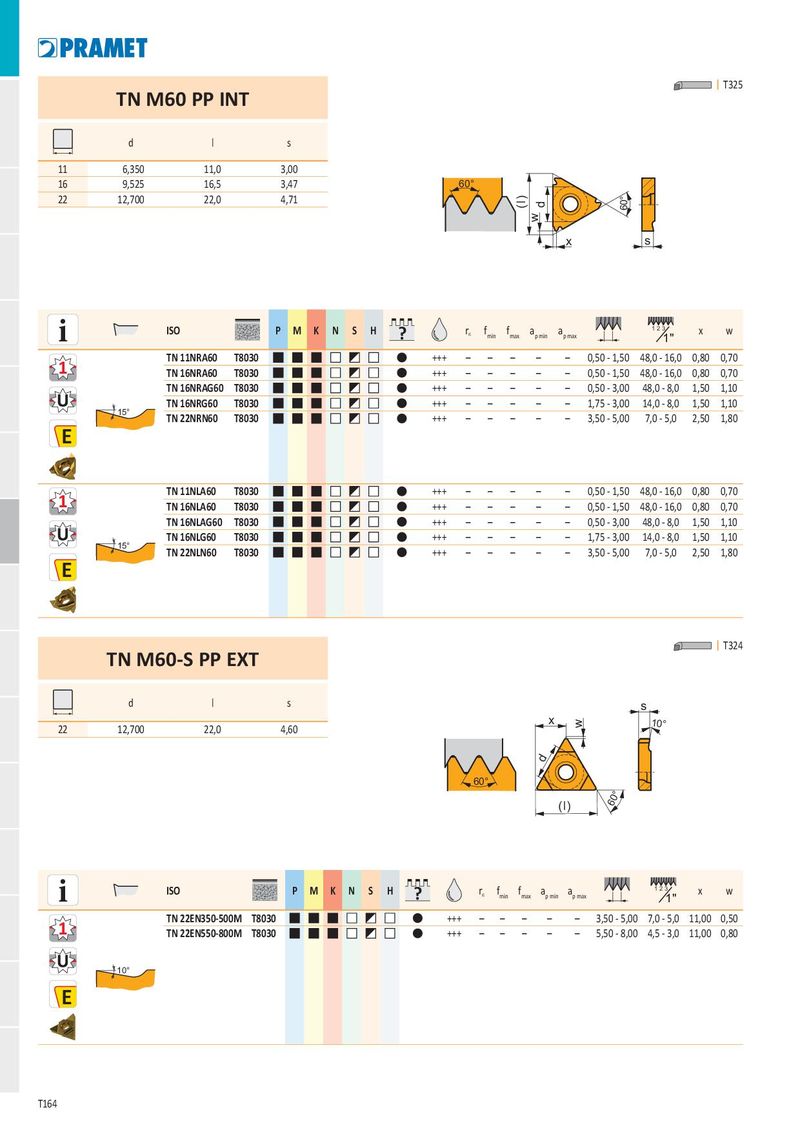

TN M60 PP INT I T325
| TN M60 | PP INT | |
| d | l s | |
| 11 | 6,350 | 11,0 3,00 |
| 16 | 9,525 | 16,5 3,47 |
| 22 | 12,700 | 22,0 4,71 |
x s
| i | ISO | P M K N S H | ? | re | fmin | fmax | ap min | ap max | 1 2 3 1" | x | w | ||||
| 1 | TN 11NRA60 | T8030 | +++ | – | – | – | – | – | 0,50 - 1,50 | 48,0 - 16,0 | 0,80 | 0,70 | |||
| TN 16NRA60 | T8030 | +++ | – | – | – | – | – | 0,50 - 1,50 | 48,0 - 16,0 | 0,80 | 0,70 | ||||
| TN 16NRAG60 | T8030 | +++ | – | – | – | – | – | 0,50 - 3,00 | 48,0 - 8,0 | 1,50 | 1,10 | ||||
| 15° | TN 16NRG60 | T8030 | +++ | – | – | – | – | – | 1,75 - 3,00 | 14,0 - 8,0 | 1,50 | 1,10 | |||
| E | TN 22NRN60 | T8030 | +++ | – | – | – | – | – | 3,50 - 5,00 | 7,0 - 5,0 | 2,50 | 1,80 | |||
| 1 | TN 11NLA60 | T8030 | +++ | – | – | – | – | – | 0,50 - 1,50 | 48,0 - 16,0 | 0,80 | 0,70 | |||
| TN 16NLA60 | T8030 | +++ | – | – | – | – | – | 0,50 - 1,50 | 48,0 - 16,0 | 0,80 | 0,70 | ||||
| TN 16NLAG60 | T8030 | +++ | – | – | – | – | – | 0,50 - 3,00 | 48,0 - 8,0 | 1,50 | 1,10 | ||||
| 15° | TN 16NLG60 | T8030 | +++ | – | – | – | – | – | 1,75 - 3,00 | 14,0 - 8,0 | 1,50 | 1,10 | |||
| E | TN 22NLN60 | T8030 | +++ | – | – | – | – | – | 3,50 - 5,00 | 7,0 - 5,0 | 2,50 | 1,80 |
TN M60-S PP EXT I T324
| d | l | s | s | ||
| x | 10° | ||||
| 22 | 12,700 | 22,0 | 4,60 | ||
| d | |||||
| 60° | |||||
| 60° (l) | |||||
| i |
| ISO | PMKNSH | ? | r | f | f | a | a | 1 2 3 | x | w | ||||
| e | min | max | p min | p max | 1" | |||||||||
| 1 | TN 22EN350-500M T8030 | +++ | – | – | – | – | – | 3,50 - 5,00 7,0 - 5,0 11,00 0,50 | ||||||
| TN 22EN550-800M T8030 | +++ | – | – | – | – | – | 5,50 - 8,00 4,5 - 3,0 11,00 0,80 |
10°
