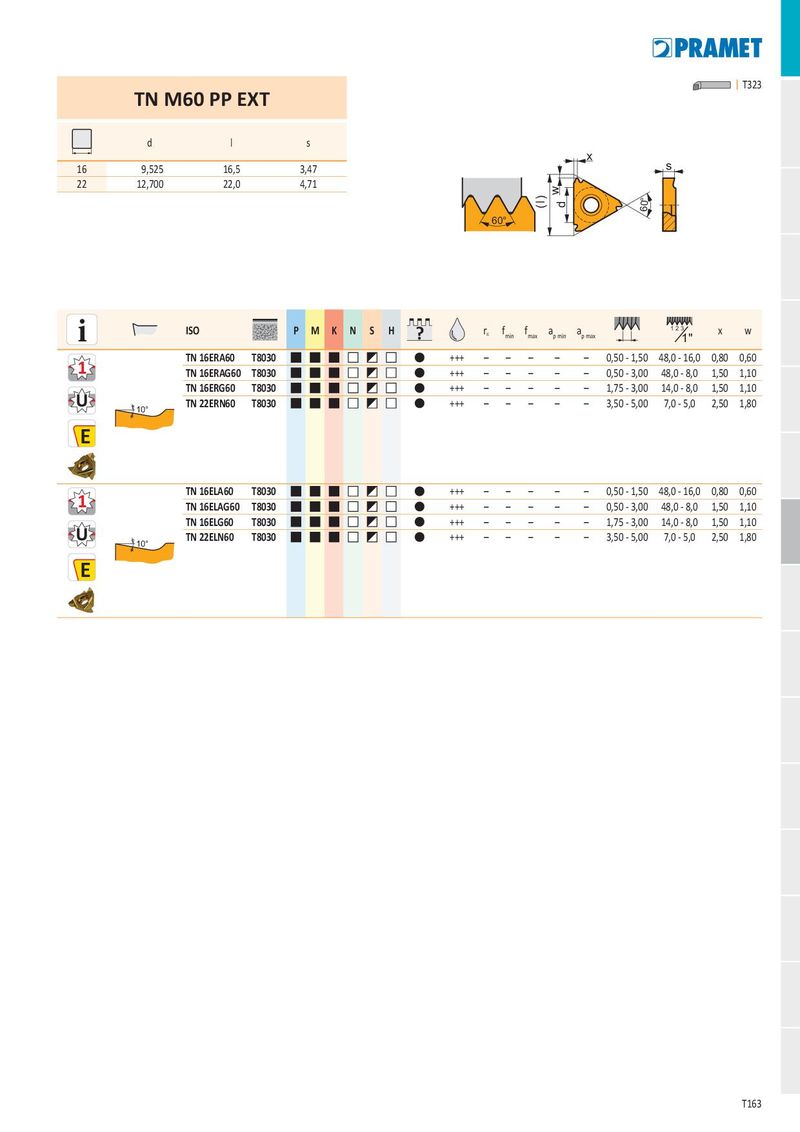

TN M60 PP EXT I T323
| TN M6 | 0 PP EXT | |||
| 16 | d 9,525 | l 16,5 | s 3,47 | x s |
| 22 | 12,700 | 22,0 | 4,71 | 60° 60° d (l) w |
| i | ISO | P M K N S H | ? | re | fmin | fmax | ap min | ap max | 1 2 3 1" | x | w | ||||
| 1 | TN 16ERA60 | T8030 | +++ | – | – | – | – | – | 0,50 - 1,50 | 48,0 - 16,0 | 0,80 | 0,60 | |||
| TN 16ERAG60 | T8030 | +++ | – | – | – | – | – | 0,50 - 3,00 | 48,0 - 8,0 | 1,50 | 1,10 | ||||
| TN 16ERG60 | T8030 | +++ | – | – | – | – | – | 1,75 - 3,00 | 14,0 - 8,0 | 1,50 | 1,10 | ||||
| E | 10° | TN 22ERN60 | T8030 | +++ | – | – | – | – | – | 3,50 - 5,00 | 7,0 - 5,0 | 2,50 | 1,80 | ||
| TN 16ELA60 | T8030 | +++ | – | – | – | – | – | 0,50 - 1,50 | 48,0 - 16,0 | 0,80 | 0,60 | ||||
| 1 | TN 16ELAG60 | T8030 | +++ | – | – | – | – | – | 0,50 - 3,00 | 48,0 - 8,0 | 1,50 | 1,10 | |||
| TN 16ELG60 | T8030 | +++ | – | – | – | – | – | 1,75 - 3,00 | 14,0 - 8,0 | 1,50 | 1,10 | ||||
| E | 10° | TN 22ELN60 | T8030 | +++ | – | – | – | – | – | 3,50 - 5,00 | 7,0 - 5,0 | 2,50 | 1,80 |
