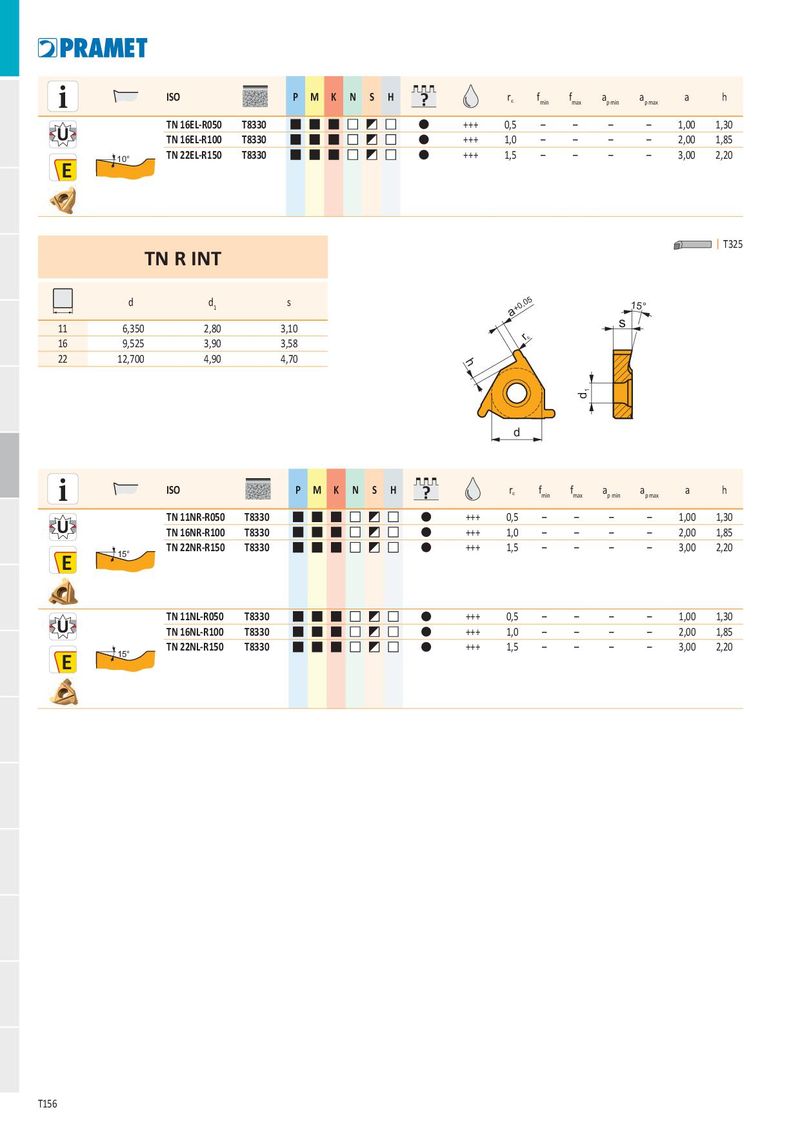

ISO P M K N S H r e f h i ? min f max a p min a p max a TN 16EL-R050 T8330 +++ 0,5 – – – – 1,00 1,30 TN 16EL-R100 T8330 +++ 1,0 – – – – 2,00 1,85 10° TN 22EL-R150 T8330 +++ 1,5 – – – – 3,00 2,20 E I T325 TN R INT d d 1 s +0,05 15° a s 11 6,350 2,80 3,10 r e 16 9,525 3,90 3,58 22 12,700 4,90 4,70 h 1 d d ISO P M K N S H r e f i ? min f max a p min a p max a h TN 11NR-R050 T8330 +++ 0,5 – – – – 1,00 1,30 TN 16NR-R100 T8330 +++ 1,0 – – – – 2,00 1,85 TN 22NR-R150 T8330 +++ 1,5 – – – – 3,00 2,20 15° E TN 11NL-R050 T8330 +++ 0,5 – – – – 1,00 1,30 TN 16NL-R100 T8330 +++ 1,0 – – – – 2,00 1,85 TN 22NL-R150 T8330 +++ 1,5 – – – – 3,00 2,20 15° E T156
