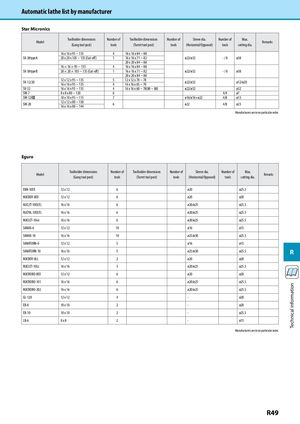

Automatic lathe list by manufacturer Star Micronics Toolholder dimensions Number of Toolholder dimensions Number of Sleeve dia. Number of Max. Model Remarks (Gang tool post) tools (Turret tool post) tools (Horizontal/Opposed) tools cutting dia. 16 x 16 x 95 ~ 135 4 16 x 16 x 84 ~ 88 SX-38typeA 20 x 20 x 105 ~ 135 (Cut-off) 1 16 x 16 x 71 ~ 82 ø22/ø32 -/8 ø38 20 x 20 x 84 ~ 88 16 × 16 × 95 ~ 135 4 16 x 16 x 84 ~ 88 SX-38typeB 20 × 20 × 105 ~ 135 (Cut-off) 1 16 x 16 x 71 ~ 82 ø22/ø32 -/8 ø38 20 x 20 x 84 ~ 88 12 x 12 x 95 ~ 135 5 12 x 12 x 70 ~ 78 SV-12/20 ø22/ø32 ø12/ø20 16 x 16 x 95 ~ 135 4 16 x 16 x 65 ~ 70 SV-32 16 x 16 x 95 ~ 135 4 16 x 16 x 60 ~ 78(80 ~ 88) ø22/ø32 ø32 SW-7 8 x 8 x 80 ~ 120 6 4/4 ø7 SW-12R 10 x 10 x 95 ~ 115 7 ø16/ø16+ø22 4/8 ø13 12 x 12 x 80 ~ 150 SW-20 6 ø22 4/8 ø23 16 x 16 x 80 ~ 144 Manufacturers are in no particular order. Eguro Toolholder dimensions Number of Toolholder dimensions Number of Sleeve dia. Number of Max. Model Remarks (Gang tool post) tools (Turret tool post) tools (Horizontal/Opposed) tools cutting dia. EBN-10EX 12 x 12 6 ø20 ø25.5 NUCBOY-8EX 12 x 12 6 ø20 ø20 NUCLET-10EX/EL 16 x 16 6 ø20/ø25 ø25.5 NUCPAL-10EX/EL 16 x 16 6 ø20/ø25 ø25.5 NUCLET-10vv 16 x 16 6 ø20/ø25 ø25.5 SANAX-6 12 x 12 10 ø16 ø15 SANAX-10 16 x 16 10 ø25/ø30 ø25.5 SANATURN-6 12 x 12 5 ø16 ø15 SANATURN-10 16 x 16 5 ø25/ø30 ø25.5 R NUCBOY-8LL 12 x 12 2 ø20 ø20 NUCLET-10LL 16 x 16 3 ø20/ø25 ø25.5 NUCROBO-8EX 12 x 12 6 ø20 ø20 NUCROBO-101 16 x 16 6 ø20/ø25 ø25.5 NUCROBO-202 16 x 16 6 ø20/ø25 ø25.5 Technical information GL-120 12 x 12 4 - ø20 EB-8 10 x 10 2 - ø20 EB-10 10 x 10 2 - ø25.5 LB-6 8x8 2 - ø15 Manufacturers are in no particular order. R49
