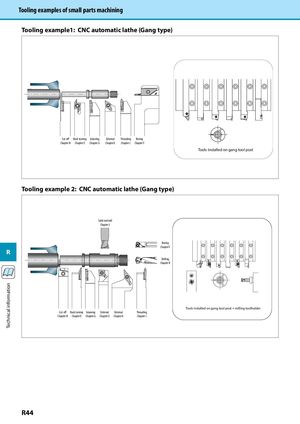

Tooling examples of small parts machining Tooling example1: CNC automatic lathe (Gang type) Cut-off Back turning Grooving External Threading Boring Chapter H Chapter E Chapter G Chapter E Chapter J Chapter F Tools installed on gang tool post Tooling example 2: CNC automatic lathe (Gang type) Solid end mill Chapter L Boring Chapter F R Drilling Chapter K Tools installed on gang tool post + milling toolholder Cut-off Back turning Grooving External External Threading Chapter H Chapter E Chapter G Chapter E Chapter E Chapter J R44 Technical information
