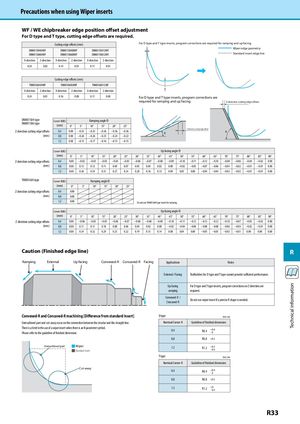

Precautions when using Wiper inserts WF / WE chipbreaker edge position offset adjustment For D type and T type, cutting edge offsets are required. Cutting edge offsets (mm) For D type and T type inserts, program corrections are required for ramping and up facing. Wiper edge geometry DNMX150404WF DNMX150408WF DNMX150412WF DNMX150604WF DNMX150608WF DNMX150612WF Standard insert edge line X-direction Z-direction X-direction Z-direction X-direction Z-direction 0.24 0.02 0.14 0.01 0.11 0.01 Cutting edge offsets (mm) TNMX160404WF TNMX160408WF TNMX160412WF X-direction Z-direction X-direction Z-direction X-direction Z-direction 0.24 0.01 0.16 0.00 0.11 0.00 For D type and T type inserts, program corrections are required for ramping and up facing. Z-direction cutting edge o sets DNMX1504 typeDNMX1506 type Corner-R(RE) Ramping angle θ(mm)0°5°10°15°20°25° Z-direction cutting edge o sets Z-direction cutting edge offsets 0.4 0.00 −0.34 −0.35 −0.36 −0.36 −0.36 θ θ (mm) 0.8 0.00 −0.26 −0.26 −0.25 −0.24 −0.22 1.2 0.00 −0.15 −0.17 −0.16 −0.15 −0.15 Corner-R(RE) Up facing angle θ (mm) 0° 5° 10° 15° 20° 25° 30° 35° 40° 45° 50° 55° 60° 65° 70° 75° 80° 85° 90° Z-direction cutting edge offsets 0.4 0.00 −0.02 −0.03 −0.03 −0.04 −0.05 −0.06 −0.07 −0.08 −0.09 −0.10 −0.11 −0.12 −0.10 −0.08 −0.06 −0.04 −0.02 0.00 (mm) 0.8 0.00 0.13 0.12 0.11 0.09 0.07 0.05 0.04 0.02 0.00 −0.02 −0.05 −0.07 −0.06 −0.04 −0.02 −0.01 −0.01 0.00 1.2 0.00 0.36 0.34 0.31 0.27 0.24 0.20 0.16 0.13 0.09 0.05 0.00 −0.04 −0.04 −0.03 −0.02 −0.01 −0.01 0.00 TNMX1604 type Corner-R(RE) Ramping angle θ (mm) 0° 5° 10° 15° 20° 25° Z-direction cutting edge offsets 0.4 0.00 (mm) 0.8 0.00 1.2 0.00 Do not use TNMX1604 type insert for ramping. Corner-R(RE) Up facing angle θ (mm) 0° 5° 10° 15° 20° 25° 30° 35° 40° 45° 50° 55° 60° 65° 70° 75° 80° 85° 90° Z-direction cutting edge offsets 0.4 0.00 −0.06 −0.05 −0.05 −0.06 −0.07 −0.08 −0.08 −0.09 −0.10 −0.11 −0.12 −0.13 −0.12 −0.10 −0.07 −0.05 −0.02 0.00 (mm) 0.8 0.00 0.11 0.11 0.10 0.08 0.06 0.04 0.02 0.00 −0.02 −0.04 −0.06 −0.08 −0.08 −0.06 −0.04 −0.02 −0.01 0.00 1.2 0.00 0.34 0.32 0.29 0.25 0.22 0.19 0.15 0.14 0.08 0.04 0.00 −0.05 −0.05 −0.03 −0.01 0.00 0.00 0.00 Caution (Finished edge line) R Ramping External Up facing Convexed-R Concaved-R Facing Applications Notes External / Facing Toolholders for D type and T type cannot provide sufficient performance. Up facing For D type and T type inserts, program corrections on Z direction are ramping required. Convexed-R /Concaved-R Do not use wiper insert if a precise R shape is needed. Convexed-R and Concaved-R machining [Difference from standard insert] D type Unit: mm Unmachined part and cut-away occur on the connection between the circular and the straight line. Nominal Corner-R Guideline of finished dimension There is a limit to the use of a wiper insert when there is an R parameter symbol.Please refer to the guideline of finished dimension0.4 R0.4 +0.4 - 0 0.8 R0.8 ±0.2 Unmachined part WiperStandard insert 1.2 R1.2 +0.3 - 0.4 T type Unit: mm Nominal Corner-R Guideline of finished dimension Cut-away 0.4 R0.4 +0.4 - 0 0.8 R0.8 ±0.2 1.2 R1.2 +0 - 0.4 R33 Technical information
