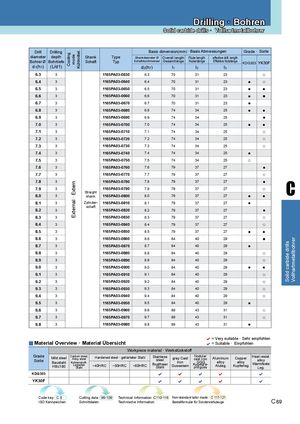

Каталог ZCC-CT сверла монолитные - страница 89

Drilling · Bohren
Solid carbide drills · Vollhartmetallbohrer

Drill Drilling Basic dimension(mm) · Basis Abmessungen Grade · Sorte


Kühlmittel.
Cooling
diameter depth

mode
Shank Type Shankdiameter Ø Overall length Flute length effective drill. length
Bohrer Ø Bohrtiefe Schaft Typ Schaftdurchmesser Gesamtlänge Nutenlänge Effektive Nutzlänge
KDG303 YK30F
d1(h7) (L/d1) d2(h7) l1 l2 l3
6.3 3 1165PA03-0630 6.3 70 31 23 ○
6.4 3 1165PA03-0640 6.4 70 31 23 ● ○
6.5 3 1165PA03-0650 6.5 70 31 23 ● ●
6.6 3 1165PA03-0660 6.6 70 31 23 ● ●
6.7 3 1165PA03-0670 6.7 70 31 23 ●
6.8 3 1165PA03-0680 6.8 74 34 25 ● ●
6.9 3 1165PA03-0690 6.9 74 34 25 ●
7.0 3 1165PA03-0700 7.0 74 34 25 ● ●
7.1 3 1165PA03-0710 7.1 74 34 25 ○
7.2 3 1165PA03-0720 7.2 74 34 25 ○
7.3 3 1165PA03-0730 7.3 74 34 25 ○
7.4 3 1165PA03-0740 7.4 74 34 25 ●
7.5 3 1165PA03-0750 7.5 74 34 25 ○
7.6 3 1165PA03-0760 7.6 79 37 27 ●
7.7 3 1165PA03-0770 7.7 79 37 27 ○

C
7.8 3 1165PA03-0780 7.8 79 37 27 ●
External · Extern


7.9 3 1165PA03-0790 7.9 79 37 27 ○
Straight
8.0 3 shank 1165PA03-0800 8.0 79 37 27 ● ●
8.1 3 Zylinder- 1165PA03-0810 8.1 79 37 27 ●
schaft
8.2 3 1165PA03-0820 8.2 79 37 27 ●
8.3 3 1165PA03-0830 8.3 79 37 27 ○
8.4 3 1165PA03-0840 8.4 79 37 27 ○
8.5 3 1165PA03-0850 8.5 79 37 27 ● ●
8.6 3 1165PA03-0860 8.6 84 40 29 ●


Vollhartmetallbohrer
Solid carbide drills
8.7 3 1165PA03-0870 8.7 84 40 29 ●
8.8 3 1165PA03-0880 8.8 84 40 29 ○
8.9 3 1165PA03-0890 8.9 84 40 29 ○
9.0 3 1165PA03-0900 9.0 84 40 29 ● ●
9.1 3 1165PA03-0910 9.1 84 40 29 ○
9.2 3 1165PA03-0920 9.2 84 40 29 ○
9.3 3 1165PA03-0930 9.3 84 40 29 ○
9.4 3 1165PA03-0940 9.4 84 40 29 ○
9.5 3 1165PA03-0950 9.5 84 40 29 ●
9.6 3 1165PA03-0960 9.6 89 43 31 ○
9.7 3 1165PA03-0970 9.7 89 43 31 ○
9.8 3 1165PA03-0980 9.8 89 43 31 ●

= Very suitable · Sehr empfohlen
Material Overview · Material Übersicht = Suitable · Empfohlen
Workpiece material ∙ Werkstückstoff
Grade Mild steel
Carbon steel, Hardened steel · gehärteter Stahl Stainless Nodular Heat resist.
Alloy steel steel gray Cast cast iron Aluminum Copper
Sorte alloy
Baustahl Kohlenstoff-, iron GGG alloy alloy Warmfeste
Legierter ~40HRC ~50HRC ~60HRC Rostfreier Gusseisen Kugelgra- Aluleg. Kupferleg.
HB≤180 Stahl Stahl phitguss Leg.
KDG303     
YK30F     
Code key C 8 Cutting data 96-109 Technical Information C110-116 Non-standard tailor made C 117-121
ISO Kennzeichen Schnittdaten Technische Information Bestellformular für Sonderwerkzeuge C 89
